1. Equipment Advantages

(1) It can both undertake formula scaling-up tests and small-scale production.

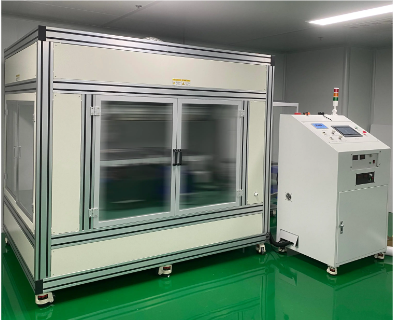

Based on the experimental level of MN60, MN80 has been upgraded to a continuous production system with a winding and unwinding device, which can directly produce rolled materials, avoiding the embarrassment that traditional small-scale experimental equipment cannot be connected to mass production.

(2) 800mm width + 500 needles, doubling the efficiency

The width of MN80 has been upgraded to 800mm (MN60 is 600mm), and it is designed with more than 500 needles.The single production area is larger, and the unit cost is lower.

(3) Temperature and humidity are controllable, and continuous production with winding and unwinding can be carried out for 24 hours without interruption.

Equipped with a winding and unwinding system, it supports continuous roll-to-roll production. Say goodbye to hand-made sheet materials in the laboratory. It is suitable for fields that require long-sized samples, such as filtration materials, medical materials, and multifunctional fabrics.

(4) Low investment for quickly verifying the market

The rolled samples of MN80 can be directly sent to the brand party for testing without waiting for the production line to be deb ed – one step ahead in seizing orders.

(5) Undertake small orders in small-scale trials and expand production after running through customers.

One MN80 is equivalent to small-batch production, which can quickly conduct market verification, accumulate the number of customers, and there is no pressure on capital.

(6) Modular design → seamless connection with the production line in the future

MN80 is a'mini production line'.You can make samples today and turn it into a mass production machine by adding some money tomorrow – the equipment will not be scrapped, and the investment will not be wasted.

2. Equipment Features

(1) Precise and Controllable Scientific Research-level Performance

High-voltage power supply: Independent control of positive and negative dual high voltages, with a current ≤ 1mA, ensuring the uniformity of fiber diameter (CV value < 5%).

Intelligent liquid supply system: An independent liquid supply cart adopts a precise pressurized liquid supply control system. The flow rate is continuously adjustable from 0 to 3000ml/h, driven by a servo motor with an accuracy of ± 0.5%.

Environmental control: An integrated dehumidification system (humidity 40% ± 3% RH) in a non-heating dehumidification mode ensures the stability of electrospinning.

(2) Design Genes for Industrialization

< 500-needle high-density array: 304 stainless steel needles, which are easy to maintain. The maximum electrospinning width is 800mm.

Automatic collection system: Continuous collection by a negative electrode conveyor belt, and optional roll-to-roll (R2R) process is supported.

Modular lifting platform: A four-linkage worm gear and worm structure with a positioning accuracy of ± 0.03mm, which can be adjusted to different thicknesses of base materials and different electrospinning distances.

(3) Intelligence and Safety

10-inch touch screen central control: Integrated with parameter setting, real-time monitoring, data storage and alarm functions, and supports the tracing of historical data.

Multiple safety protections: Short-circuit/leakage protection, one-key emergency stop, remote after-sales access, in line with industrial equipment safety standards.

3. Services and Support

(1) Free technical training: Guidance on equipment operation and optimization of process parameters.

(2) Customized development: Adjust the number of needles, the type of receiving device, etc. according to requirements.

(3) Global after-sales network: 12-month warranty, and respond to fault problems within 48 hours.
