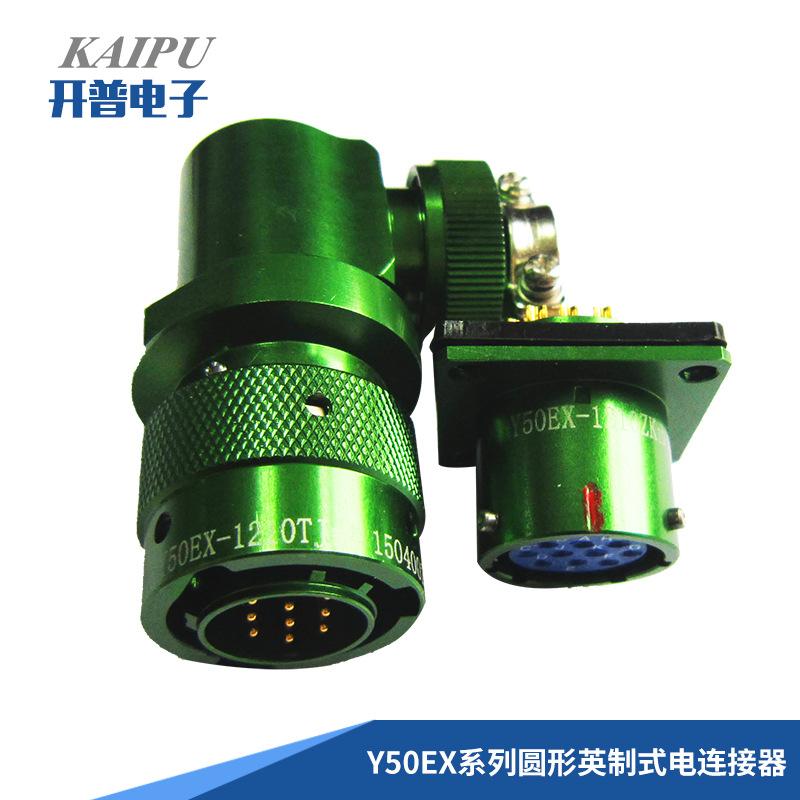

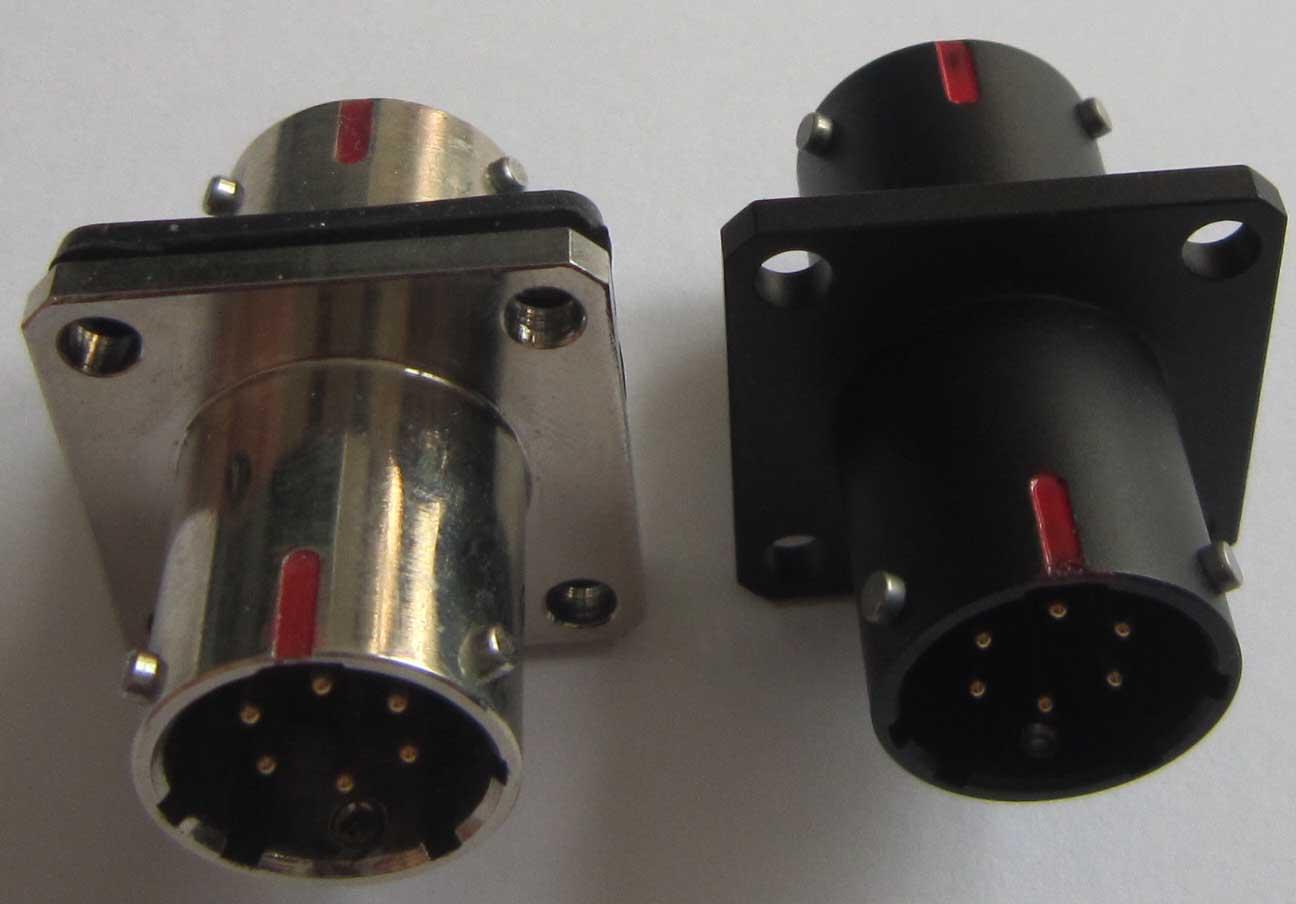

Y50EX series circular connectors are inner pin locked type for British system,military quality,featuring quick connection and separation,small volume,light weight,good sealing and anti-tensile performance.The type of terminations include soldered and crimped,shielded and nonshielded housing,straight and bent cable outlet ends,ordinary,high vacuum and high pressure sealing.It's specification meet the requirements of GJB101A, GJB598A,MIL-C-26482G standard.They are widely used for energy and signal connections in strategic and tactical systems and field operations.
Product ordering
Y50 E X-10 06 Z J 10
1 2 3 4 5 6 7 8
1.Product name:Y50 series circular connectors
2.Type: E:British system
3.Structure: X:ordinary rubber sealing
4.Shell: 08,10,12,14,16,18,20,22,24
5.Contacts: 3-61
6.Type: T:plug, Z:receptacle:ZS:Thru bulkhead receptable
7.Contacts type:J:pin,K:socket,S:panel
8.Receptacle: 10:square flange mounting,10-2:with cable,11:circular flange,14:screw connection
Plug:1: grounded pressure,2: Cable clipper,4:anti-tensile shell,5_angled,6:water proof cable shell

.Technical characteristics
Mould:Tested as per provisions in 4.16 of GJB598A;Saline fog:Tested as per provisions in 4.17 of GJB598A;Rainproof:Tested as per provisions in 4.15 of GJB598A.
