| Model: | FQX14 |
|---|---|
| Brand: | kp |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electric Parts & Materials |
| Label: | Connectors , cable connectors , water proof |
| Price: |
¥60
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: |  | Last Online:27 Mar, 2024 |

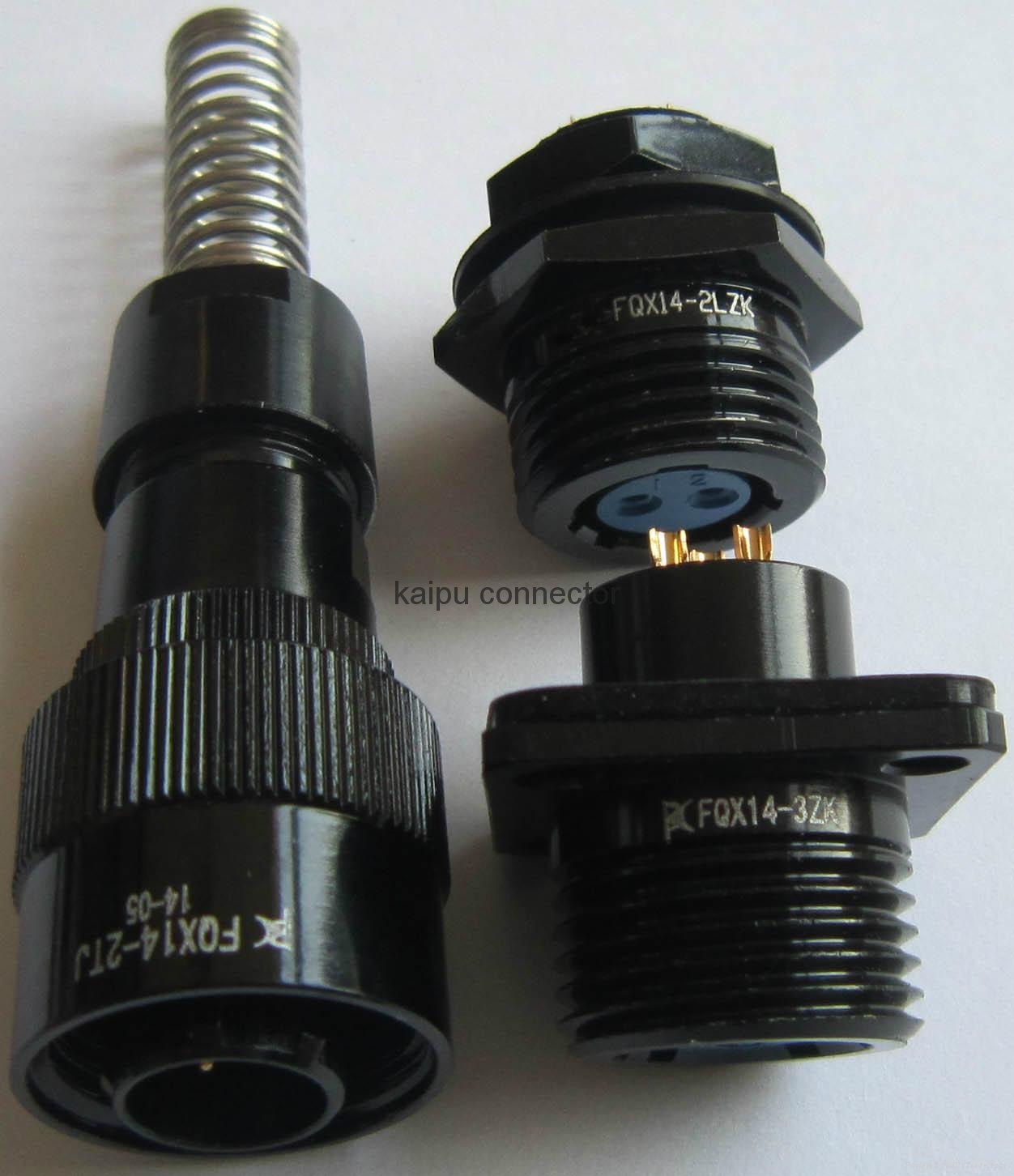

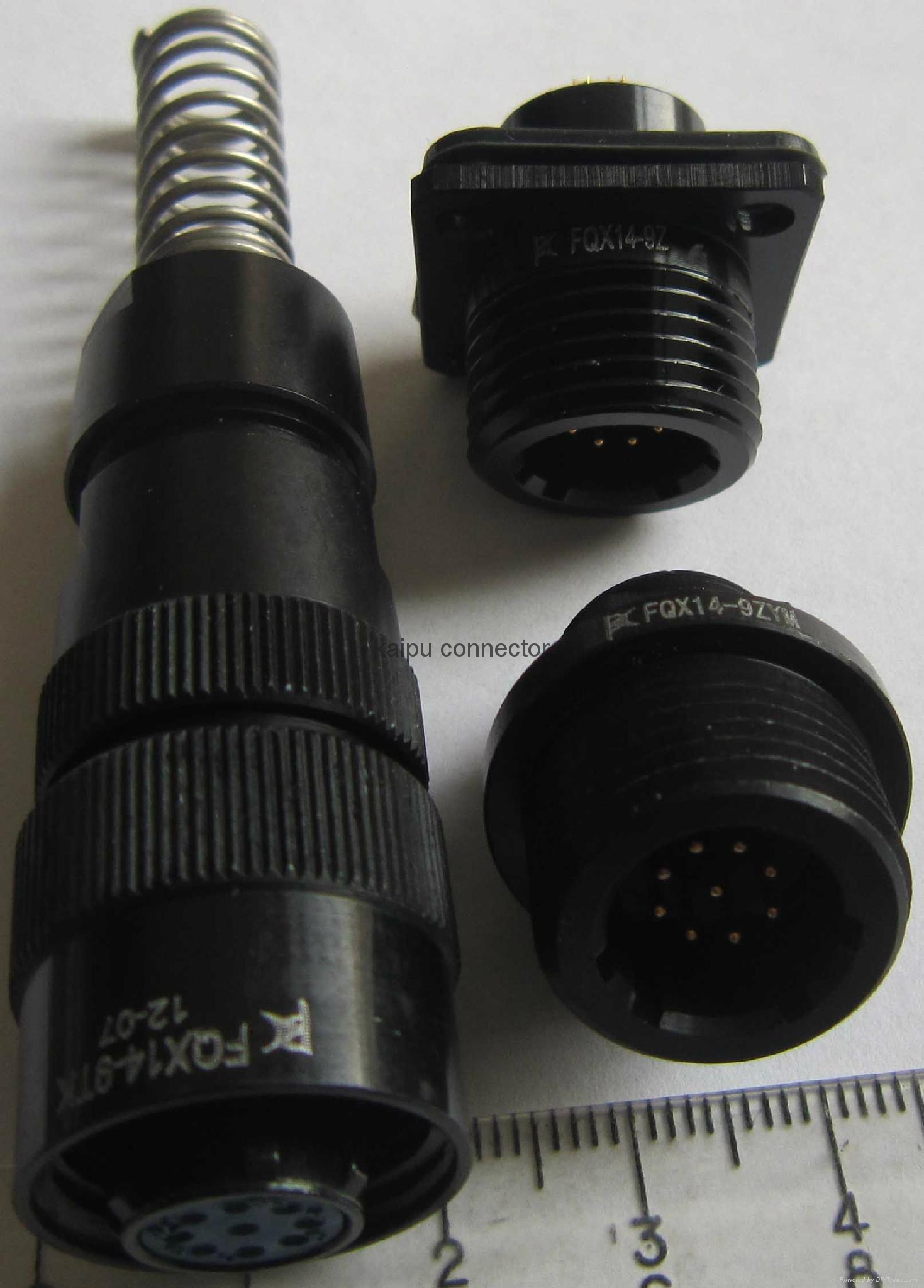

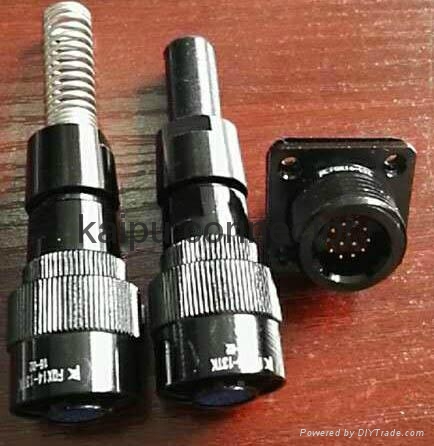

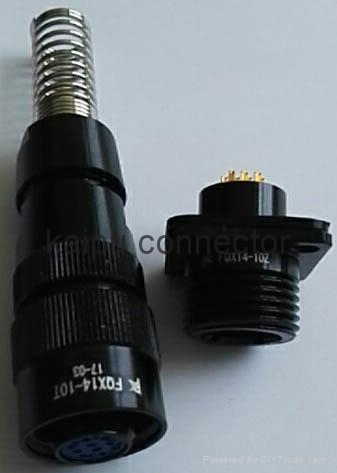

FQX14 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.Meet CE,RoHs.Thread connect with the plug and receptacle.
1 2 3 4 5
1. Name of series: FQX14
2.Number of contacts: 2,3,4,5,6,7,9,10,13
3.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,

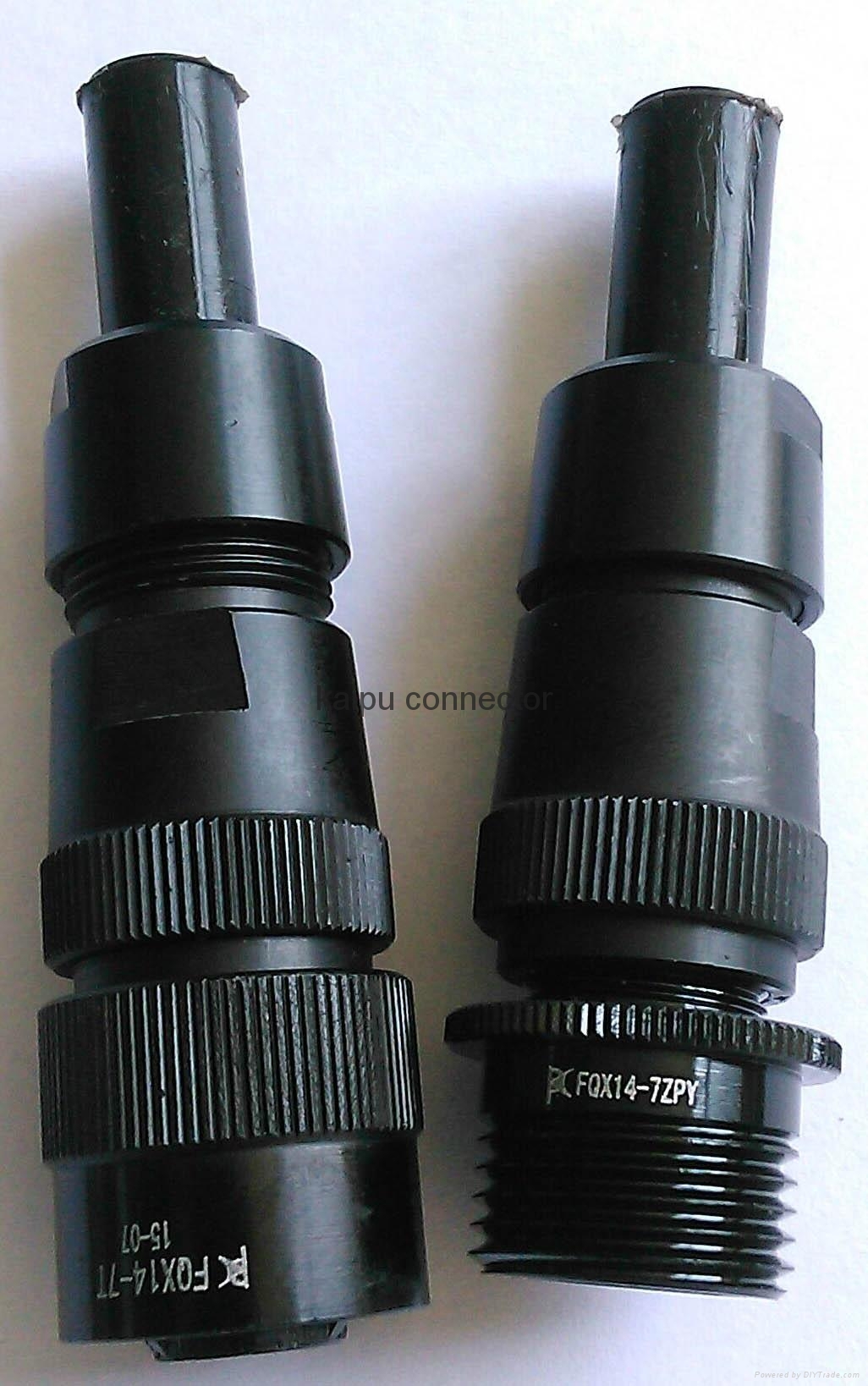

Z2:Receptacle with O ring,ZY: circular recptacle, ZPY: circular cable receptacle
4. Type of contacts: K:socket, J:pin
5. Wire gauge: 5,6,7,8,9
|
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
|||
|
-55°C~+85°C |
(90~96)% at40°C |
4.4KPa |
10~200Hz,150m/s² |
490m/s² |
|||
|
Current |
Voltage |
Contact resistance |
Endurance |
||||
|
2A~5A |
250V |
≤10mΩ |
500cycles |
||||
|
10A-25A |
400V |
≤5mΩ |
500cycles |
||||
|
Environment |
Voltage proof |
Insulation resistance |
|
Normal |
1200V |
≥1000MΩ |
|
High temperature |
1000V |
≥500MΩ |
|
Moisture |
800V |
≥100MΩ |
|
Low pressure |
400V |
- |
| Specifications: | Product Ordering FQX14 — 7 T K —8 1 2 3 4 5 1. Name of series: FQX14 2.Number of contacts: 2,3,4,5,6,7,9,10,13 3.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle, Z2:Receptacle with O ring,ZY: circular recptacle, ZPY: circular cable receptacle 4. Type of contacts: K:socket, J:pin 5. Wire gauge: 5,6,7,8,9 Technical characteristics The connector is allowed to submerged in 1m deep water for 60min.(Ip68) |
|---|---|
| Advantages: | FQX14 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.Meet CE,RoHs.Thread connect with the plug and receptacle. Technical characteristics The connector is allowed to submerged in 1m deep water for 60min.(Ip68) |
| Export Markets: | World |
| Pricing: | USD$9 |
| Payment Details: | T/T,or West union |
| Min Order: | 5 |
| Ship Date: | 21 days |
| Standard Met: | IP68 |
