| Model: | YD20,YD28 |
|---|---|
| Brand: | KP |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electric Parts & Materials |
| Label: | wire connectors , power connectors , electrical connector |
| Price: |
¥25
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:10 Aug, 2023 |
characteristics
1. The dimesions of YD is same as P series.
2. More safty: Have a earth pin,When the plug connect with the receptacle,the earth pin with connect first then others.when they dismiss,the earth pin will dismiss later;
3. Rain proof, IP54;
4. Dust cap of plug and receptacle,protact the connector;
5. The metal shell is connecting with the earth pin;
6. Back shell can connect with cable or metal tube。
YD 20 J 3 ZM P
1 2 3 4 5 6
1. Name of series: YD series circular connectors
2.Shell size: 20,28
3.Type of contact: J:pin, K:socket

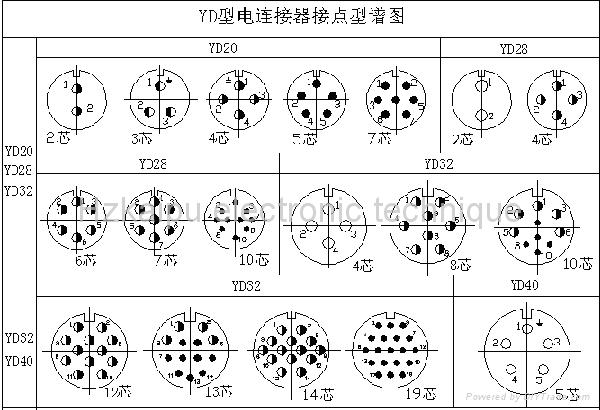

4.Number of contacts: 3: mean 3 contacts
5.Type of connector:T:Plug,Z:receptacle,ZM:sealing receptacle
6.Back shell: P:Meet straight metal tube;Q:Meet straight cable;R:Meet angle metal tube;S:Meet angle cable;
|
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
Endurance |
|
-45℃~ +85℃ |
93% At 40+2℃ |
100KPa~2 KPa |
10~500Hz,100m/s² |
40-80cycles/Min, 400m/s² |
500cycles |
|
Environment |
Voltage proof |
Insulation resistance |
|
Normal |
2000V |
≥2000MΩ |
|
Contacts diameter |
Current |
Voltage(pressure) |
Contact resistance |
|||
|
100Kpa |
8.5KPa |
4.4KPa |
2KPa |
|||
|
Ø1.5mm |
10A |
450V |
250V |
175V |
150V |
≤2.5mΩ |
|
Ø2.5mm |
25A |
≤1mΩ |
||||
|
Ø3.5mm |
50A |
≤0.5mΩ |
||||
|
Ø5.5mm |
100A |
≤0.3mΩ |
||||
|
Shell to Shell |
≤2 mΩ |
|||||
The numer of current of contacts lose value
|
Number of contacts |
1-3 |
4-10 |
11-20 |
21-30 |
31-40 |
41-50 |
51- |
|
Down % |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
| Specifications: | characteristics 1. The dimesions of YD is same as P series. 2. More safty: Have a earth pin,When the plug connect with the receptacle,the earth pin with connect first then others.when they dismiss,the earth pin will dismiss later; 3. Rain proof, IP54; 4. Dust cap of plug and receptacle,protact the connector; 5. The metal shell is connecting with the earth pin; 6. Back shell can connect with cable or metal tube。 Product Ordering YD 20 J 3 ZM P 1 2 3 4 5 6 1. Name of series: YD series circular connectors 2.Shell size: 20,28 3.Type of contact: J:pin, K:socket 4.Number of contacts: 3: mean 3 contacts 5.Type of connector:T:Plug,Z:receptacle,ZM:sealing receptacle 6.Back shell: P:Meet straight metal tube;Q:Meet straight cable;R:Meet angle metal tube;S:Meet angle cable; |
|---|---|
| Advantages: | YD series circular rain proof connectors are used extensively in line connections between electrical equipment,various instruments and meters. It meet GB5226, They have the features of small volume,light weight,convenient application,high durability of pl ing and unpl ing, Square threaded coupling.IP54 protection. It is the ideal product of a new generation to replace the old P series connectors. characteristics 1. The dimesions of YD is same as P series. 2. More safty: Have a earth pin,When the plug connect with the receptacle,the earth pin with connect first then others.when they dismiss,the earth pin will dismiss later; 3. Rain proof, IP54; 4. Dust cap of plug and receptacle,protact the connector; 5. The metal shell is connecting with the earth pin; 6. Back shell can connect with cable or metal tube。 |
| Export Markets: | WORLD |
| Pricing: | 25RYAN RMB |
| Payment Details: | T/T |
| Min Order: | 10 |
| Ship Date: | 3 days |
| Standard Met: | GB5226 |
