| Model: | FQC18 |
|---|---|
| Brand: | KP |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electric Parts & Materials |
| Label: | water proof , connectors , water tight |
| Price: |
¥88
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: |  | Last Online:04 Nov, 2023 |

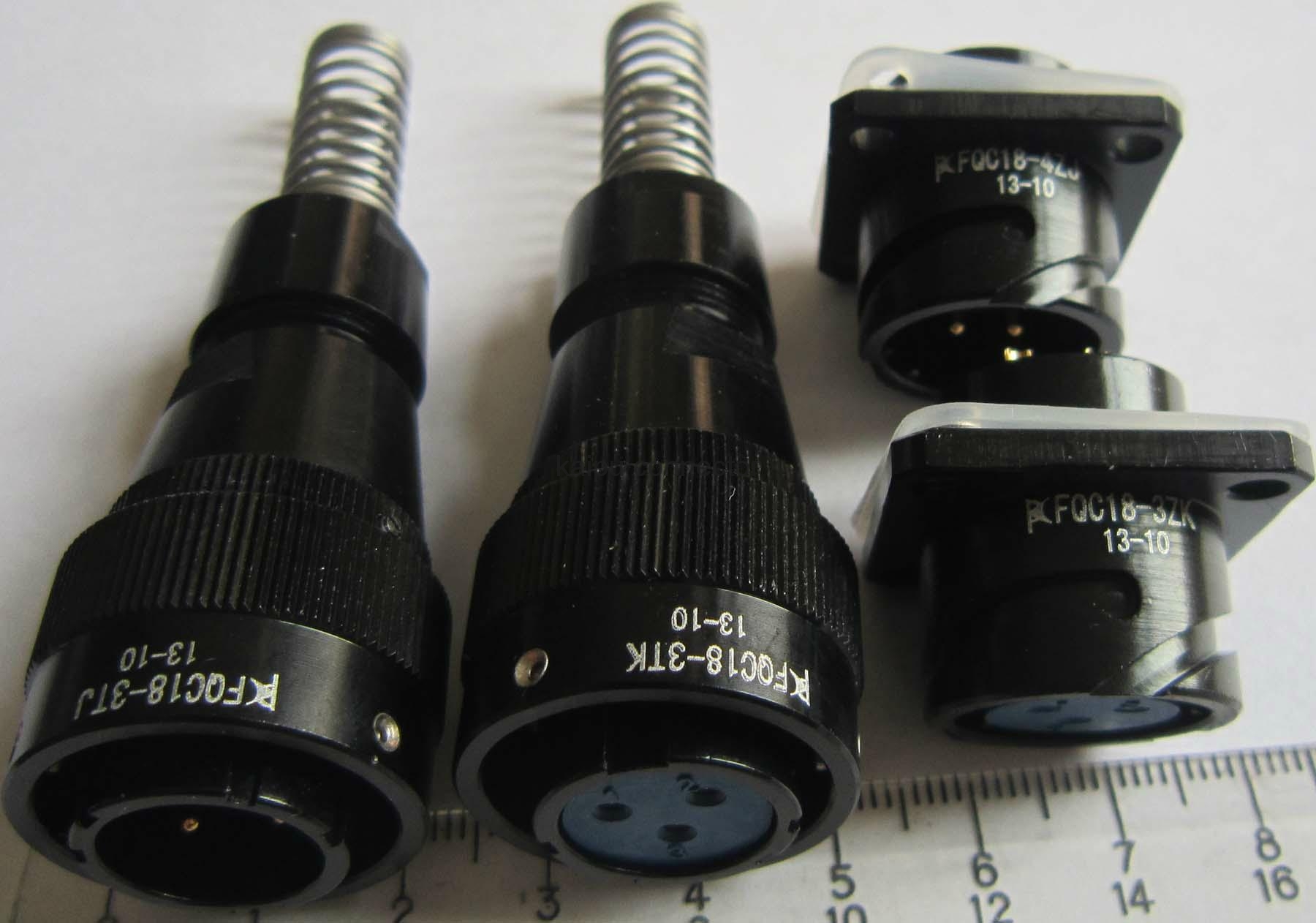

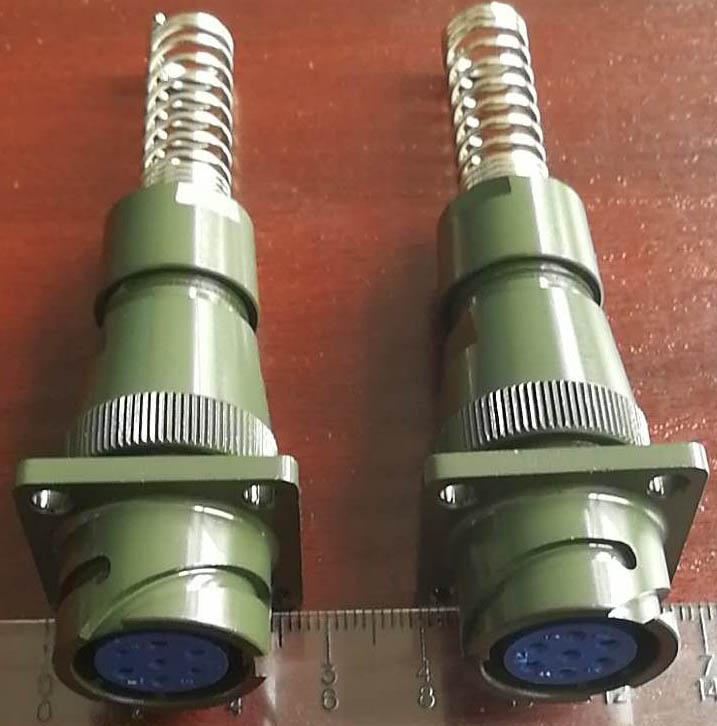

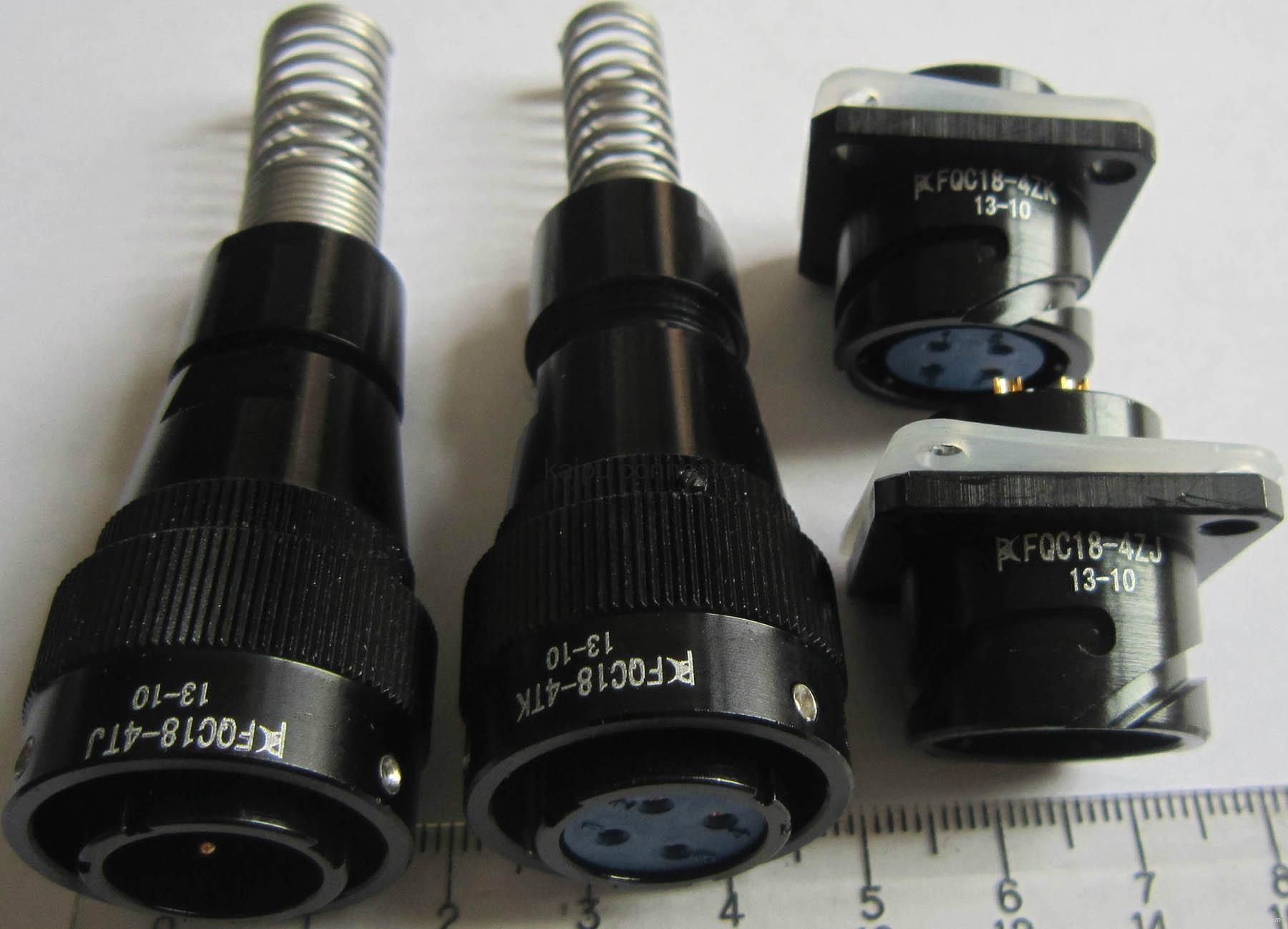

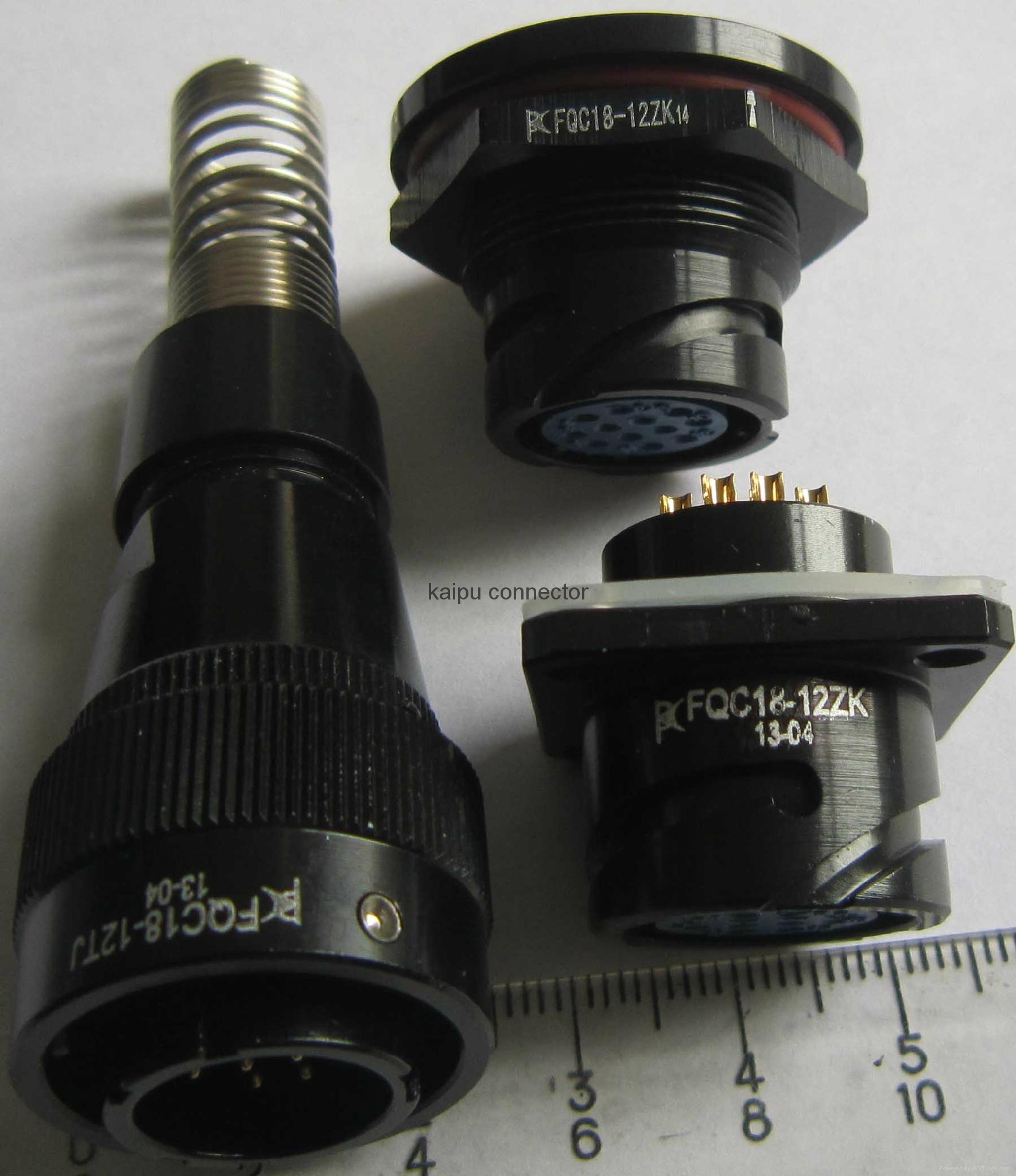

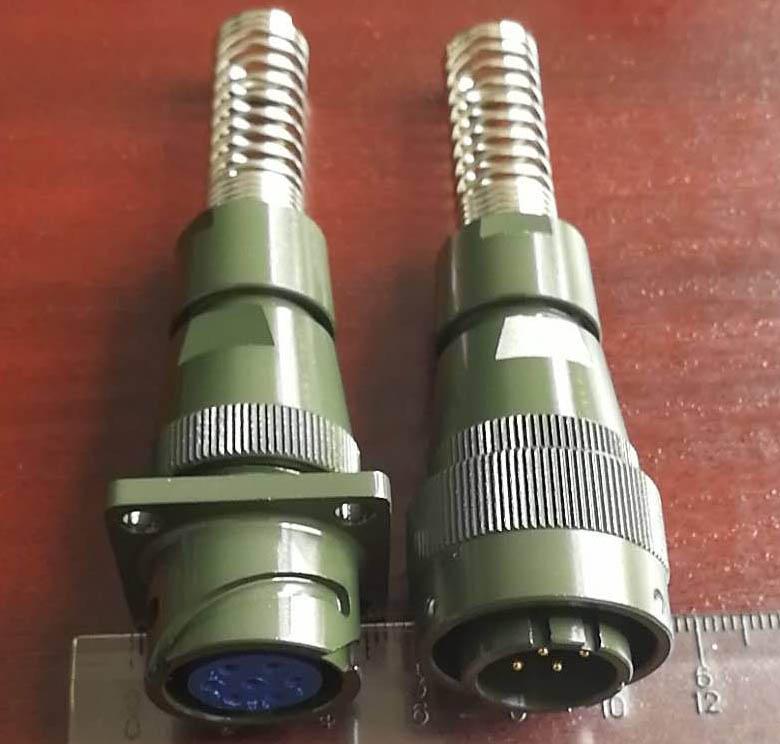

FQC series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.Meet CE,RoHs.It can be interchanged with FQ series.
1 2 3 4 5 6
1. Name of series FQC
2.Shell size : 18
3.Number of contacts: 1,2,3,4,5,6,7,12
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket, J:pin
6. Wire gauge: 6,7,8,9,10,12
|
Temperature |
Relative humidity |
Atmosphere |
Vibration |
Shock |
|||
|
-55°C~+85°C |
(90~96)% at40°C |
4.4KPa |
10~200Hz,150m/s² |
490m/s² |
|||
|
Current |
Voltage |
Contact resistance |
Endurance |
||||
|
2A~5A |
250V |
≤10mΩ |
500cycles |
||||
|
10A-25A |
400V |
≤5mΩ |
500cycles |
||||
|
Environment |
Voltage proof |
Insulation resistance |
|
Normal |
1200V |
≥1000MΩ |
|
High temperature |
1000V |
≥500MΩ |
|
Moisture |
800V |
≥100MΩ |
|
Low pressure |
400V |
- |
| Specifications: | Product Ordering FQC 18 — 7 T K —8 1 2 3 4 5 6 1. Name of series FQC 2.Shell size : 18 3.Number of contacts: 1,2,3,4,5,6,7,12 4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle, Z2:Receptacle with O ring,ZY: circular recptacle 5. Type of contacts: K:socket, J:pin 6. Wire gauge: 6,7,8,9,10,12 Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67) |
|---|---|
| Advantages: | FQC series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.Meet CE,RoHs.It can be interchanged with FQ series. Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67) |
| Export Markets: | world |
| Pricing: | usd$12.9 |
| Payment Details: | T/T,or West union |
| Min Order: | 5 |
| Ship Date: | 28 days |
| Standard Met: | IP67 |
