| Model: | DNC-2040N10 |
|---|---|
| Brand: | xingduomi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | - |
| Price: |
US $39000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 May, 2025 |
Today we are going to introduce the CNC gantry automatic tool changing machine of Guangdong multi-meter intelligent equipment. The machine tool body of this CNC gantry type automatic tool changing machine adopts a widening, thickening and aggravating moving beam gantry type structure, and the whole bed passes through high temperature tempering to stress, making the machine rigidity, better stability and small vibration.
X axis of CNC gantry automatic tool changing machine We use double drive transmission, with heavy load linear slide, with imported helical rack, double sets of transmission mechanism, so that the machine runs smoothly and moves faster.
|
Machine type |
DNC-2040N10 |
|

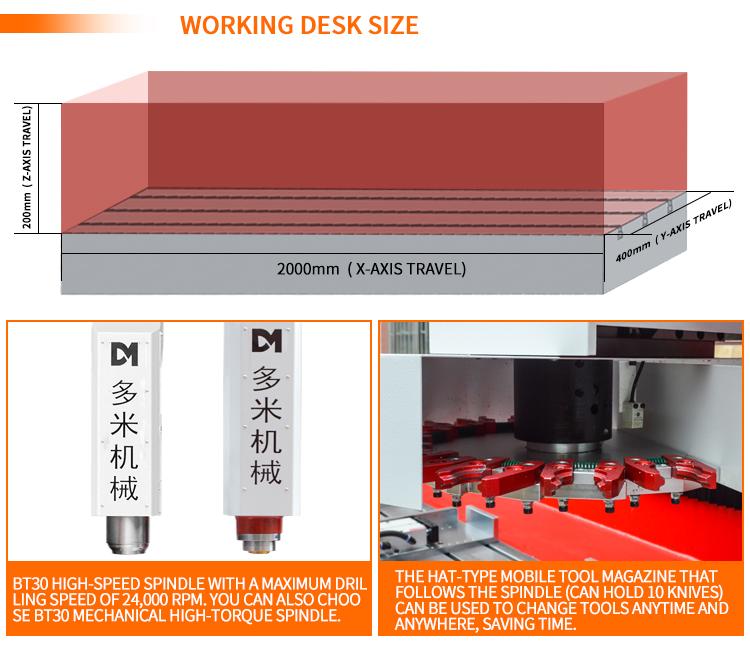

XYZ three-axis machining stroke0 |
X2000mm Y400mm Z200mm(Itinerary can be customized) |
|
Spindle speed |
3000~24000rpm(Can be selected according to demand) |
|
Spindle taper hole |
BT30 |
|
Spindle power |
5.5~7.5KW |
|
X axis moving speed |
30m/min~60m/min |
|
Y axis moving speed |
25m/min |
|
Z axis moving speed |
25m/min |
|
Borehole diameter range |
1~20mm |
|
Tapping range |
M2~M16 |
|
Chamfer range |
1~20mm |
|
Tool magazine |
Automatic tool change (10 knives) |
|
Repeated positioning accuracy |
±0.02mm |
|
Table size |
2000*380mm |
|
T-slot size/number |
Top width 13 x bottom width 20 x 3 pieces |
|
Programming mode |
CAD file import/computer programming/manual programming |
|
System program storage capacity |
About 10,000 |
|
System external signal control |
support |
|
Operating voltage |
AC 380V/50HZ |
|
Machine weight |
Approx. 2100KG |
|
Floor space |
4500*2000*2000mm |
| Payment Terms: | TT |
|---|---|
