| Model: | DHM-2030DT |
|---|---|
| Brand: | xingduomi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | - |
| Price: |
US $28000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 May, 2025 |

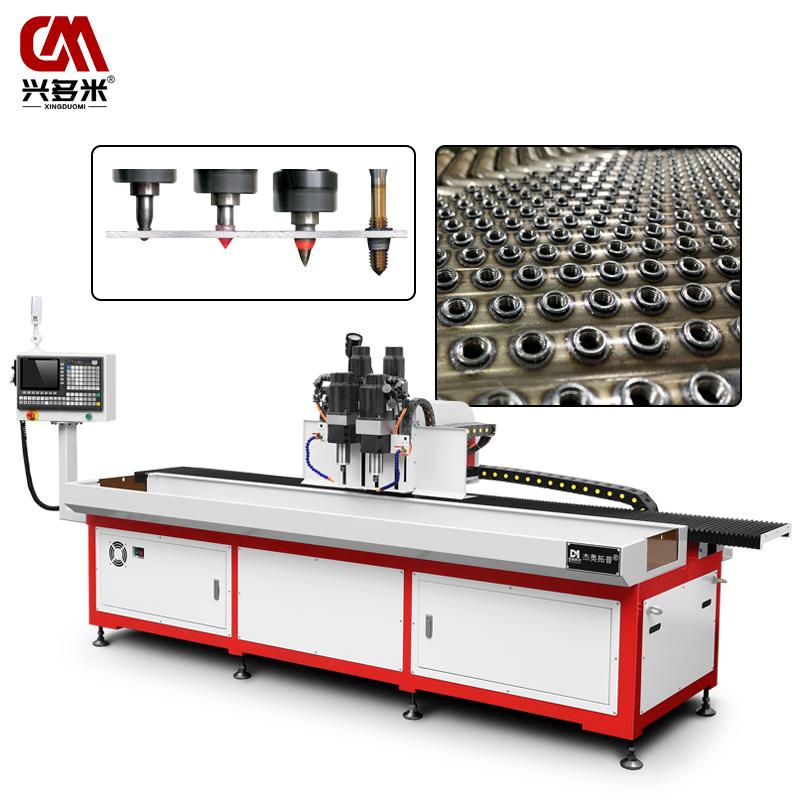

This is a CNC drilling and tapping equipment suitable for friction stretch drilling and tapping of thin-walled products. The effective processing stroke is 2000mm on the X axis, 300mm on the Y axis, and 200mm on the Z axis. The dual spindle combination enables the simultaneous completion of hot melt drilling and tapping.

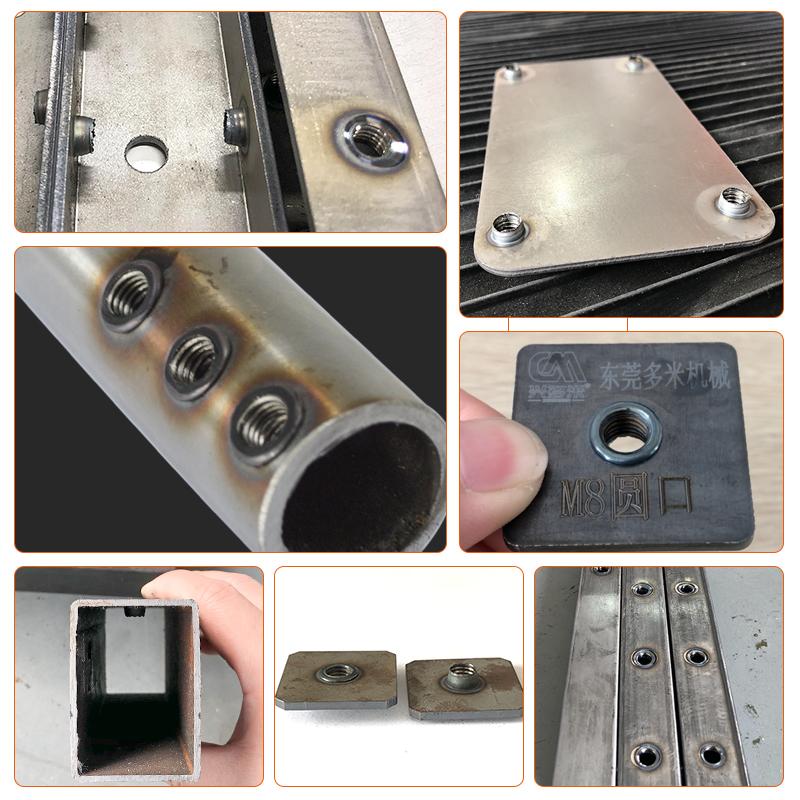

The drilling capacity of the equipment is between 1-16mm in diameter, which is suitable for flow drilling and tapping of pipe products or plate products. In addition, this equipment can also be used for milling or engraving.
|
Machine type |
DHM-2030DT |
|
XYZ three-axis machining stroke0 |
X2000mm Y300mm Z200mm |
|
Spindle speed |
100~24000rpm(Can be selected according to demand) |
|
Spindle taper hole |
ER20 |
|
Spindle power |
0.55~3.0KW |
|
X axis moving speed |
30m/min~60m/min |
|
Y axis moving speed |
25m/min |
|
Z axis moving speed |
25m/min |
|
Borehole diameter range |
1~12mm |
|
Tapping diameter range |
M2~M12 |
|
Chamfer range |
1~20mm |
|
Tool magazine |
Manual tool change |
|
Repeated positioning accuracy |
±0.02mm |
|
Table size |
2000*280mm |
|
Programming mode |
CAD file import/computer programming/manual programming |
|
System program storage capacity |
About 10,000 |
|
System external signal control |
support |
|
Operating voltage |
AC 220V/50HZ |
|
Machine weight |
Approx. 1600KG |
|
Floor space |
3500*1500*1700mm |
| Payment Terms: | TT |
|---|---|
