| Model: | DNC-1003D(R1) |
|---|---|
| Brand: | xingduomi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | - |
| Price: |
US $22000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 May, 2025 |
Today we will talk about our company's minimum stroke of high-speed CNC fine hole drilling machine, the left and right stroke is 400*300mm, the height is 120mm.

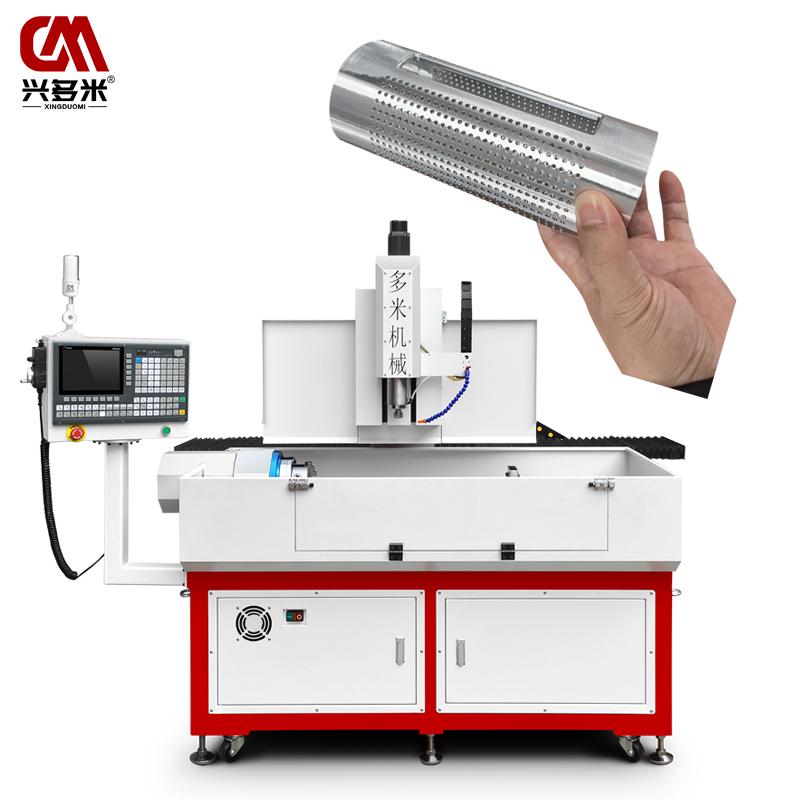

Our high-speed CNC small hole drilling machine selects a high-speed spindle of 60,000 RPM, specially for holes within 0.2-3 mm, and then we can pneumatic tool change, you can press the button here can be relaxed, it is very convenient to change the tool. Then you can also see that our high-speed CNC small hole drilling machine is added a small fourth axis, which is convenient to do round or square tubes, and can be rotated 360 degrees to drill.
|
Machine type |
DNC-1003D(R1) |
|
XYZ three-axis machining stroke0 |
X1000mm Z200mm A360° |
|
Spindle speed |
1500~24000rpm(Can be selected according to demand) |
|
Spindle taper hole |
ER20 |
|
Spindle power |
0.55~3.0KW |
|
X axis moving speed |
30m/min~60m/min |
|
Y axis moving speed |
25m/min |
|
Z axis moving speed |
25m/min |
|
Borehole diameter range |
1~20mm |
|
Tapping diameter |
M2~M14 |
|
Clamping diameter of rotating shaft |
10~200mm(Selection on demand) |
|
Tool magazine |
Manual tool change |
|
Repeated positioning accuracy |
±0.02mm |
|
Programming mode |
CAD file import/computer programming/manual programming |
|
System program storage capacity |
About 10,000 |
|
System external signal control |
support |
|
Operating voltage |
AC 220V/50HZ |
|
Machine weight |
Approx. 1000KG |
|
Floor space |
2200*1500*1700mm |
| Payment Terms: | TT |
|---|---|
