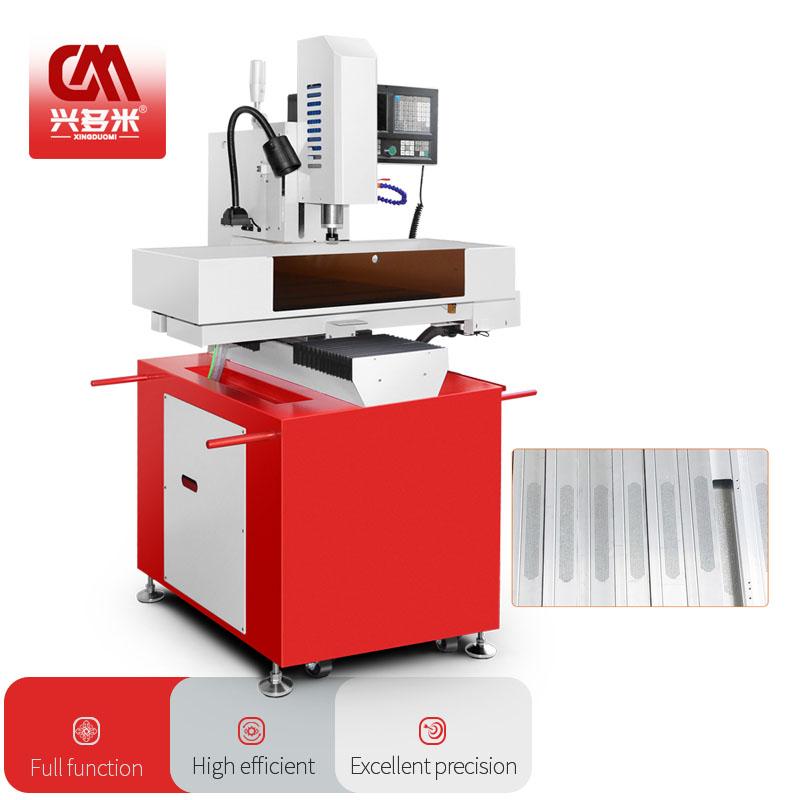

| Model: | DNC-430HD |
|---|---|
| Brand: | Duomi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | - |
| Price: |
US $15000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 May, 2025 |
|
Machine type |
DNC-430HD |
|
XYZ three-axis machining stroke0 |
X400mm Y300mm Z120mm |
|
Spindle speed |
3000~60000rpm(Can be selected according to demand) |
|
Spindle taper hole |
Collet reducer sleeve |
|
Spindle power |
0.55~3.0KW |
|
X axis moving speed |
30m/min~60m/min |
|
Y axis moving speed |
25m/min |
|
Z axis moving speed |
25m/min |
|
Borehole diameter range |
0.15~4.0mm |
|
Tool magazine |
Pneumatic press knife change |
|
Repeated positioning accuracy |
±0.02mm |
|
Table size |
400*280mm |
|
Programming mode |
CAD file import/computer programming/manual programming |
|
System program storage capacity |
About 10,000 |
|
System external signal control |
support |
|
Operating voltage |
AC 220V/50HZ |
|
Machine weight |
Approx. 500KG |
|
Floor space |
850*900*1700mm
|
| Payment Terms: | TT |
|---|---|
