| Model: | FT-Connector-13 |
|---|---|
| Brand: | Futai |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | DIN connector , din male connector , 1/2 cable |
| Price: |
US $3
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:11 Oct, 2023 |
We can produce the connector according to your drawing or requirement.
Place of Origin: Guangdong,China
Brand Name:Futai

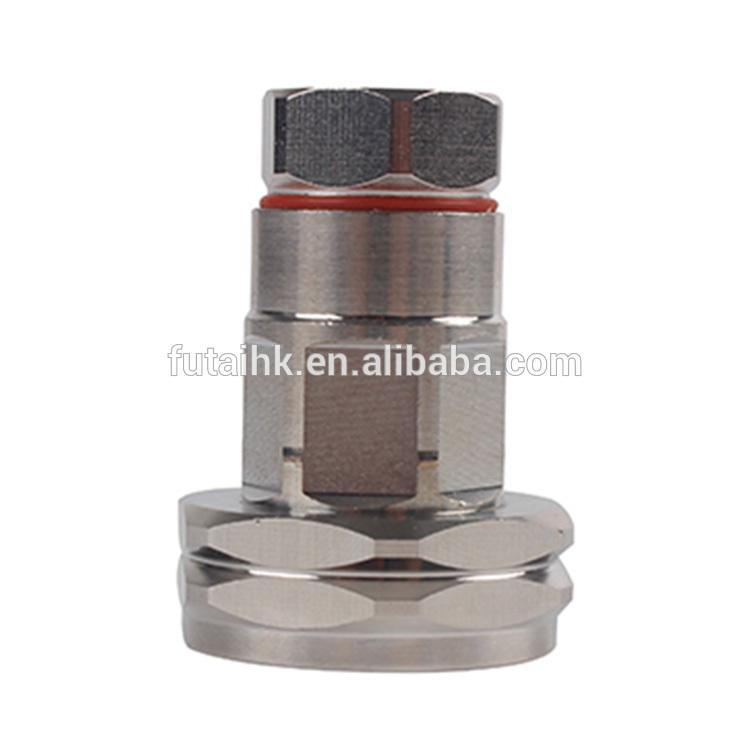

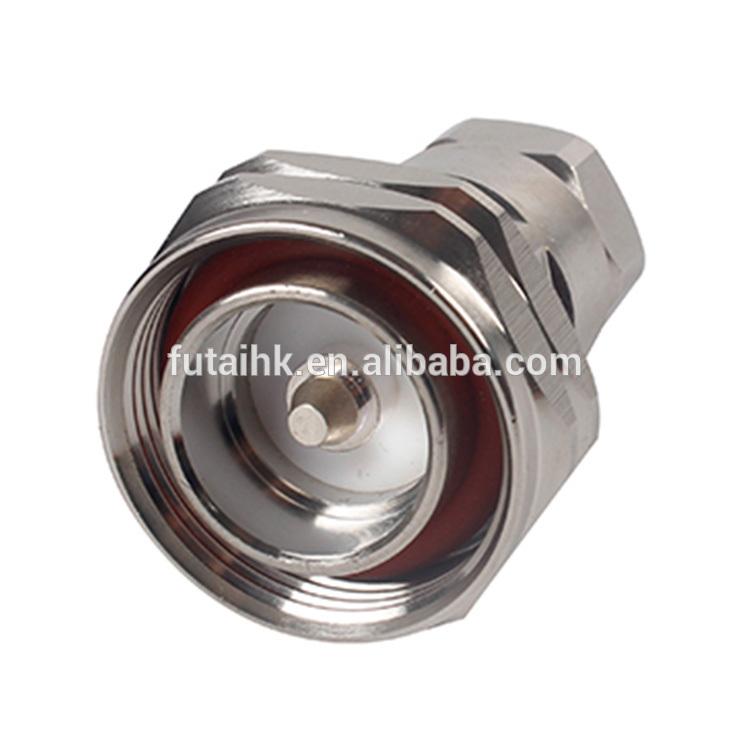

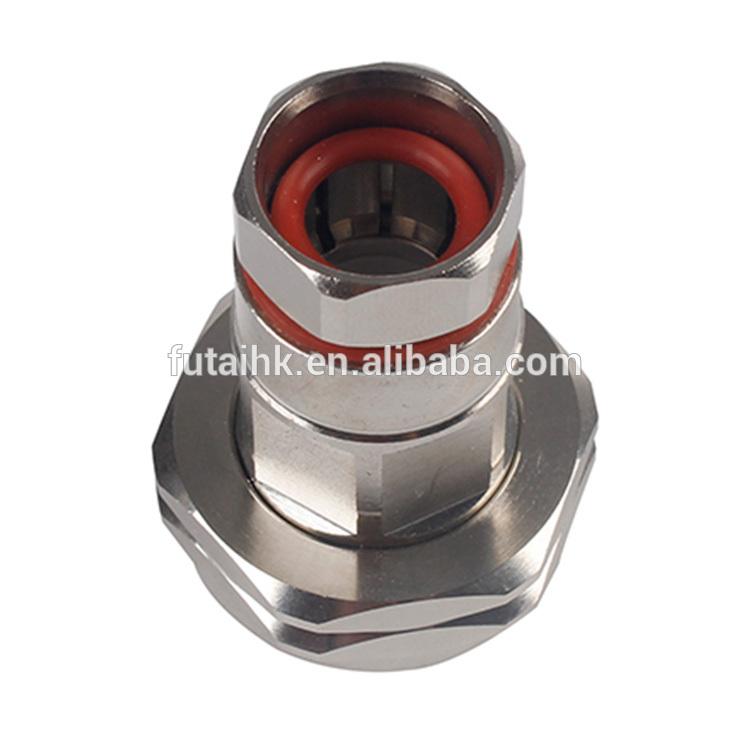

DIN Male Connector for 1/2 Cable
Specifications:
|
Model |
FT-Connector-132 |
|
|
Major Technical Characteristics |
||
|
Type |
7/16-J-132 |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC~7.5GHz |
|
|
Center conductor retention force |
≥6 N |
|
|
Insulation resistance |
≥1000MΩ |
|
|
Voltage Standing Wave Ratio |
Straight ≤1.20/6GHz |
|
|
Right angle ≤1.35/6GHz |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Material & Plating |
||
|
Body |
Brass |
silver or cusnzn3 plated |
|
Pin contact |
Tin bronze |
Gold plated |
|
Socket contact |
Beryllium-copper Customized) |
Gold plated |
|
Resilient contact |
Beryllium-copper or tin bronze |
silver or cusnzn3 plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
gold plated |
|
O-ring sealing |
6146 silicone rubber |
|
Our Company Other Products:
Futai HK Co.,Ltdis specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
We are welcoming you to ask sample for testing ,welcome to our company website to do business.
http://www.futai8.com http://www.gpsgf.com http://futaihk.en.alibaba.com
| Payment Terms: | TT/Western Union |
|---|---|
