BNC Connector

Model:BNC-KFD-062pl
Brand:Futai
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:BNC Male RF , BNC Connector , Antenna connector
Price: -
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Futai HK Co., Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:30 Nov, 2020

Product Description

1.BNC Female PCB Connector
2.Type:BNC-KFD-062pl
3.Place of Origin: Guangdong,China
4.Brand Name:Futai
5.BNC RF connector

The BNC connectors are for low power,quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad.They are widely used connect of the RF coaxial-cables in electronic equipment and instuments.Characteristic impedance 50Ω,75Ω.


We can produce the connector according to your drawing or requirement.



BNC Female Connector



Specifications:



Model

FT-Connector-062pl

Major Technical Characteristics

Type

BNC-KFD-062pl

Impedance

50Ω

Frequency Range

DC~4GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB/3GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.22/3GHz

Right angle     ≤1.30/3GHz

Durability(mating)

≥500(cycles)

Cable

PCB

Material & Plating

Body

Brass

Nickle plated

Pin contact

Brass

Gold or silver plated

Socket contact

Beryllium-copper

Gold or silver plated

Resilient contact

Tin bronze

Gold or silver plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber

 Our Company Other Products:
Futai HK Co.,Ltd
is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

We are welcoming you to ask sample for testing ,welcome to our company website  to do business. http://www.futai8.com   http://futaihk.en.alibaba.com


Payment Terms:TT/Western Union

Product Image

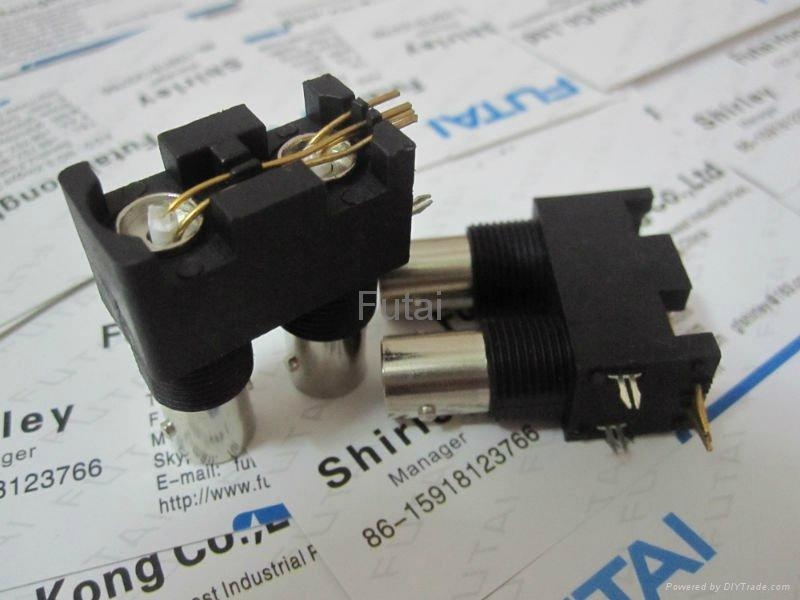

BNC Connector 1
Img 1
BNC Connector 2
Img 2
BNC Connector 3
Img 3
BNC Connector 4
Img 4
