| Model: | FT-Connector-02 |
|---|---|
| Brand: | Futai |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | SMC Female Connector , SMC Female Connector , SMC Female Connector |
| Price: |
US $0.5
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:12 Apr, 2024 |
The SMA seriesconnectors for use with semi-rihid and flexible RF cables,are used for microwave applications requirng high performance.They are characterized by their small size and high reliability,and be inter-changeable with the same-type connectors

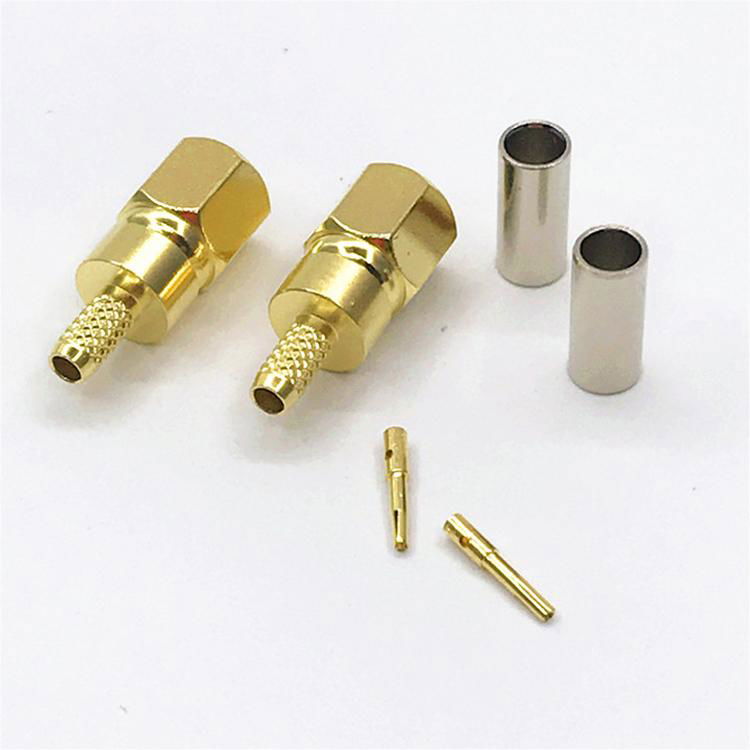

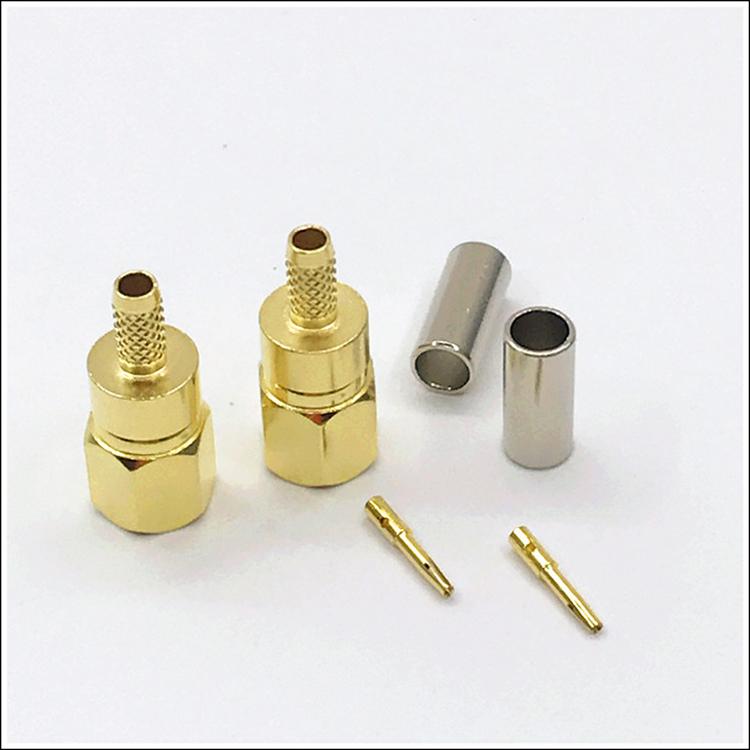

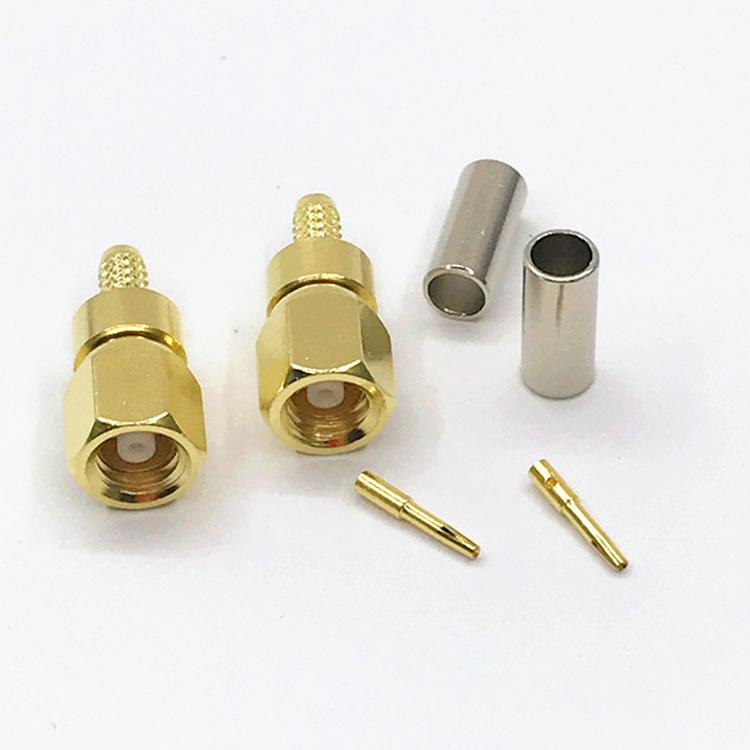

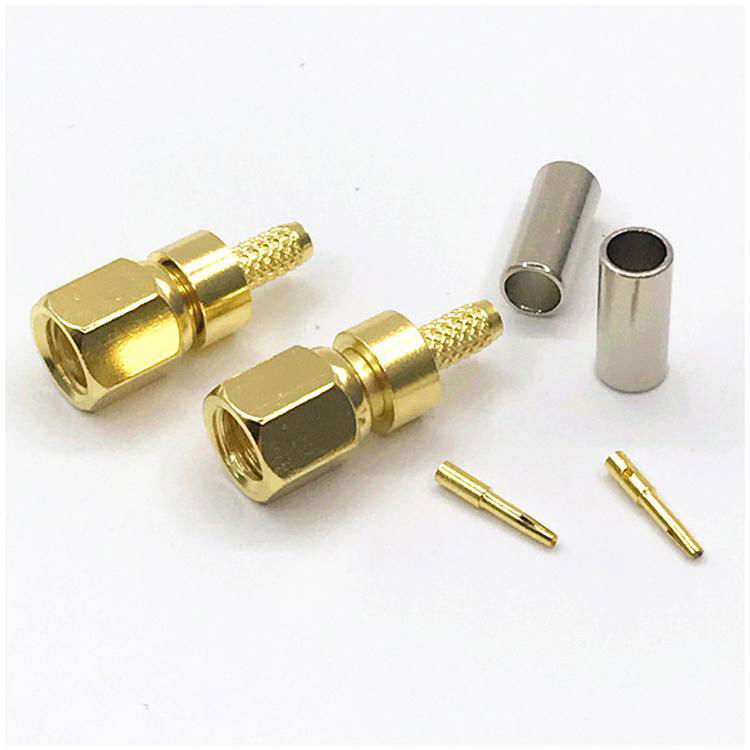

SMA Female Connector RG174 Cable
our company can supply the conenctor according to your drawing
|
Model |
FT-Connector-023
|
|
|
Major Technical Characteristics |
||
|
Type |
FT-Connector-023 |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC～6GHz |
|
|
Center conductor retention force |
≥0.28 N |
|
|
Insertion Loss |
≤0.24dB/6GHz |
|
|
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Cable |
RG174,RG316 |
|
|
Material & Plating |
||
|
Body |
Brass |
Nickel plated |
|
Pin contact |
Brass |
Gold plated |
|
Socket contact |
Beryllium-copper Customized) |
Gold plated |
|
Resilient contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber |
|
Our Company other products:
Futai HK Co.,Ltdis specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
We are welcoming you to ask sample for testing.
Welcome to our website to work together:
http://www.futai8.com http://www.gpsgf.com http://futaihk.en.alibaba.com
| Payment Terms: | TT |
|---|---|
