SMA Female to SMB Male Adapter

Model:FT-Adapter-01
Brand:Futai
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:sma to smb adapter , sma female adapter , smb male adapter
Price: US $0.3 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Futai HK Co., Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:14 Jul, 2020

Product Description

We can produce the connector according to your drawing or requirement.

Detailed Product Description

SMA Male to IPEX Male Adapter
Type:SMA-J/IPEX-J-140
Place of Origin: Guangdong,China
Brand Name:Futai
RF Coaxial connector

SMA Female to SMB Male Adapter

Specifications:

Model

FT-Adapter-01

Major Technical Characteristics

Type

FT-Adapter-01

Impedance

50Ω

Frequency Range

DC~12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force

≥0.28 N

Insertion Loss

≤0.15dB/6GHz

Voltage Standing Wave Ratio

Straight  Flexible Cable  ≤1.10+0.02f

Semi-Rigid Cable≤1.07+0.018f

Right angle Flexible Cable  ≤1.20+0.03f

          Semi-Rigid Cable≤1.17+0.02f

Durability(mating)

≥500(cycles)

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber





















































Our Company Other Products:
Futai HK Co.,Ltd
is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

We are welcoming you to ask sample for testing ,welcome to our company website  to do business.
http://www.futai8.com  http://www.gpsgf.com  http://futaihk.en.alibaba.com


Payment Terms:TT / LC / Western Union / Paypal

Product Image

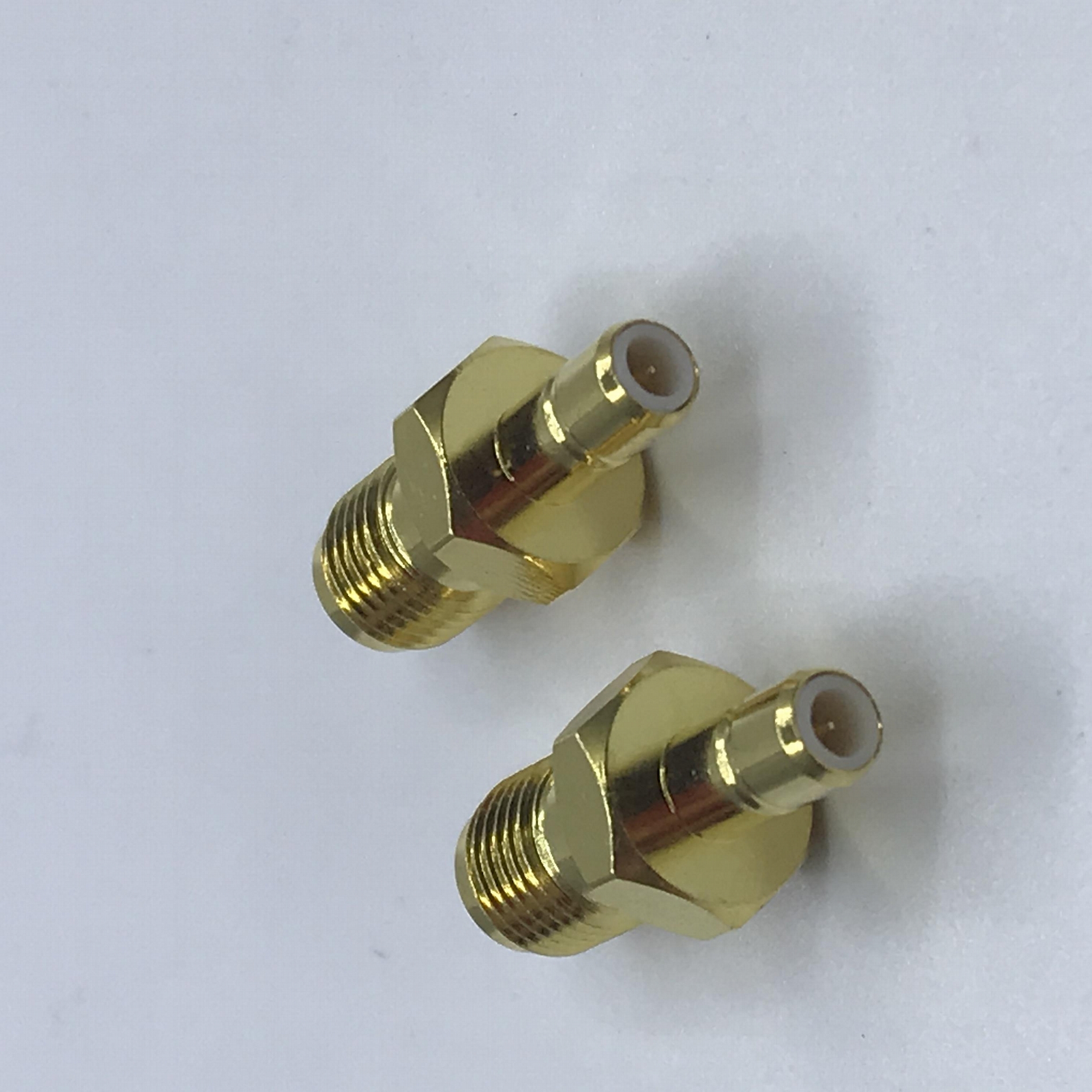

SMA Female to SMB Male Adapter  1
Img 1

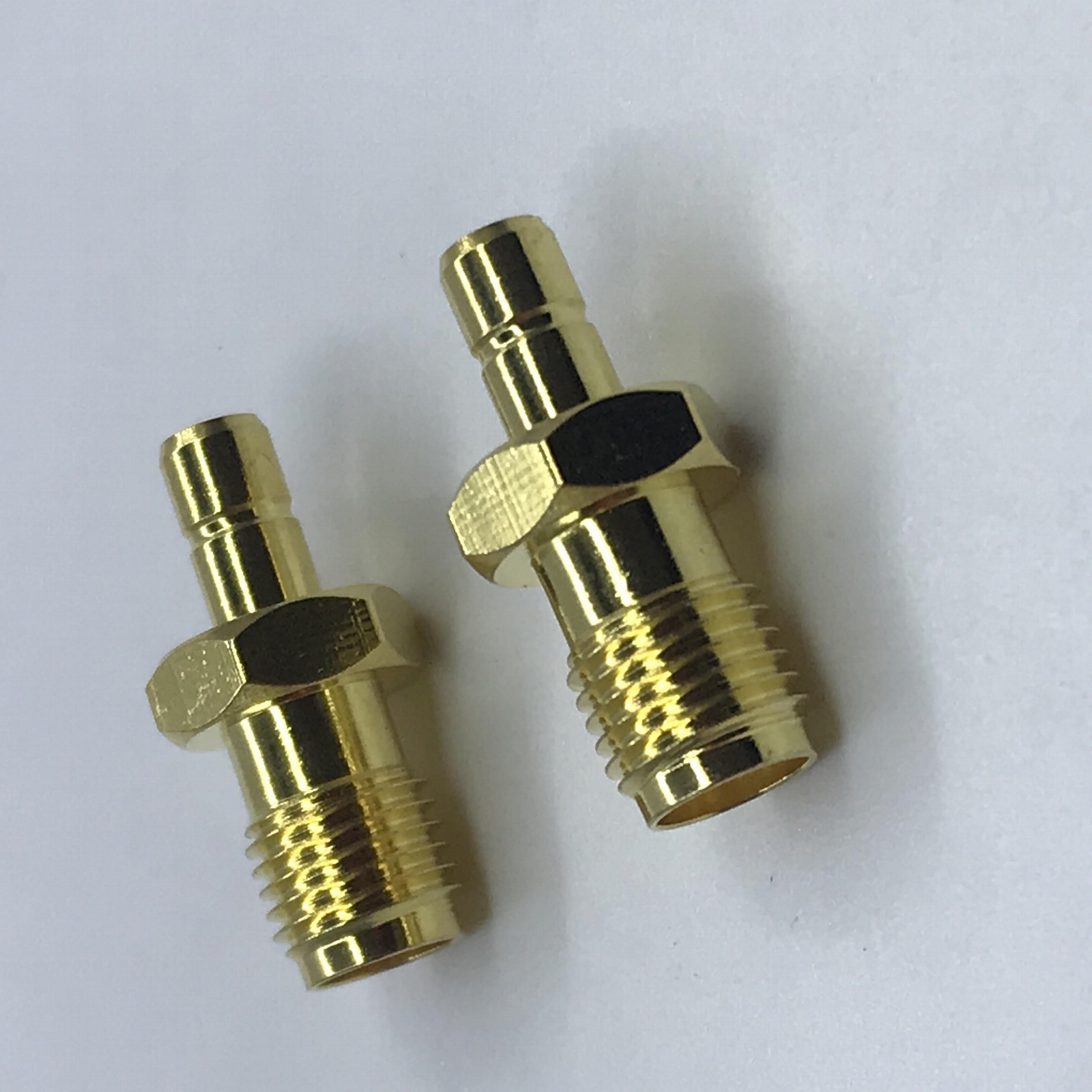

SMA Female to SMB Male Adapter  2
Img 2

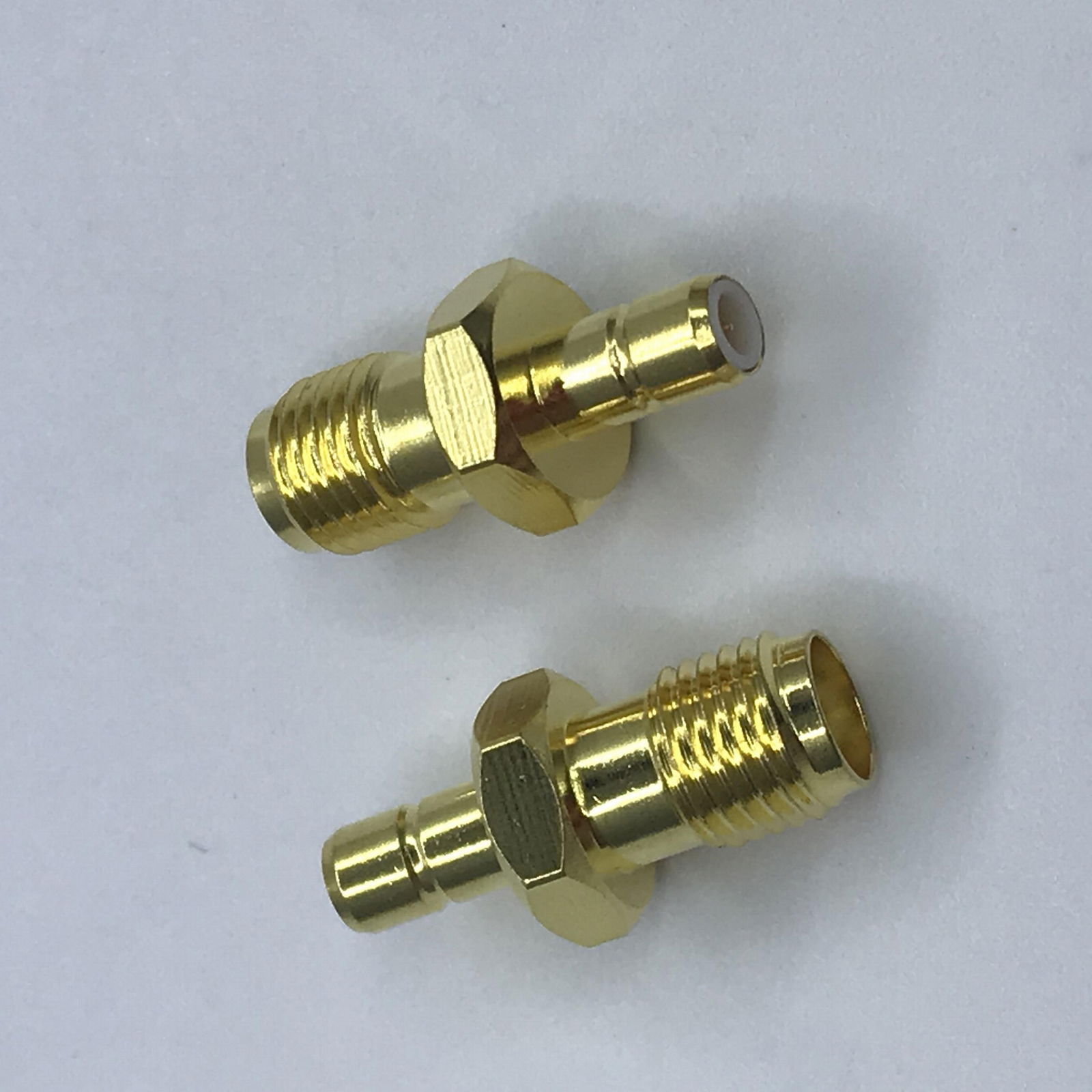

SMA Female to SMB Male Adapter  3
Img 3
SMA Female to SMB Male Adapter  4
Img 4
