| Model: | CW-F04 |
|---|---|
| Brand: | ChuangWei |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | PCB Separator , PCB Machine Price , Depaneling machine |
| Price: |
US $1
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:13 Aug, 2019 |

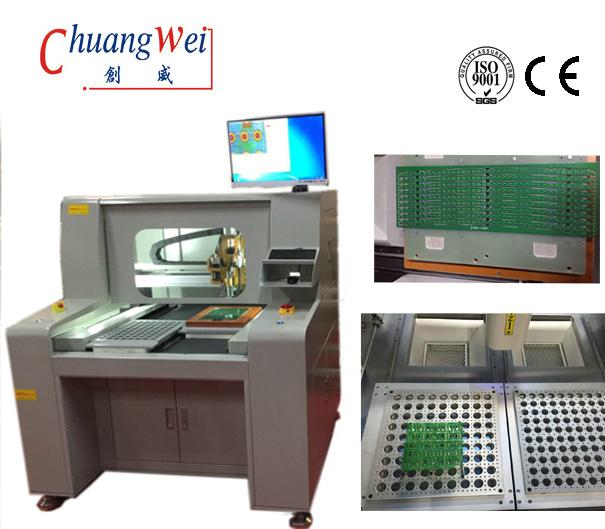

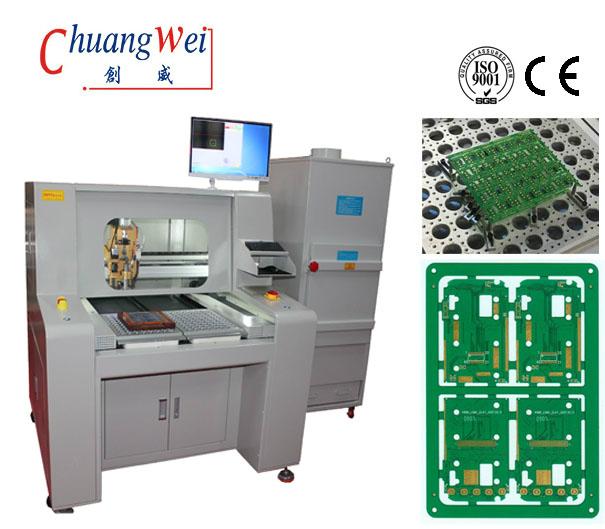

PCB Separator Machine PCB Machine Price PCB Board Depaneling Equipment,CW-F04
Key Feature:
1. Two-slide PCB Separator
2. Low stress
3. Sharp cutting edge
4. Manul loading /unloading
5. High speed cutting by 4 axes control
6. Easy teaching with image processing
Detailed Product Description:
| Warranty: | One year | Spindle: | KAVO |
|---|---|---|---|
| Speed: | 60000rpm | Power: | 220V, 4.2KW |
| Colour: | White | Name: | PCB Router Equioment |
Performance Parameters:
|
Model |
CW-F04 |
|
Standard working area |
320*320mm |
|
Power |
220V, 4.2KW |
|
Manipulator Repeatability |
±0.02mm |
|
Resolution |
±0.01mm |
|
Board Positioning |
Dual workstation with nest fixture or pin fixture |
|
Panel Location |
Located by tooling holes or edges of PCB |
|
Loading |
Manual |
|
Unloading |
Manual |
|
Panel Size |
320*320mm(standard) |
|
Panel Thickness |
0.5-3.5mm |
|

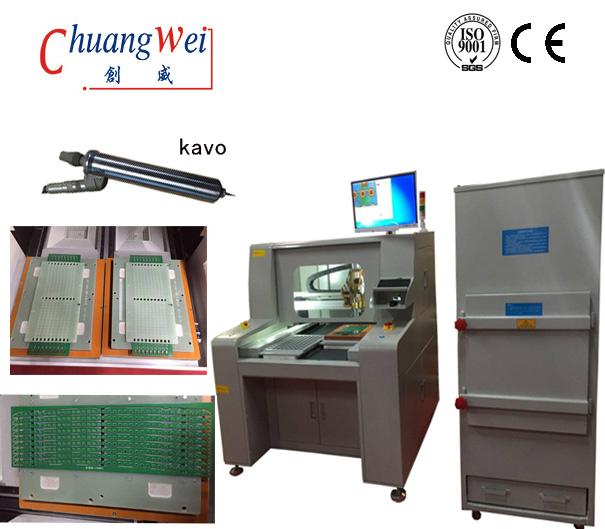

Spindle motor |
KAVO Spindle |
|
Tool Change |
Manual |
|
Dust filtration system |
3KW Vacuum Cleaner |
|
Vision system |
High resolution CCD video camera |
|
Programming |
Vision assisted point to point manual teaching |
|
Editing Function |
Dry run vision assisted / test run mode |
|
Machine weight |
500kgs |
|
Machine dimension |
113*140*108cm |
Description:
1.2-way Sliding Exchanger:
This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.
2.Route Duplication:
The user only needs to set two referent points to duplicate a same route in saving programming time.
3.Routing Bit Sectioning:
The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.
4.Friendly GUI:
Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.
Advantages:
1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.
3. Avoid using blunt or fold, produced by mechanical stress.
4. Suitable for the finished plate arc and line cutting.
5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.
Packaging:
CE Approval:
Why Choose Us:
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3. Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery .
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
