Specifications Parameters:

Screen Frames	Min Size	470X370mm
	Max Size	737X737mm
	Thickness	25~40mm
PCB Min Size		50X50mm
PCB Max Size		400X340mm
PCB Thickness		0.4~6mm
PCB Warp age		＜1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/S Programmable
Board Location PCB	Support System	Magnetic Pin/Up-down table adjusted/supportblock  by hand
	Clamping System	side clamping,vacuum nozzle
Print head		Two independent motorised print heads
Squeegee Speed		6~200mm/sec
Squeegee Pressure		0~15Kg
Squeegee Angle		60°/55°/45°
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges		X:±10mm;Y:±10mm;θ:±2°
Table Adjustment control		Table Adjustment control of linear motor
Machine
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm2
Power Input		AC:220±10%,50/60HZ 1Φ 3KW
Control Method		PC Control
Machine Dimensions		1220(L)X1355(W)X1500(H)mm
Machine Weight		Approx:1000Kg



Product Feature:

1. Scraper system

* the arch bridge is suspended straight and straight

* programmable suspension self-adjusting stepping motor drives the printing head

* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation before and after scraping

* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements of PCB, for the customer provides a good platform for the control of printing;

* slide rail scraper system to improve operation stability and prolong service life;

Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full;





2. Steel mesh positioning system

The size of steel mesh has good and wide applicability

The imported SMC cylinder is used as the cylinder.

Embedded scale, never fall off

Segmented fixed steel frame







3. Image and optical path system

X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive

Internal increase polaroid, automatic accurate grasping different type of the MARK point

Upper, lower and coaxial 3 uniform light source

Japan's Toshiba industrial camera







4. PCB transportation and positioning system

The inlet direction arbitrary selection, free combination

Special process of inner tooth transport belt, prevent card board

Programmable transport speed control can make the suspension more accurate

Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between PCB and steel mesh.



5. Cleaning system

Spray type cleaning

Dry, wet, vacuum-free combination

Separate cleaning structures

Circular cleaning rubber strip

Cleaning fluid, and steel net cleaning paper amount controlled







6. Platform calibration system

UVW platform structure, high precision, large rigidity and compact structure

Triaxial linkage, small volume, high precision







7. Base and rack system

Solid forming

Panasonic motor plus Japan original plant high precision ground wire rod

High rigidity, high stability of left and right symmetrical







8. Electrical road system

Safe and concise circuit gas circuit layout

The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.







9. Operating system

Easy to learn easy to use friendly operation interface, with good man-machine dialogue function

The program file has teaching and navigation functions, and every step has a hint

Switch between Chinese and English

It has operation log, fault recording analysis and diagnosis







10. Other functional options

Automatic point glue function

Automatic scanning function

Automatic add tin function

The whole line closed loop control

Constant temperature and humidity function

Steel mesh pl ing function

Other functions can be customized according to customer's actual demand

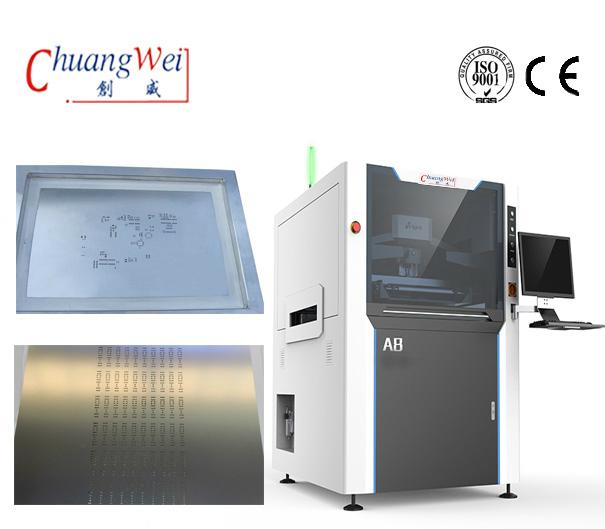

PCBA Assembly Equipment-Solder Paste Printer Machine,CW-A8Product Pictures:
