PCB Nibbler PCB Depaneling Machine Cutting Different Shape PCB Separator

Model:CWV-LT
Brand:ChuangWei
Origin:Made In China
Category:Industrial Supplies / Electrical & Electronic Product Equipment
Label:PCB Nibbler , PCB Depaneling , Cutting Machine
Price: US $1 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

ChuangWei Electronic Equipment Manufactory

Free MemberGuang Dong - China
Live Chat:
Last Online:13 Aug, 2019

Product Description

PCB Nibbler PCB Depaneling Machine Cutting Different Shape PCB Separator,CWV-LT



Simple Introduction of Product:

The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.



"T"-Blade

 With the T-blade off-cuts can be punched out right and left of the blade without turning the PCB.

"L"-Blade

 The L-blade will be used if there are small distances between the off-cuts



Matrix





Product  Features:

1, all pneumatic control, easy to operate

2, suitable for slitting various PCB connection points
3, hook blade work, hook blade shape can be customized
4, convenience for replacing hook blade
5, hook blade for "T" type or "L" type blade
6, small size, does not damage the part of the PCB and PCB substrate



Product Specification:

Action stroke times 12 times / min
Working dry air pressure 0.50-0.70 Mpa
Slide stroke 2 mm
PCB Nibbler Machine Weight 2 kg
PCB Nibbler Machine Size 280x105x185mm



Product Samples:







Why Us:

1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2.Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to so e their problems and create value for customers.

4.One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

PCB industry to become the world's leading solution providers PCB separator. pcb router machine



CE Certification:



Business Parners From Different Lines:





Customer Feedback:


Payment Terms:TT/LC

Product Image

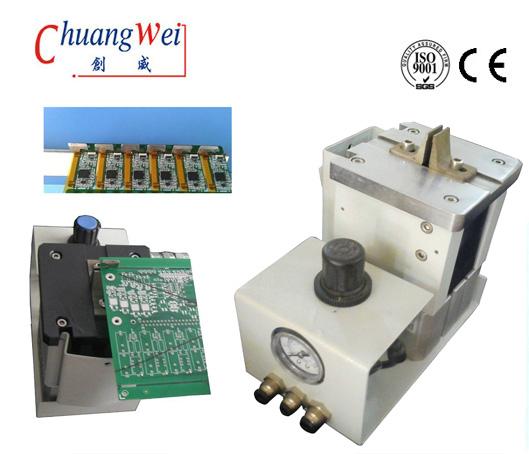

PCB Nibbler PCB Depaneling Machine Cutting Different Shape PCB Separator 1
