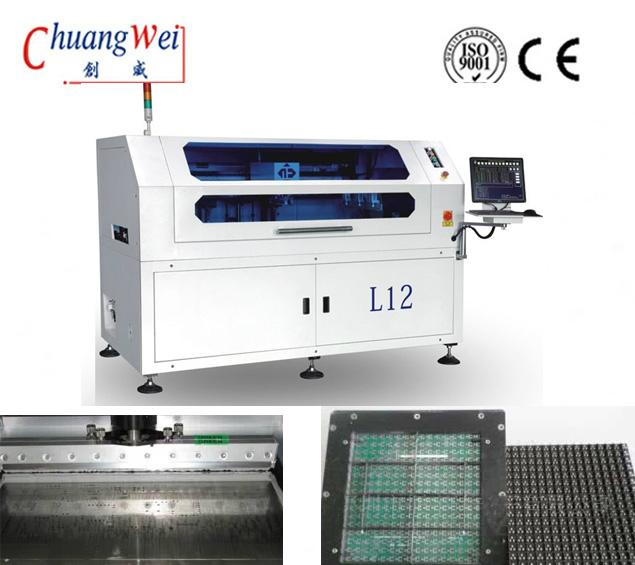

Stencil Printing Machine Circuit Board Printing MPM Printers

Model:CW-L12
Brand:ChuangWei
Origin:Made In China
Category:Industrial Supplies / Electrical & Electronic Product Equipment
Label:pcb printing machine , smt machine , solder paste printer
Price: US $5000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

ChuangWei Electronic Equipment Manufactory

Free MemberGuang Dong - China
Live Chat:
Last Online:13 Aug, 2019

Product Description

 Product Key Features:

1. Scraper system

* the arch bridge is suspended straight and straight

* programmable suspension self-adjusting stepping motor drives the printing head

* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation before and after scraping

* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements of PCB, for the customer provides a good platform for the control of printing;

* slide rail scraper system to improve operation stability and prolong service life;

Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full;





2. Steel mesh positioning system

The size of steel mesh has good and wide applicability

The imported SMC cylinder is used as the cylinder.

Embedded scale, never fall off

Segmented fixed steel frame



3. Image and optical path system

X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive

Internal increase polaroid, automatic accurate grasping different type of the MARK point

Upper, lower and coaxial 3 uniform light source

Japan's Toshiba industrial camera



4. PCB transportation and positioning system

The inlet direction arbitrary selection, free combination

Special process of inner tooth transport belt, prevent card board

Programmable transport speed control can make the suspension more accurate

Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between PCB and steel mesh.



5. Cleaning system

Spray type cleaning

Dry, wet, vacuum-free combination

Separate cleaning structures

Circular cleaning rubber strip

Cleaning fluid, and steel net cleaning paper amount controlled



6. Platform calibration system

UVW platform structure, high precision, large rigidity and compact structure

Triaxial linkage, small volume, high precision



7. Base and rack system

Solid forming

Panasonic motor plus Japan original plant high precision ground wire rod

High rigidity, high stability of left and right symmetrical



8. Electrical road system

Safe and concise circuit gas circuit layout

The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.



9. Operating system

Easy to learn easy to use friendly operation interface, with good man-machine dialogue function

The program file has teaching and navigation functions, and every step has a hint

Switch between Chinese and English

It has operation log, fault recording analysis and diagnosis



10. Other functional options

Automatic point glue function

Automatic scanning function

Automatic add tin function

The whole line closed loop control

Constant temperature and humidity function

Steel mesh pl ing function

Other functions can be customized according to customer's actual demand



 Product Application Pictures:





Technical Parameters:

Model

L12

Item



Min   Size

737X737mm

Max   Size

1500X750mm

Thickness

25~40mm

PCB   Min Size

80X50mm

PCB   Max Size

1200X350mm

PCB   Thickness

0.4~6mm

PCB   Warpage

<1%

Transport   Height

900±40mm

Transport   Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport   Speed

Max   1500mm/S Programmable

Support System

Magnetic   Pin/Up-down table adjusted/supportblock

Clamping System

Elastic side clip / Z direction sheet

Squeegee   Speed

6~200mm/sec

Squeegee   Pressure

0~15Kg Pressure control

Squeegee   Angle

60°/55°/45°

Squeegee   Type

Stainless   steel(Standard), plastic

Stencil   Separation Speed

0.1~20mm/sec   Programmable

Cleaning   System

Dry、Wet、Vacuum   (Programmable)

Table   Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine



Repeat   Position Accuracy

±0.015mm

Printing   Accuracy

±0.03mm


Cycle Time

<15s (Exclude Printing & Cleaning)

Product   Changeover

<5Min

Air   Required

4.5~6Kg/cm2

Power   Input

AC:220±10%,50/60HZ   1Φ 3KW

Control   Method

PC   Control

Machine   Dimensions

2200(L)X1200(W)X1500(H)mm

Machine   Weight

Approx:1500Kg



 Additional Information:

Payment Terms

T/T, Paypal

Minimum Order

1 Set

Lead Time / Delivery Time

10 Day(s)

Sample Available

NO

Delivery Details

7-10 days after payment receipt

FOB Port

Shenzhen,

Loading Info

FOB Shenzhen via Sea/Air

Packing Info

plywood case

Target Market(s)

North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East



 CE Certification:



 Customer Feedback:



 Visiting of Customer:



 Package:



 Business Partners:



Our Service:

1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2.Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to so e their problems and create value for customers.

4.One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

PCB industry to become the world's leading solution providers PCB separator. pcb router machine
