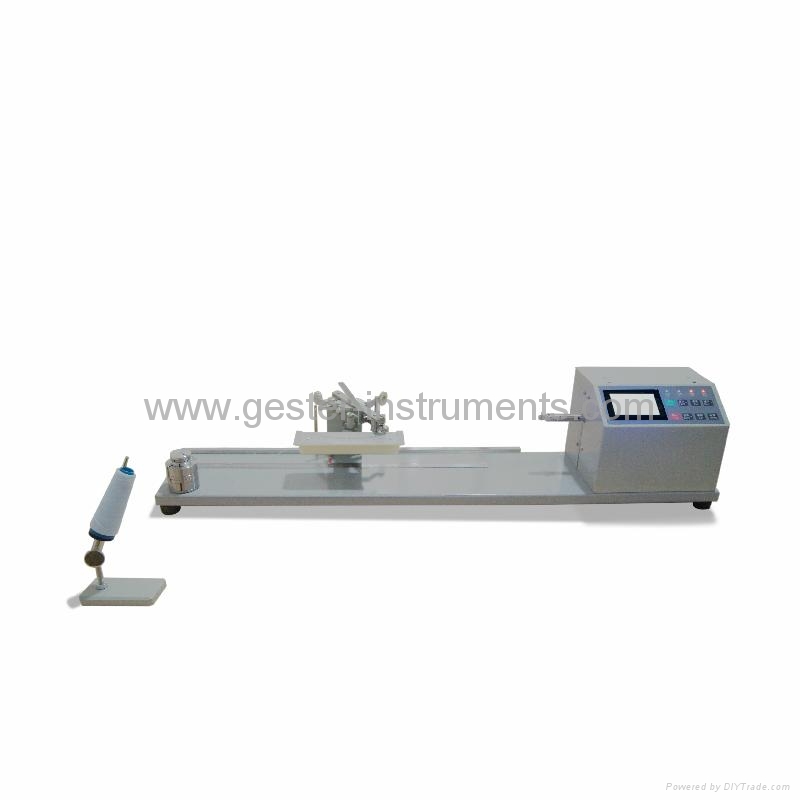

| Model: | GT-A08 |
|---|---|
| Brand: | GESTER |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Twist Tester , Yarn Twist , TPI |
| Price: |
US $1100
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:04 Aug, 2023 |
Application
To determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.
Standards
GB/T2543.1.2, 14345, ISO2061, BS2085, ASTM D1422,1423, JISL1095
Specification
|
Model |
GT-A08 |
|
Length of sample |
0-500mm(adjustable) |
|
Range of twist testing |
1-9999.9twist/10cm , 1-9999.9twist/m |
|
Max length of untwisting |
60mm (Showed by indicator) |
|
Max contracting of twisting |
20mm |
|
Grip speed |
500-2000r/min(adjustable) |
|
Presetting tension |
0.5-171.5cN |
|
Dimensions |
900 x 250 x 300mm ( L x W x H ) |
|
Weight |
20kg |
|
Optional Accessories |
Printer EPSON 300K/350 |
To know more about GESTER, pls browse www.gester-instruments.com
| Payment Terms: | TT / LC |
|---|---|
