| Model: | GT-C70B |
|---|---|
| Brand: | GESTER |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Stiffness Tester , Fabric Stiffness , Stiffness Test |
| Price: |
US $930
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:04 Aug, 2023 |

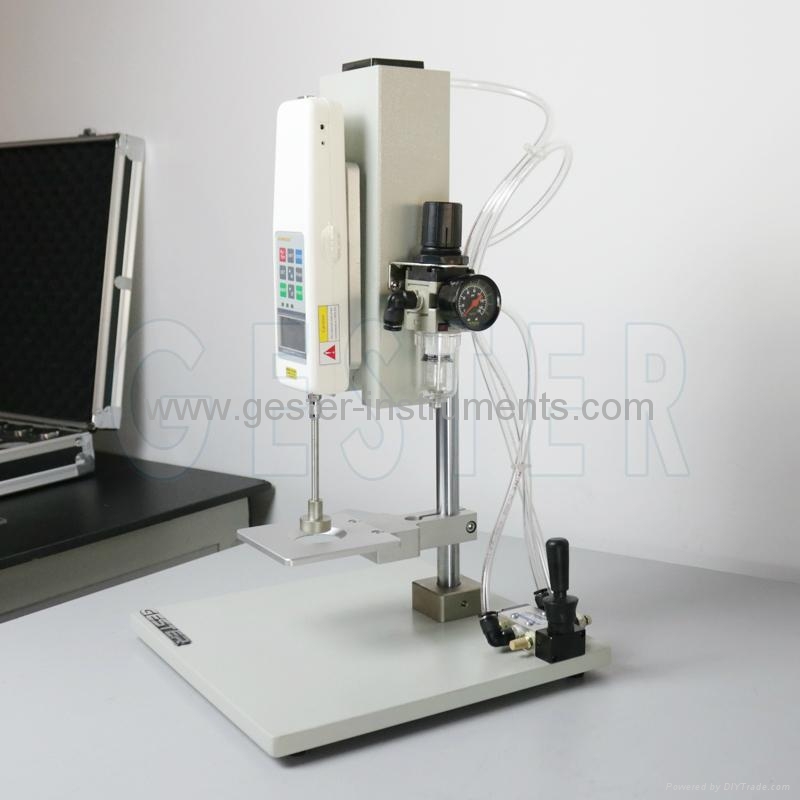

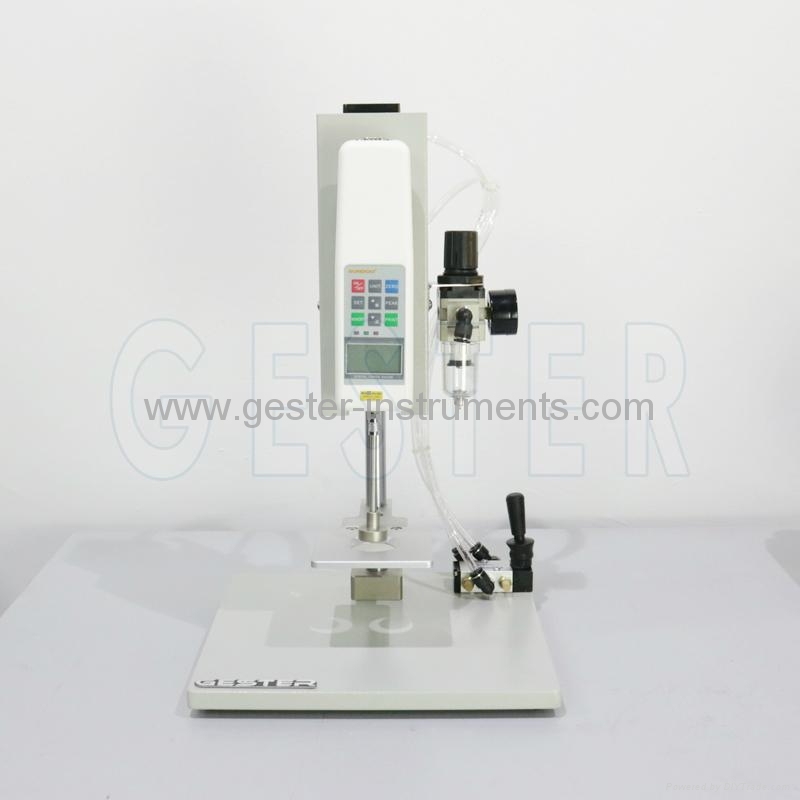

Application
To determine fabric stiffness using the ASTM circular
bend test method. This test method is generally
applicable to all types of fabrics, including woven,
knitted and nonwovens, of any fiber content.

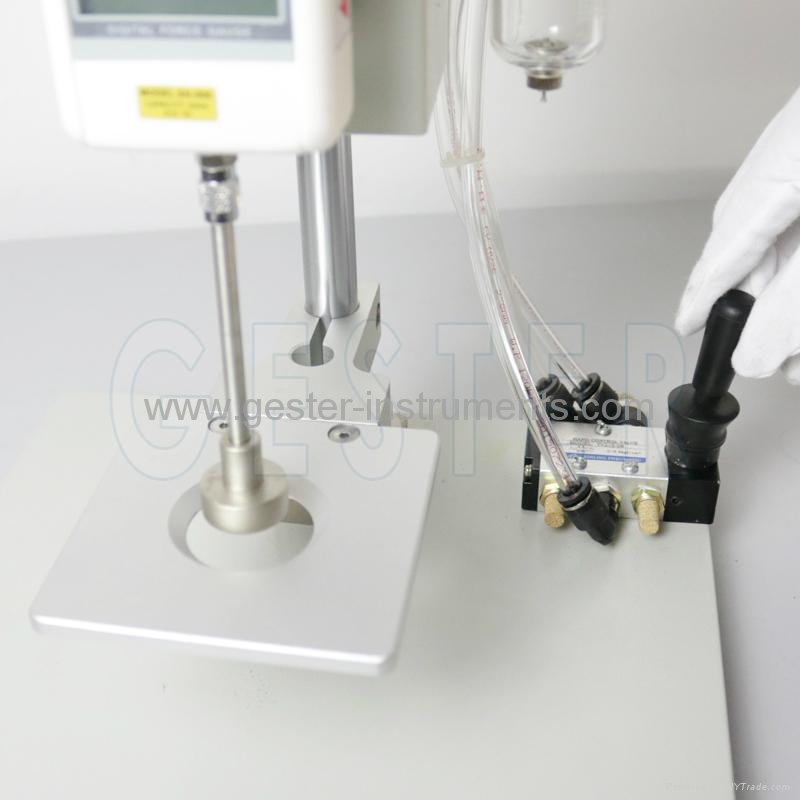

A plunger of 25.4mm (1 in) diameter pushes the
fabric through a 38mm (1.5 in) diameter orifice for a
distance of 57mm (2.25in) in 1.7 seconds and and the
maximum force is recorded.
Feature
Standards
ASTM D4032
Specification
| Model | GT-C70B |
| Force Range | 500N |
| Force Accuracy | 0.1N |
| Load Mode | Pneumatic |
| Test Plunger | Φ 25.4mm |
| Test Stroke | 57mm |
| Test Platform | 102 x 102 x 6 mm, with Φ 38.1mm orifice |
| Specimen Marking Template | 102 x 204 mm |
| Dimensions | 300 x 300 x 480mm(L x W x H) |
| Weight | 15kg |
| Payment Terms: | TT / LC |
|---|---|
