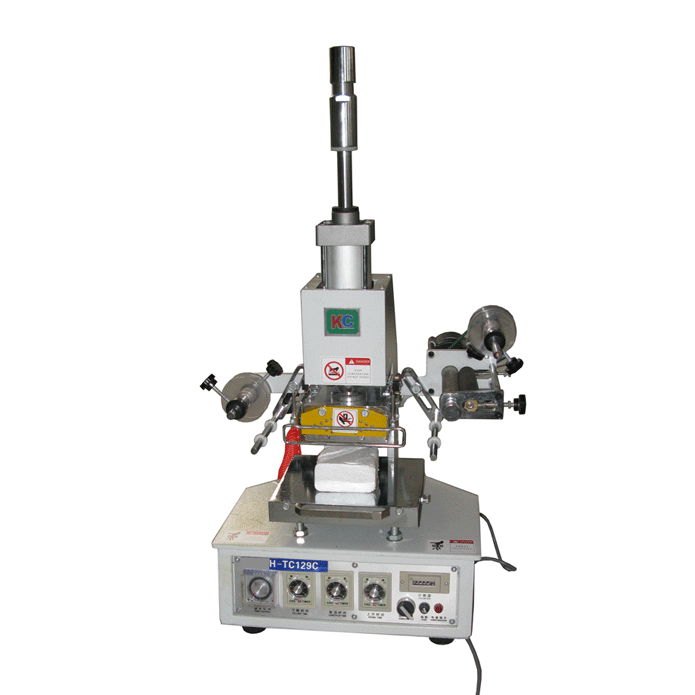

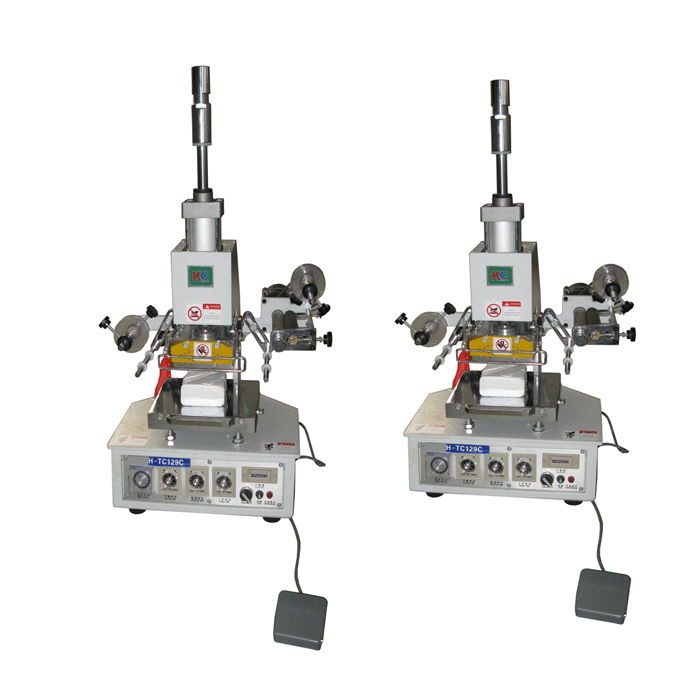

Pneumatic hot stamping Machine//Structure

Working table

High strength Steel plate , size:150*200mm.

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up，Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Pneumatic hot stamping machine //Usage and characters

Guide

• Gilding - paper, leather, wood, plastic,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
• Pneumatic drive, pressure large.

Application fields

• Paper Gilding, Leather Impression, Wood ware Baking
• Paper Concave-convex embossing， Cloth hot stamping,
• Plastics Bronzing
• Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
• Woodiness objects baking-burns and Impress;
• Leather bronzing and Molding;
• Paper products concavo indentation.
• Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

Technical parameters

HT-TC129C

• Size of stamping plate:90×120mm;
• Stamping height adjustable range：35mm;
• Size of working table: 150×200mm;
• Stamping temperature adjustable range：0－280;
• Max. stamping pressure：500kgf;
• Max. stamping speed:900pcs/hr;
• Air consumption:80 liter/min;
• Heat Wattage:500W;
• Stamping foil pulling length:80 mm.

Works supply

• 110V-220VPower supply；
• 5-7Bar compress air

Package list

• Wooden Case:
  Package size: 700*580*780mm;
  Gross weight: 95kg.

H.S.Code

8443198000

Certificate

CE

 Pneumatic hot stamping machine //Advantage

Function

• Table can be pulled into and pulled out the pick and place of convenience products;
• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Table lifting screw adjustment, simple and convenient;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
•  Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace;
• Tabletop type hot stamping machine
