Flat screen printer with vacuum table (S-4565PT)

Model:S-4565PT
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:screen printer , screen machine , silk printer
Price: US $4029 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:27 Feb, 2021

Product Description

S-4565PT Flat screen printing machine with T slot table //Structure

Working table

Vacuum working table, Size: 500*700mm

Actions

Up-down of screen plate

To be printed

  • Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

S-4565PT  Flat screen printing machine with T slot table //Usage and characters

Guide

  • T-slot flat worktable, suitable for printing all kinds of injection molding hard products with three-dimensional shape;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application

  • The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case

S-4565PT Flat screen printing Machine with T slot table//Parameters

Technical parameters

  • Max printing thickness: 260 mm;
  • Air consumption: 80Litre/Min;
  • Dimension of working table: 500×700mm;
  • Max printing areas: 450×650mm;
  • Max printing speed: 1200Pcs/H;
  • Max frame dimension: 550×840mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:160mm;
  • Stroke of Squeegee: 700mm

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Package parameters

  • Wooden Case:Package dimension: 0.93X0.92X1.65M
  • Gross weight: 160Kg;
  • CBM: 1.51832

H.S.CODE

8443192190

Certificate

CE

S-4565PT Flat screen printing Machine with T slot table //Advantage

Function

  • T-slot flat worktable, suitable for printing all kinds of injection molding hard products with three-dimensional shape;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Standards Certificate:CE

Product Image

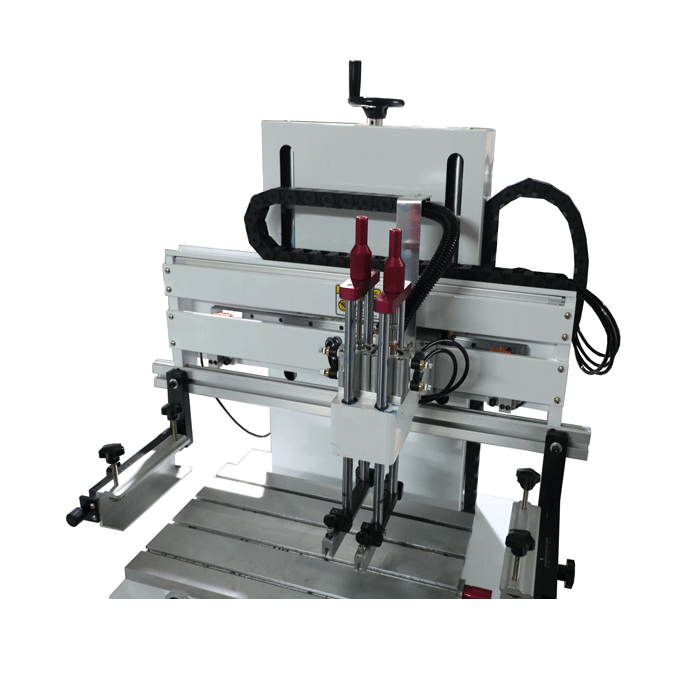

Flat screen printer with vacuum table (S-4565PT) 1
Img 1

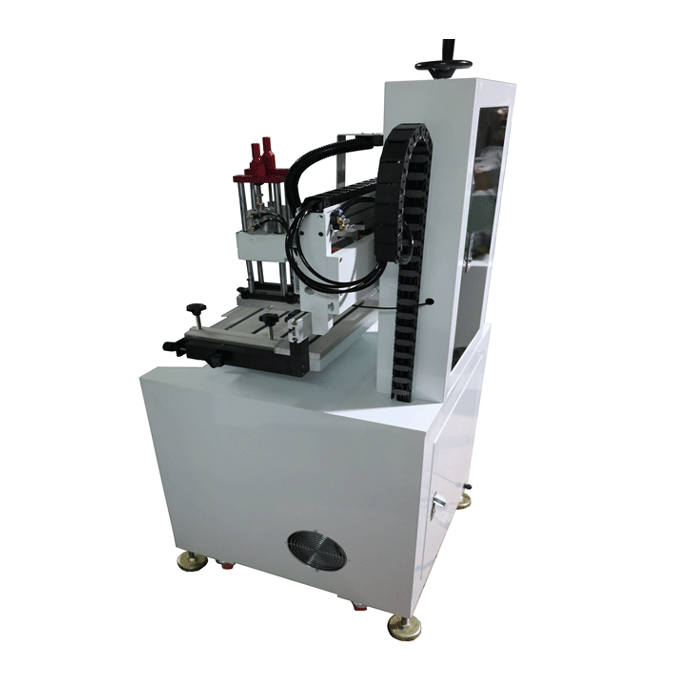

Flat screen printer with vacuum table (S-4565PT) 2
Img 2
Flat screen printer with vacuum table (S-4565PT) 3
Img 3
Flat screen printer with vacuum table (S-4565PT) 4
Img 4
Flat screen printer with vacuum table (S-4565PT) 5
Img 5
