Tighten silk machine( SM-120160TS)

Model:SM-120160TS
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:silk tighten machine , Stretching Mach , silk-pull machine
Price: US $1350 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:23 Feb, 2021

Product Description

Stretching Machine //Usage and characters

Guide

  • Currently on the market the most common type of mechanical tension and pneumatic pulled.;
  • Free Stretching Machine sliding rail can of screen frame of different sizes;
  • Cylinder to force the silk frame on the workbench in close contact with the clamping of the mesh in the frame folder;
  • Rotary handwheel tension in accordance with the appropriate mesh taut surface of the screen frame.
  • Can stretch to more than one screen frame;
  • Collectively referred to all manually tighten the mesh stretching machine to become pneumatic stretching machine for mechanical cylinder drive to pull the silk stretching machine, pneumatic pulling machines suitable for high accuracy and high tension screen plate of the production, while the screen plate of the production of mechanical stretching machine is suitable for most ordinary accuracy and tension.

Application fields

  • Nylon silk,;
  • PET Silk,
  • Stainless steel silk.

Stretching machine //Parameter

Technical parameters

SM-120160TS

SM-160210TS
  • Max tighten area:1200×1600mm;
  • Dimension:1500×1800×800mm;
  • Net weight:95kg;
  • Max silk tension:30N/CM.
  • Max tighten area:1600×2100mm;
  • Dimension:2000×2300×800mm;
  • Net weight:115kg;
  • Max silk tension:30N/CM.

Works supply

  • 5-Bar Compress air

Package list

  • Package size: 1790*1040*610mm;
  • Gross weight: 135kg;
  • CBM: 1.136

H.S.Code

8443198000

Certificate

CE

Stretching Machine //Advantage

Function

  • High-strength aluminum rack;
  • Push-pull free retractable guide rod;
  • Pneumatic given network to make the tension more uniform and more stable to prevent the mesh torn;
  • Manually pull the net, micro adjustment, conducive to the tension of flexibility and control;
  • High-strength aluminum alloy pull the net head, the screening is more stable;
  • Free disassembly, easy to move.

Product Image

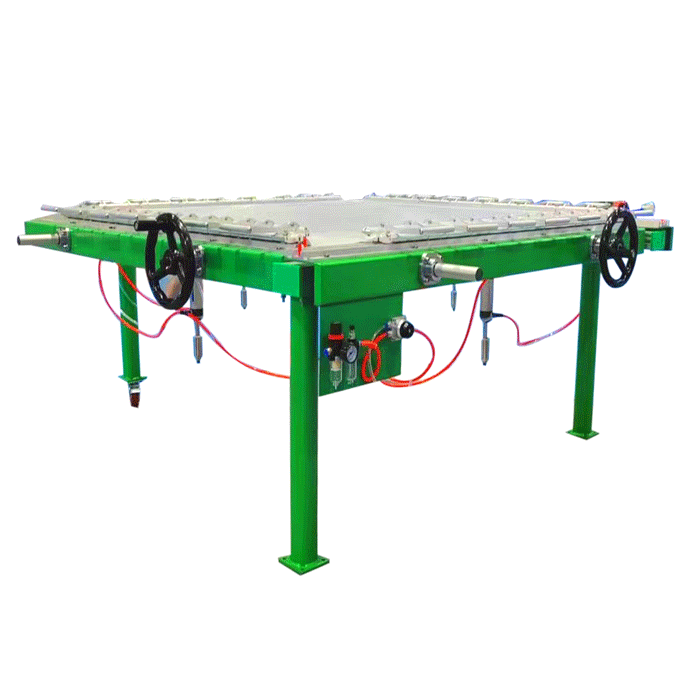

 Tighten silk machine( SM-120160TS) 1
Img 1

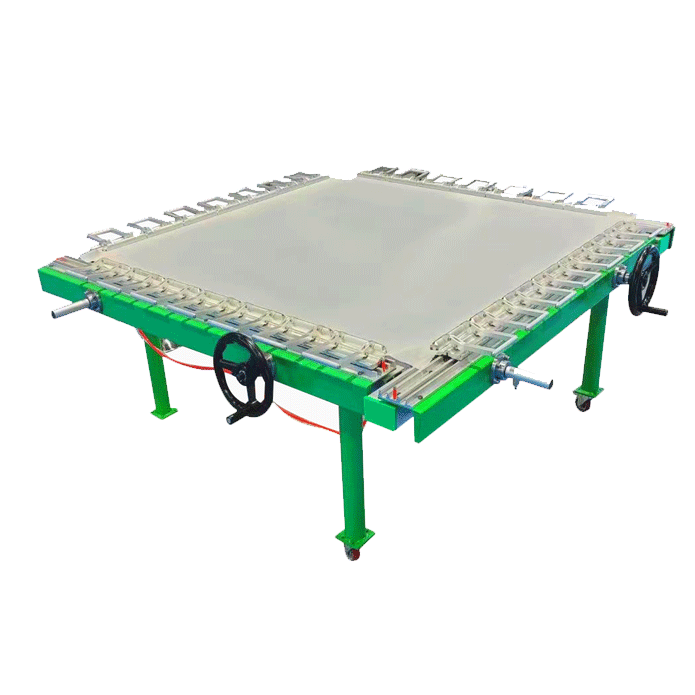

 Tighten silk machine( SM-120160TS) 2
Img 2
 Tighten silk machine( SM-120160TS) 3
Img 3
 Tighten silk machine( SM-120160TS) 4
Img 4
 Tighten silk machine( SM-120160TS) 5
Img 5
