100M media converter-2 fiber ports
Product Description
Overview
FC650F is a kind of 10/100Mbps adaptive fast Ethernet fiber media converter, with a built-in 3-port 10/100Mbps adaptive switch, which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. FC650F can extend the transmission distance of a network from 100m over copper wires to 120Km. This type of fiber converter supports two different types of network connection media types: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology, this kind of converter supports transmission in dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode fibers.
Features
· Adaptive 10Mbps and 100Mbps environments, for the convenience of network upgrade;
· Efficient built-in switching core, to implement flow control and reduce broadcast packets;
- Provide 3 independent 10/100Mbps adaptive switching-type twisted pair ports, to implement electrical interface backup and multi-user access;
- Provide electrical interfaces based on VLAN switch setting, and supporting the connection of users from different units;
- Support full-duplex and half duplex transmission modes and capable of automatic negotiation;
- Support automatic crossing of twisted pair ports, for the convenience of system deb ing and installation;
- Support the transmission of extra-long packets (with the maximum length of 1552 bytes);
- Support Quality of Service (QoS) and ensuring transmission of VoIP packets;
- Support Spanning Tree Protocol (STP) to form a redundant network;
- Low power consumption, low heat and capable of stable operation for a long period of time;
- Support multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, expanding the requirements of users;
Application
10/100Mbps fast Ethernet long-distance transmission network
Technical Specifications
Parameter
| Specifications |
Access mode | 10/100Mbps |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | Dual-fiber multi-mode: 2Km;
Dual-fiber single-mode: 25/40/60/80/100/120Km;
Single-fiber single-mode: 25/40/60/80/100Km
Category-5 twisted pair: 100m |
Port | 1/3 RJ45 connector, connected to STP/UTP category-5 twisted pair
Two fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125μm)
Single mode - SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125μm) |
Conversion mode | Medium conversion, storing and forwarding mode |
MAC address table | I K |
Buffer space | 1Mbit |
Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
Delay | 9.6us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED | POWER (power), FX LINK/ACT (fiber connection/action)
FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M)
TP1/2/3 LINK/ACT (1/2/3-port twisted pairs connection action)
TP1/2/3100 (1/2/3-port twisted pairs, with a transmission rate of 100M) |
Power | DC5V/1A (external) |
Power consumption | 3.5W |
Operating temperature | -10~55℃ |
Operating humidity | 5%~90% |
Storage temperature | -40~70℃ |
Storage humidity | 5%~90% (non-condensing) |
Dimensions | 26mm(Height)*70mm(Width)*98mm(Depth) (external power) |
Order Information
Model
| Rate
(Mbps) | Mode | Working Wavelength
(nm) | Transmission Distance
(Km) | Fiber
Interface | Power |
FC650FM2-SC/ST | 10/100 | Dual-fiber multi-mode | 1310 | 2 | SC/ST | External DC5V/1A |
FC650FS20/40/60 -SC/FC | 10/100 | Dual-fiber single-mode | 1310 | 25/40/60 | SC/FC | External DC5V/1A |
FC650FS80/100/120-SC/FC | 10/100 | Dual-fiber single-mode | 1550 | 80/100/120 | SC/FC | External DC5V/1A |
FC650FS-S20/40/60-SC | 10/100 | Single-fiber single-mode | 1310/1550 | 25/40/60 | SC | External DC5V/1A |
FC650FS-S80/100-SC | 10/100 | Single-fiber single-mode | 1310/1550 | 80/100 | SC | External DC5V/1A |

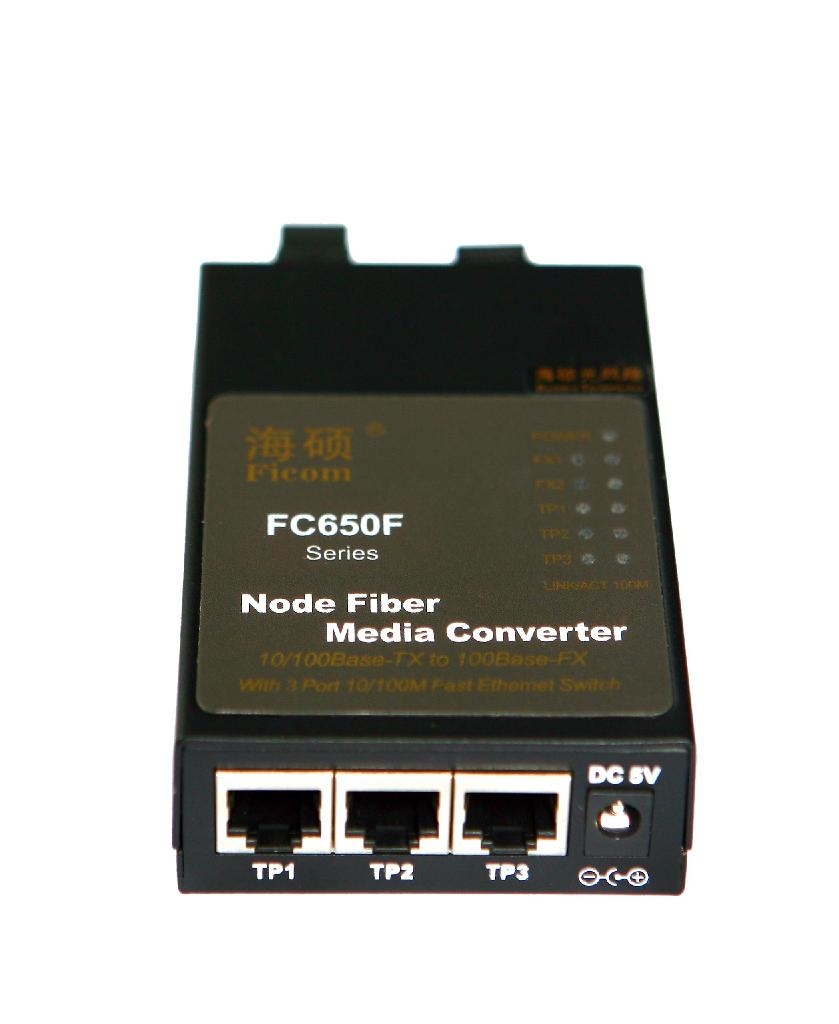

Product Image
