| Model: | FOWAY3000-18FSC |
|---|---|
| Brand: | OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | 18 port fiber switch , 16 fiber switch , fiber switch |
| Price: |
US $200
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Feb, 2018 |

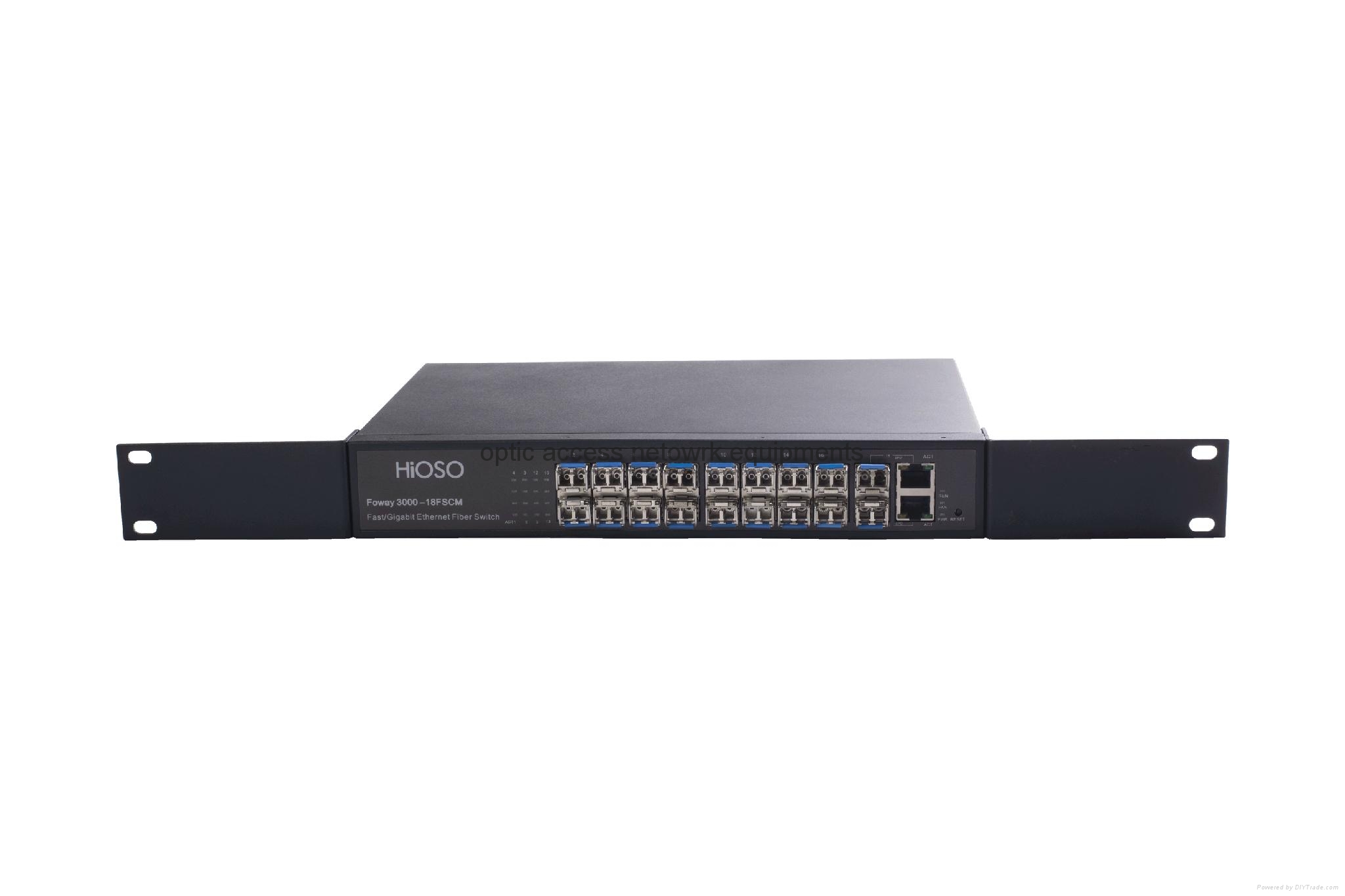

HiOSO FOWAY3000-18FSC series 18 ports 100M and1000M hybrid all optic fiber switch supply16 100M SFP fiber ports access and 2 Gigabit Combo ports (100/1000M SFP port or 10/100/1000M adaptive RJ45 Ethernet optional) uplink.
FOWAY3000-18FSC series support SFP modules hot swap; support to work with fiber switches, fiber converters and other devices with fiber ports; support WEB management and SNMP management (optional);support to transmit HD video flow;streamlined network structure(equal to 16 units fiber media converter and an Ethernet switch ), apply to security system, electronic power system and traffic system requirements.
Character
l Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
l Support DHCP, PPPoE, ACL, LLDP
Technical Specification
|
Parameter |
Specification |
|
Standard |
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, , IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP, IEEE802.1s Multiple STP, IEEE802.1q VLAN, IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
|
Wavelength |
SFP module: 850nm/1310nm/1490nm/1550nm |
|
Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220mfiber 62.5/125μm）/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km
|
|
Port |
16 100M SFP fiber ports: 100Mbps 2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45 |
|
MAC |
8K |
|
Buffer memory space |
2Mbit |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100000 hours |
|
Power |
AC100~240V 50/60HZ |
|
Power consumption |
16W |
|
Working temperature |
-10~60℃ |
|
Storage temperature |
-40~80℃ |
|
Humidity |
5%~90% non-condensing |
|
Dimension |
44mm (H)×276mm(W)×190mm (D) |
Order Information
|
Type |
Management |
Ports |
Power |
|
FOWAY3000-18FSC |
NOT |
16 100M SFP ports +2 Gigabit Combo uplink ports |
AC100~240V |
|
FOWAY3000-18FSCM |
Support |
16 100M SFP ports + 2 Gigabit Combo uplink ports |
AC100~240V |
