| Model: | K45MT-3/1325 |
|---|---|
| Brand: | QUICK CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | CNC router , furniture machine , woodworking machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Jul, 2023 |
|

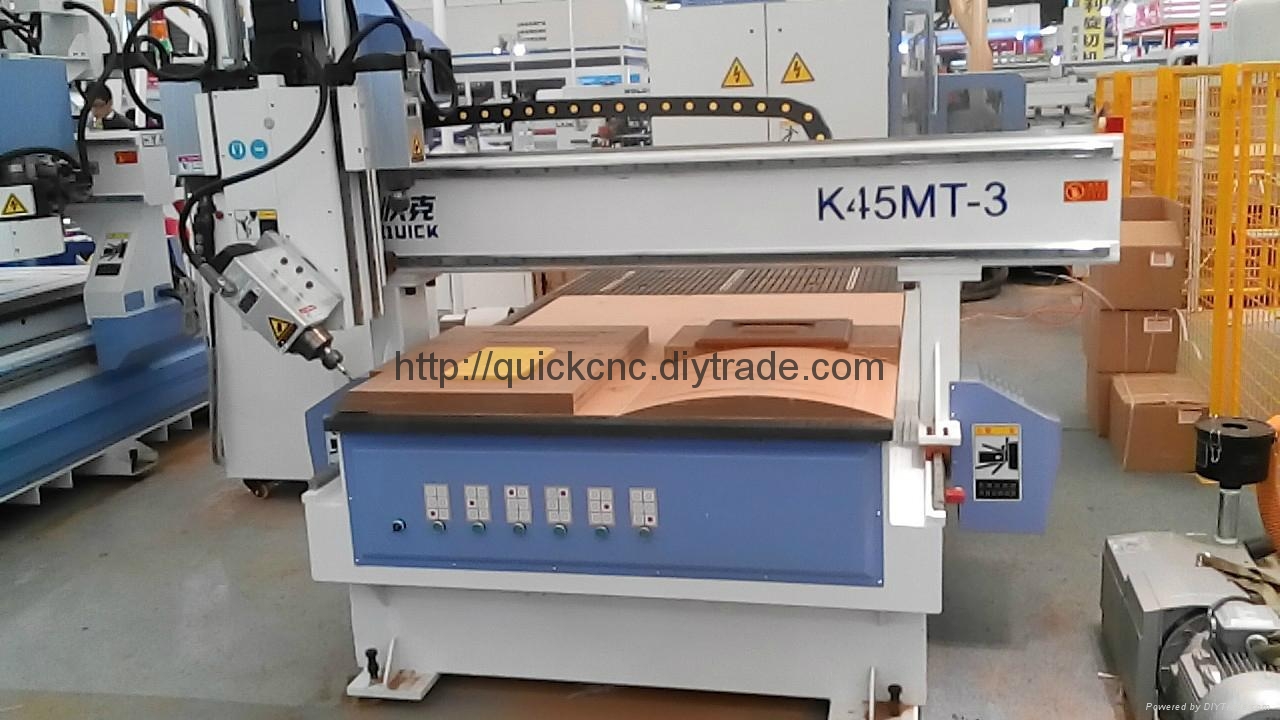

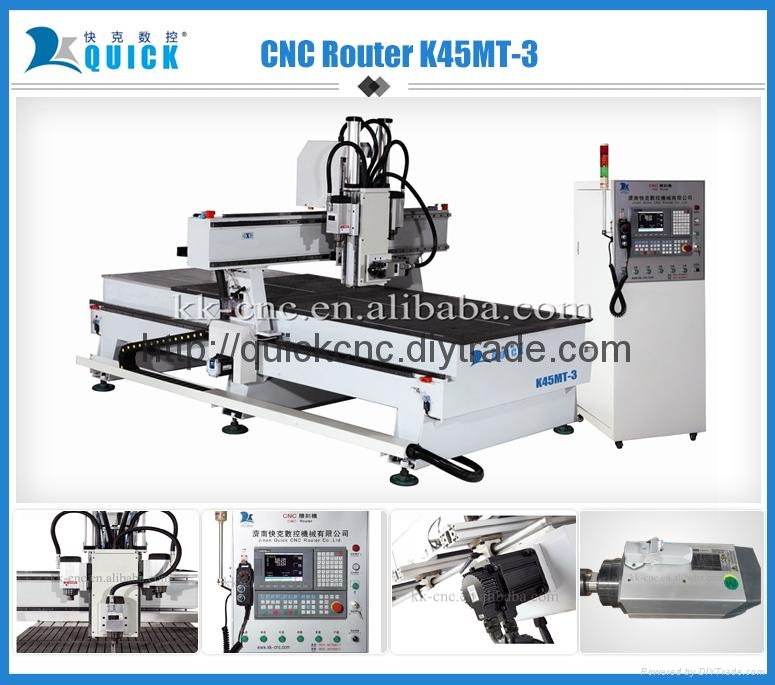

Model |
K45MT-3/1325 |
|
X-Y-Z axis working area |
1,300 x 2,500 x 300mm |
|
Machine size |
3370 x 2320 x 2160mm |
|
Repositioning resolution |
0.02mm |
|
System Resolution |
0.0025mm |
|
X-Y movement |
Rack and pinion, gear drive/Taiwan |
|
Z movement |
Ball screw drive/Germany |
|
Guide |
Linear ￠30 square/Taiwan |
|
Max. speed |
60,000mm/min |
|
Max. cutting speed |
30,000mm/min |
|
Spindle 1, Spindle 2, Spindle 3 |
6 kw (Chinese Fan cooling) |
|
Spindle 1, 2, 3 speed |
18,000rpm |
|
Inverter power |
11kw |
|
Drive motors |
servo |
|
Working voltage |
AC380V/50-60Hz, 3-phase |
|
Command code |
G code |
|
Computer interface |
USB 2.2 |
|
Collet |
ER32- 3.175mm, 6mm, 12.7mm |
|
Software |
Artcam & Alphacam Software/UK |
|
Controls |
SYNTEC system/Taiwan |
|
Packing dimensions |
3450 x 2280 x 1870mm,1600 kgs |
|
Standard equipment included |
1. Auto tool surface sensor 2. Manual oil lubrication system 3. Dust hood 4. T-slot vacuum table 5. Regenerative blower 7.5Kw |
