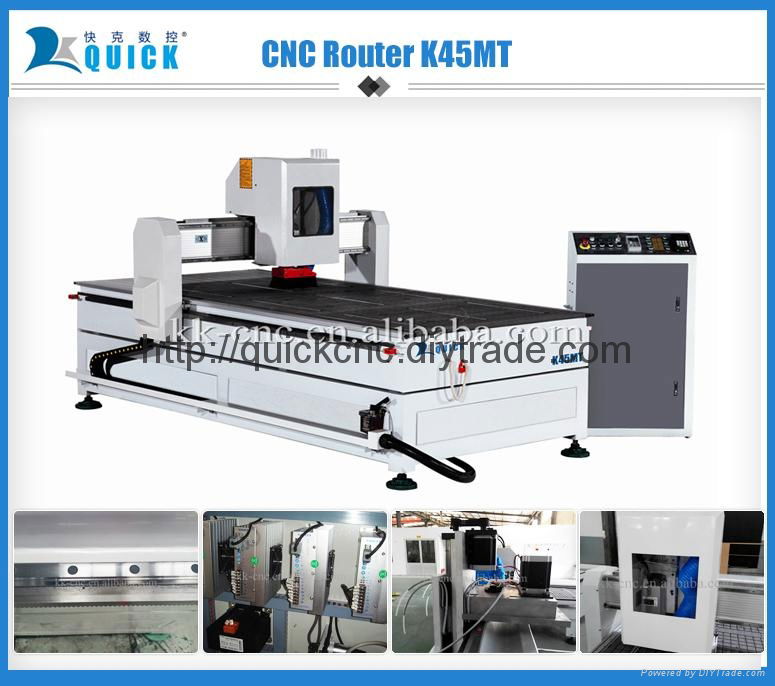

Quick CNC Router Woodworking machinery K45MT/2030

Quick CNC Router Woodworking machinery K45MT/2030 1

Quick CNC Router Woodworking machinery K45MT/2030 2

Model:	K45MT/2030
Brand:	QUICK CNC
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Engraving & Etching Machine
Label:	CNC router , MDF machine , woodworking machine
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Jinan Quick-Fulltek CNC Machinery Co., Ltd.

Free MemberShan Dong - China

Live Chat:

Last Online:09 Jul, 2023

Product Description

Model	K45MT/2030
X-Y-Z axis working area	2,000 x 3,000 x 200mm
Machine size	3,600 x 2,650 x 1,700mm
Resolutions	0.025mm
X-Y movement	rack and pinion, gear drive/Taiwan
Z movement	ball screw drive/Germany
Guide	Linear ￠20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle power	4.5kw(Chinese fan cooling)
Spindle speed	24,000rpm
Inverter power	7.5kw
Drive motors	stepper
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.2
Collet	ER32-3.175mm,6mm,12.7mm
Software	Artcam & Alphacam Software/UK
Controls	DSP A11 (Digital Signal Processor)
Packing dimensions	385022801870 mm,2500 kgs
Standard equipment included	1.Auto tool surface sensor 2.Manual oil lubrication system 3.Dust hood 4.T-slot vacuum table 5.Regenerative blower 7.5Kw

Product Image

Img 1

Img 2

Img 3

Img 4
