Multifunctional solder paste mixer

Model:WDF-1200D
Brand:VziLink
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:WDF-1200 multifuncti , solder paste mixer , Multifunctional sold
Price: ¥9800 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN WDFHKTW ELECTRONICS DEVELOPMENT CO.M,LTD

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:07 Apr, 2021

Product Description

WDF-1200 multifunctional solder paste mixer
1. unique shape design, beautiful, generous, practical, using advanced baking process.
The 2. mixing principle is based on the stirring mode of motor rotation and rotation. It does not need to remove the refrigerated solder paste first, then the solder paste can be returned to temperature in a short time, and the mixing can be used evenly.
3. apply all kinds of brand of 500g solder paste, at the same time can stir two cans, can save stirring time, improve production efficiency.
4. during the mixing process, the solder paste box does not need to be opened, so that the solder paste will not oxidize or absorb water vapor.
5. closed mixing can fix the running time, ensure the stability of solder paste (Q), and mix new and old solder paste, and obtain more active new solder paste.
6. this machine adopts JSS48B series time relay control, simple operation and high reliability.
Main technical indicators:
Voltage: AC 220V
Public rotation: 450 turns / points
Rotation: 900 turn / score
Outer size: 390x390x390mm
Delay accuracy: set time delay error <0.1% repeat delay error <0.1%, voltage change between AC85-264V has no effect.
Reduction method: power reduction and reduction
Control method: power delay
Repeat action: the interval is not less than 0.5S.
Output capacity: AC 250V 3A; DC24V 3A (hindrance)
Insulation strength: 100M Omega /500DC
Dielectric strength: 2 thousand and 500 volts / points
Power supply voltage: DC12V DC24V -5V~+10%
AC85-264V AC24V AC12V
Mechanical life: 1*1000000 electric life: 5*1000000
Power consumption: MAX300W
The ambient temperature is over: -23 C -60 C
Use of ambient humidity: 35-80% RH

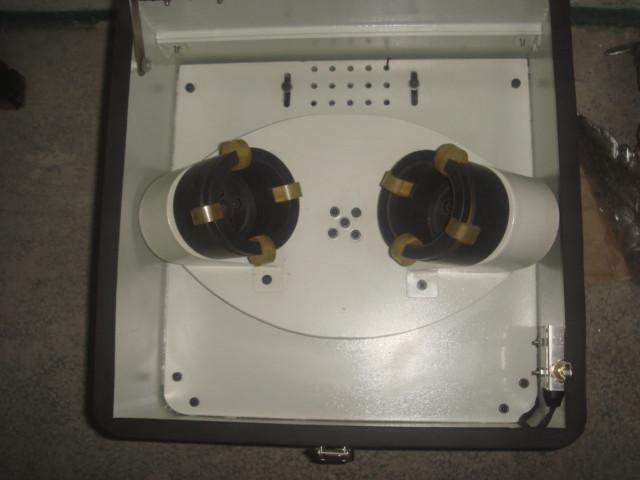

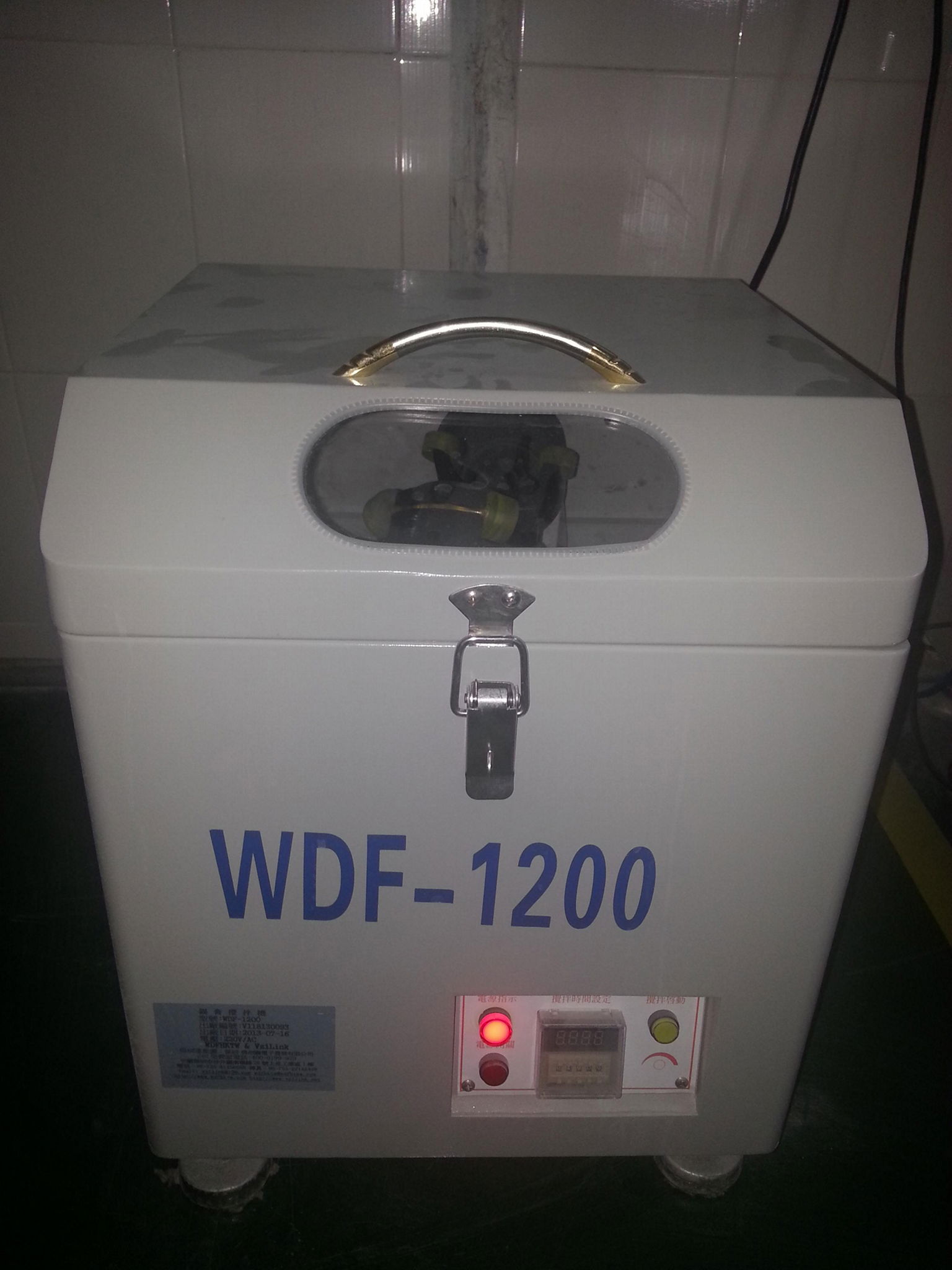

Product Image
