Panasonic NPM D3

Model:NPM D3
Brand:Panasonic
Origin:Made In Japan
Category:Electronics & Electricity / Other Electrical & Electronic
Label:NPM D3 , NPM TT2 , NPM W2
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN WDFHKTW ELECTRONICS DEVELOPMENT CO.M,LTD

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:11 Jun, 2021

Product Description

Panasonic NPM-D3







Panasonic NPM-D3 high-speed Module Mounter Performance Characteristics:



Matsushita NPM-D3 high speed modular placement machine in the integrated real assembly production line to achieve a high per unit area productivity placement & check a consistent system to achieve high and high quality production.



The customer is free to choose the actual production line - through plug and play function, can set the position of each working head freely.



Implement the overall management of production line, workshop and factory through system software - support planned production through the production line movement monitoring.



Panasonic NPM-D3 high-speed modular placement machine mounting head has a light 16 nozzle mounting head and 12 nozzle mounting head, 8 nozzle mounting head, 2 nozzle mounting head is optional, there is a double-track printing in the front, the back can be directly connected to the NPM-D3 dual-track modular machine.

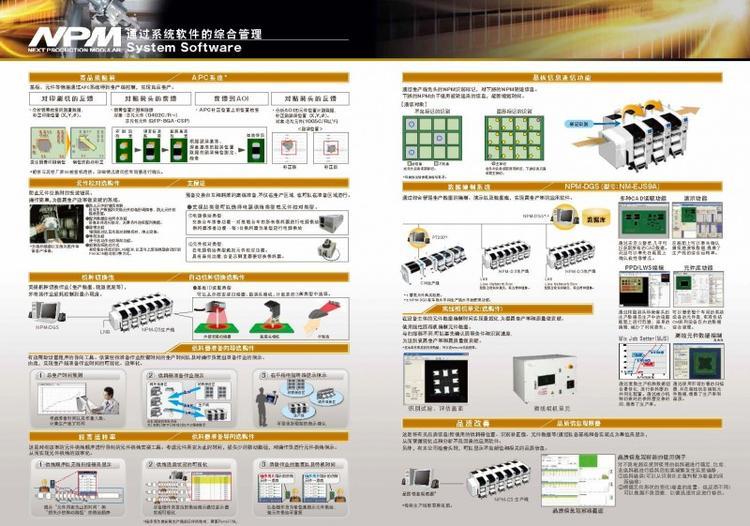

Panasonic NPM-D3 high-speed Module Mounter System Software Features:



1) Mounting height control system



2) Operation guidance system



3) APC system



4) Components check options



5) Automatic machine cutting optional parts



6) Optional parts for upper communication



Multi-function production line: adopt double-track conveyor belt, which can carry out mixed production of different kinds of substrates in the same production line



Specialty: realize higher area productivity and higher precision at the same time



High production mode: productivity increased by 20%, high actual installation precision equal (compared with NPM-D2) high speed: 84000CPH, mounting precision 40UM



High-precision mode: productivity increased by 9%, actual installation accuracy increased by 25% (compared with NPM-D2), high speed 76000CPH, mounting accuracy of 30UM



Panasonic NPM-D3 high speed modular mounter



Panasonic NPM-D3 high speed modular mounter



Panasonic NPM-D3 high-speed Module Mounter Specifications:



Model name: NPM-D3



Substrate size (mm) *1



Double-track type: L50×W50 ~ L510×W300



Monorail: L50×W50 ~ L510×W590



Substrate replacement time



Dual-track type: 0s* cycle time should not be 0s when the cycle time is below 3.6s.



Monorail type: 3.6S * when selecting the short specification conveyor belt



Power supply: three-phase AC200 V2.7 220380400420480 kVA



Air pressure source * 2:0.5mpa,100L/min (A.N.R.)



Equipment size (mm) *2: W832×D2652*3×H1444*4



Weight: 1680kg (subject only: depending on composition of optional parts)







Mounting head: 16 suction head (equipped with 2 cantilever) ON high production mode



Mounting speed: 84000CPH (0.043s/ chip)



CPH IPC9850-63300 * 5



Accuracy of mounting (Cpk ≥ 1) : ±40 m/ chip



Component size (mm) : 0402 chip *7 ~ L6×W6×T3



Component supply:



Compilation bandwidth: 8//56mm



8mm braiding: Max, with 68 connectors (8mm thin single type material rack and double type material rack, small reel)



Mounting head: 16 suction head (equipped with 2 cantilever) OFF high production mode



Mounting speed: 76000CPH (0.047s/ chip)



CPH IPC9850-57800 * 5



Accuracy of mounting (Cpk ≥ 1) : ±30 m/ chip (±25 m/ chip *6)



Component size (mm) : 030 chip *7 ~ L6×W6×T3



Mounting head: 12 suction head (equipped with 2 cantilever)



Mounting speed: 69000CPH (0.052s/ chip)



CPH IPC9850-50700 * 5



Accuracy of mounting (Cpk ≥ 1) : ±30 m/ chip



Component size (mm) : 0402 chip *7 ~ L12×W12×T6.5



Mounting head: 8 suction head (equipped with 2 cantilever)



Mounting speed: 43000CPH (0.084s/ chip)



Cpk ≥ 1) : ±30 m/QFP 12mm/32mm, ±50 m/QFP 12mm or less



Component size (mm) : 0603 chip ~ L100×W90×T28



Rod shape: Max,8 connectors, tray: Max.20 PCS (1 tray feeder)



Mounting head: 2 suction head (equipped with 2 cantilever)



Mounting speed: 11000CPH (0.327s/ chip)



IPC9850:8500CPH (0.423s/QFP)



Compilation bandwidth: 8/56/72/88/104mm


Lead Time:35
