Button inserter

Model:M2000
Brand:INSERT
Origin:Made In Japan
Category:Electronics & Electricity / Other Electrical & Electronic
Label:Button inserter , Button inserter , Button inserter
Price: US $30000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN WDFHKTW ELECTRONICS DEVELOPMENT CO.M,LTD

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:24 Sep, 2023

Product Description

Button inserter

IST-M2000 switch plug machine, the touch switch or bulk Paicha shaped electronic components by vibrating plate directional sorting and transported to the plug-in in the head, according to the scheduled program to 12000 / hour speed accurately inserted into the PCB board. Application software based on Chinese WindowsXP system, the operation interface is simple and easy to understand, man-machine interface dialogue, practical experience and scientific theory of integration, product quality and productivity improved.
Order products
Detailed introduction
Specification parameter:
The theoretical number is 12000 points / hour
The poor insertion rate was less than 500PPM
Insert direction 090 degrees
The basic size is 380mm*300mm maximum (beyond the range can be customized)
Basic thickness 0.79-2.36mm
Plug ins, components, objects, touch switches, etc.
The number of plug-in axes is 4
Machine size (L * w * h) 2220mm*1500mm*1600mm
Machine weight 1300KG
Use power 220V, AC (single phase), 50/60HZ, 1.2KVA
System protection uninterruptible power supply (UPS) configuration,
Use power 1.2KW
Use barometric 0.4-0.6Mpa
Gas consumption 0.2 cubic meters / minute
Use ambient temperature of 5-25 degrees
Machine noise 50 dB
Hole position correction method, machine vision system, multi-point MARK visual correction
Drive system, AC servo, AC motor
Data input mode, USB interface input (EXCEL document format)
Control system, Chinese operation interface (WINDOWS system control platform), LCD display
The worktable runs from left to right. Right from left (optional)
Circuit board conveying mode manual / automatic optional


Payment Terms:TT
Lead Time:20

Product Image

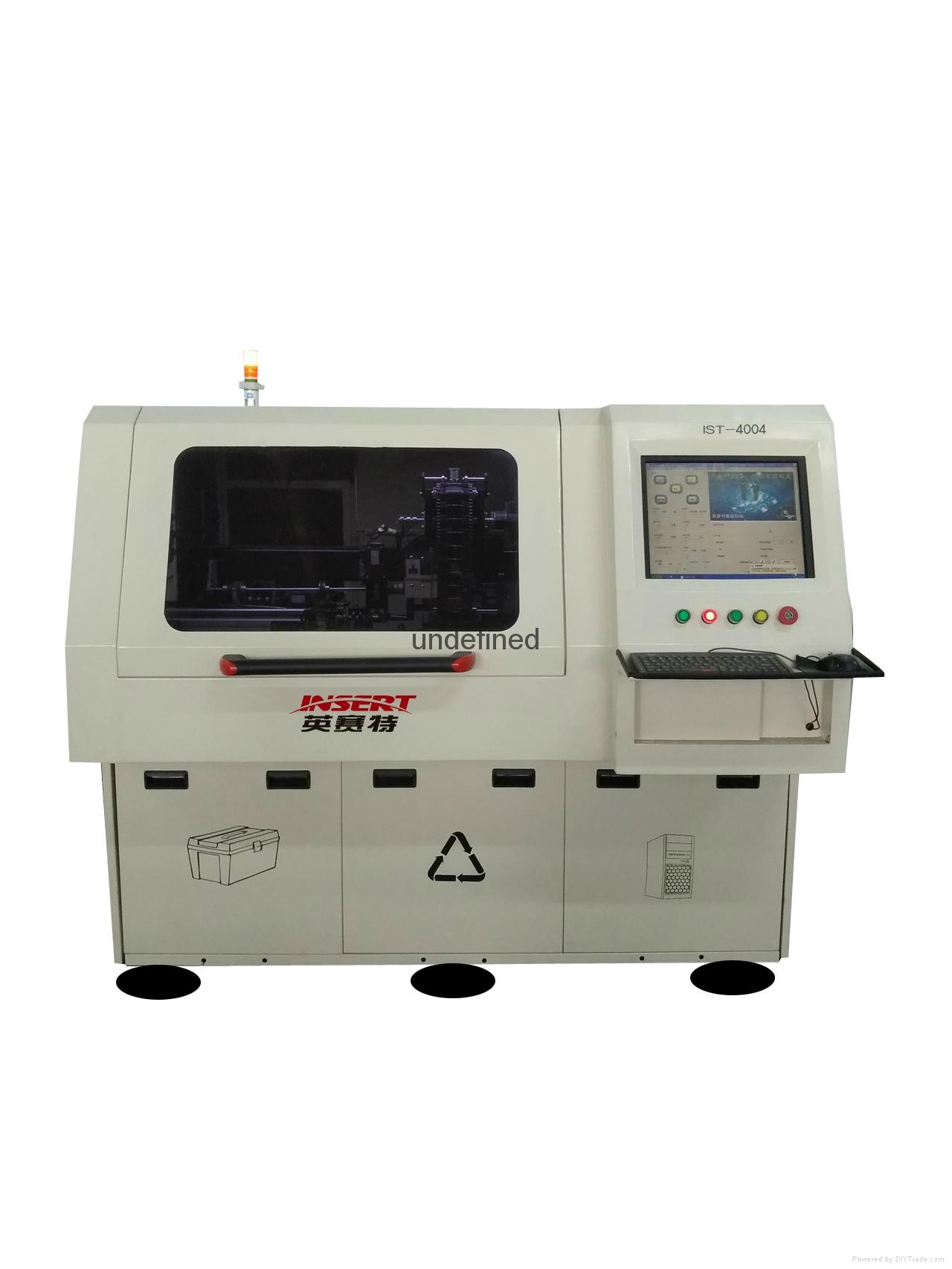

Button inserter 1
Img 1

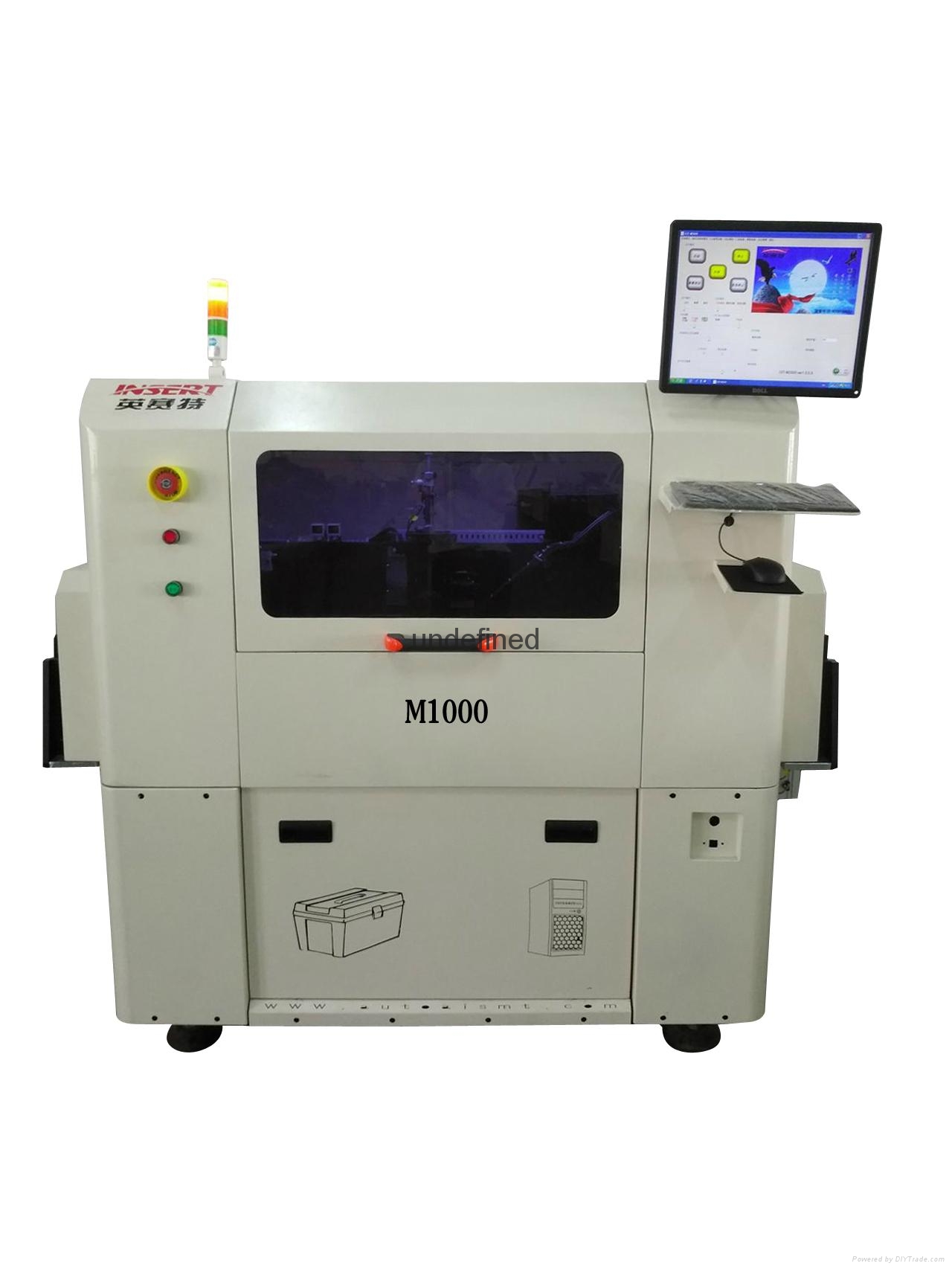

Button inserter 2
