| Model: | RS750ENT-GD40 |
|---|---|
| Brand: | RisingStar |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | display , lcd display |
| Price: |
US $630
/ pc
|
| Min. Order: | 1 pc |
| Last Online:13 Jun, 2025 |

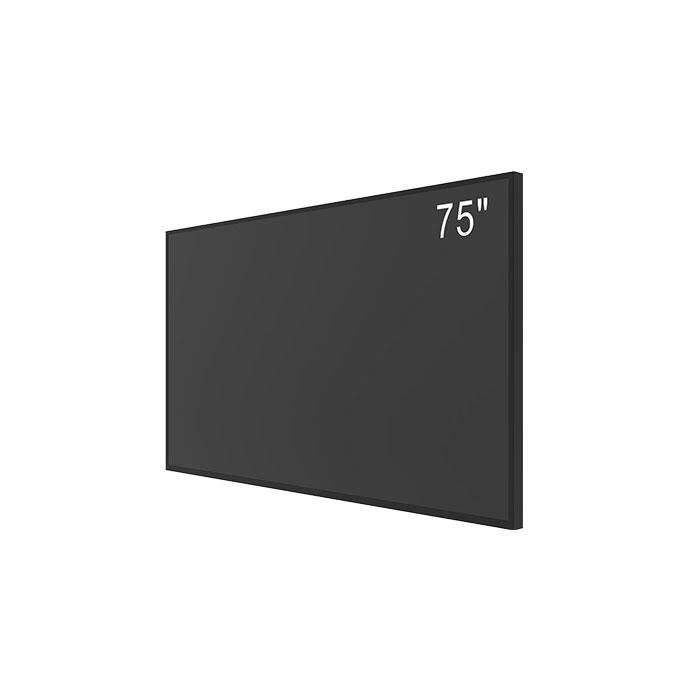

RS750ENT-GD40 Specification
| Panel Brand | RisingStar | Panel Model | RS750ENT-GD40 |
| Panel Size | 75″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 3840(RGB)×2160 | Pixel Format | RGB Vertical Stripe |
| Display Area | 1649.664（H）× 927.936(V) mm (A.A) | Bezel Opening | / |
| Outline Size | 1684.7（H）× 970.4(V) × 64.8(D) mm | Surface | Hard coating(2H), Anti-glare low reflection treatment of the front polarizer (Haze 3%(Typ.)) |
| Brightness | 4000 cd/m²or customized | Contrast Ratio | 1100:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M | Response Time | 8 (Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 24V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 51 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.
