| Model: | RS980DQY-GD35 |
|---|---|
| Brand: | RisingStar |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | display , lcd display |
| Price: |
US $672
/ pc
|
| Min. Order: | 1 pc |
| Last Online:13 Jun, 2025 |

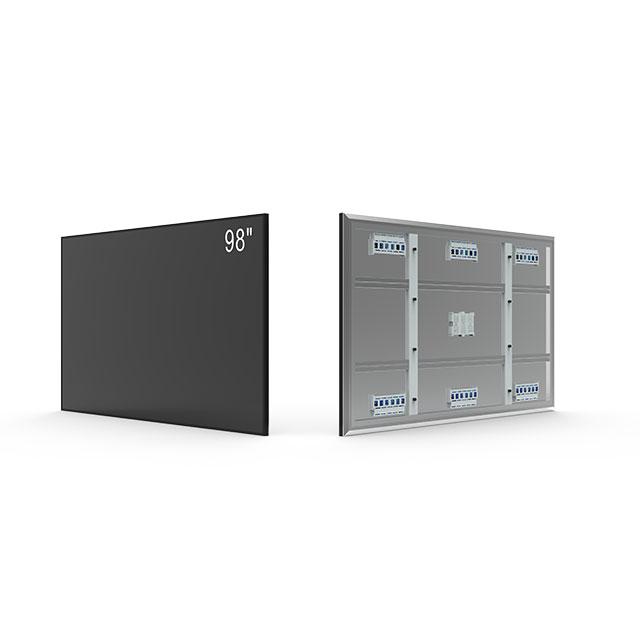

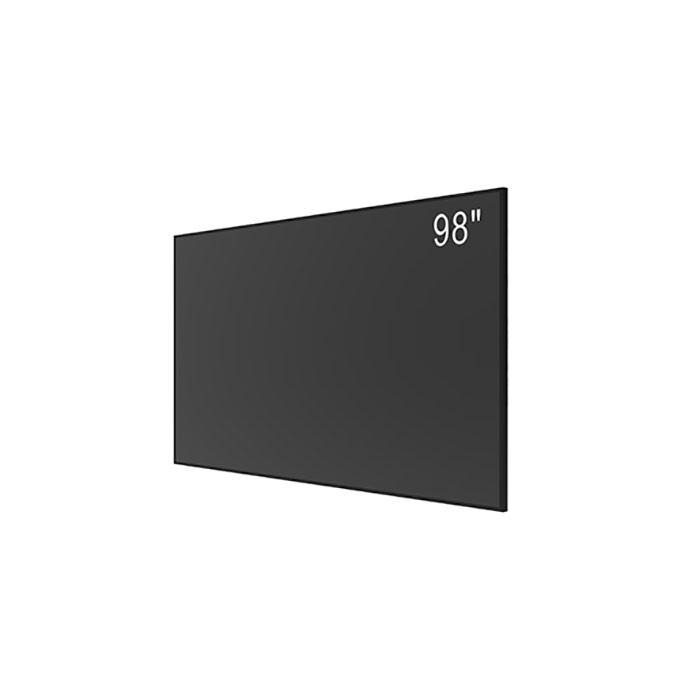

RS980DQY-GD35 Specification
| Panel Brand | RisingStar | Panel Model | RS980DQY-GD35 |
| Panel Size | 98″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160 | Pixel Format | RGB Vertical Stripe |
| Display Area | 2158.85(H)×1214.35(V) mm (A.A) | LCD screen | S-IPS |
| Outline Size | 2192.8(H) × 1248.4(V) × 63.5(D) mm | Surface | Hard coating(2H), Anti-glare low reflection treatment of the front polarizer (Haze 28%(Typ.)) |
| Brightness | 3500 cd/m²or customized | Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 1.07B 68% NTSC | Response Time | 8 (Typ.)(Tr/Td) ms |
| Frequency | 60Hz | Supply voltage | 24.0V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 51 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
。
。
