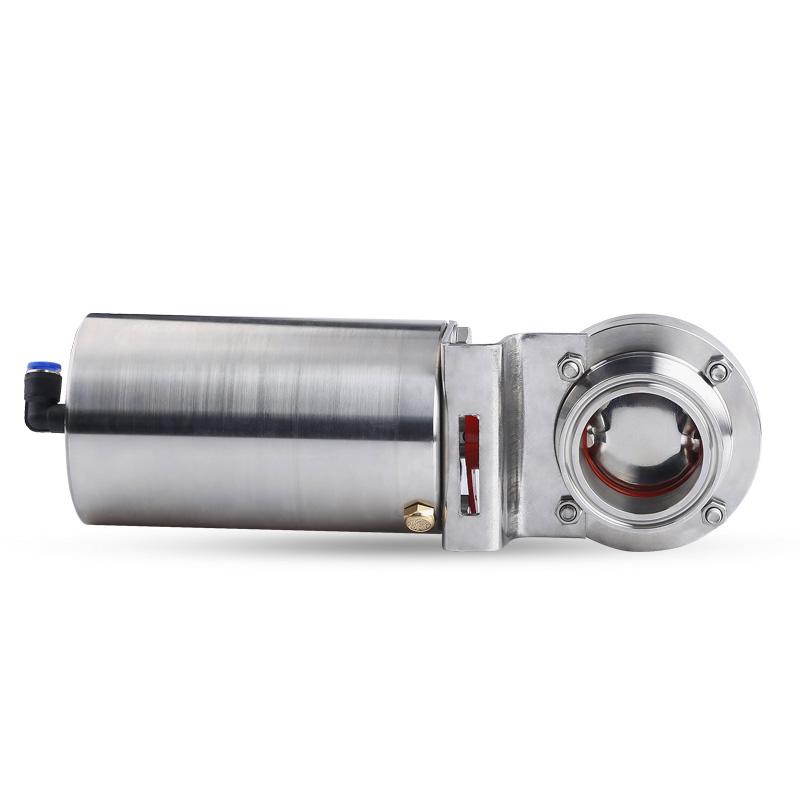

Stainless steel single acting pneumatic quick release butterfly valve is a valve that combines pneumatic technology and stainless steel material. It has excellent corrosion resistance, high temperature resistance, and pressure resistance, and is widely used in various industrial fields.
Definition and purpose
The stainless steel single acting pneumatic quick release butterfly valve is driven by a pneumatic actuator to achieve the opening and closing function of the valve. The valve body is made of stainless steel material, which has excellent corrosion resistance, high temperature resistance, and pressure resistance. This type of valve is suitable for multiple fields such as petroleum, chemical, metallurgical, power, and water treatment, and performs particularly well in situations where rapid opening and closing is required.
Structure and Working Principle
The core structure of stainless steel single acting pneumatic quick release butterfly valve includes valve body, valve stem, valve disc, sealing ring and pneumatic actuator. The valve body is mostly made of stainless steel material, and the valve stem connects the valve disc and the pneumatic actuator. The sealing ring ensures the tightness of the valve. Pneumatic actuators drive the opening and closing of valves by manipulating the air source. When the air source is introduced into the actuator, the piston is pushed by pressure to rotate and open the valve disc, allowing fluid to pass through; When the gas source is cut off, the valve disc rotates to close and block the fluid.
Performance characteristics
Corrosion resistance: Made of stainless steel material, suitable for working environments with various corrosive media.
High temperature resistance: It can maintain stability even in high temperature environments.
High pressure resistance: able to withstand significant pressure.
Simple structure: installation and maintenance are relatively easy.
Low fluid resistance: The rotational motion characteristics reduce energy consumption.
High sealing and reliability: ensuring the sealing effect of the fluid when passing through, extending its service life.
Application scenarios
Stainless steel single acting pneumatic quick release butterfly valves are widely used in fields such as petroleum, chemical, power, and water treatment, especially in situations where rapid opening and closing are required. Its fast opening and closing characteristics make it important for industrial fluid control applications.
