| Model: | E-paper lcd |
|---|---|
| Brand: | Sinocrystal |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 2 inch e-paper lcd , 7.5 inch eink lcd , epaper lcd |
| Price: |
US $3
/ pc
|
| Min. Order: | 1 pc |
| Last Online:25 Apr, 2025 |
Introduction:
SCP021001-V01 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 2.13inch active area contains 250×122 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.
Features
◆ 250e×122 pixels display
◆ High contrast High reflectance
◆ Ultra wide viewing angle Ultra low power consumption
◆ Pure reflective mode
◆ Bi-stable display
◆ Commercial temperature range
◆ Landscape portrait modes
◆ Hard-coat antiglare display surface
◆ Ultra Low current deep sleep mode
◆ On chip display RAM
◆ Waveform can stored in On-chip OTP or written by MCU
◆ Serial peripheral interface available
◆ On-chip oscillator
◆ On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆ I2C signal master interface to read external temperature sensor
◆ Built-in temperature sensor
Mechanical Specification
|
Parameter |
Specifications |
Unit |
Remark |
|
Screen Size |
2.13 |
Inch |
|
|
Display Resolution |
122(H)×250(V) |
Pixel |
DPI:130 |
|
Active Area |
23.705×48.55 |
mm |
|
|
Pixel Pitch |
0.1942×0.1942 |
mm |
|
|
Pixel Configuration |
Square |
||
|
Outline Dimension |
29.2(H)×59.2 (V) ×1.0(D) |
mm |
|
|
Weight |
3.2±0.5 |
g |

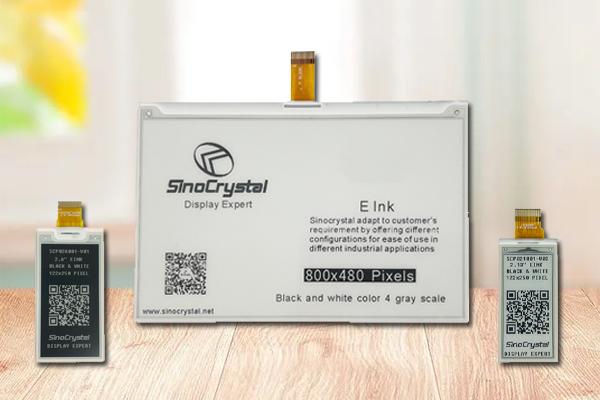

SCP075001-V03 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design. The 7.5” active area contains 800x480 pixels. The module is a TFT-array driving electrophoretic display, with integrated circuits including ga
Introduction:
SCP075001-V03 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference
system design. The 7.5” active area contains 800x480 pixels. The module is a TFT-array driving electrophoretic
display, with integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator,
DC-DC,SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label
(ESL) System.
Features
◆ 800×480pixels display
◆ White reflectance above 30%
◆ Contrast ratio above 8:1
◆ Ultra wide viewing angle
◆ Ultra low power consumption
◆ Pure reflective mode
◆ Bi-stable display
◆ Ultra Low current deep sleep mode
◆ On chip display RAM
◆ Waveform stored in On-chip OTP
◆ Serial peripheral interface available
◆ On-chip oscillator
◆ On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆ I2C signal master interface to read extemal temperature sensor
Application
Electronic Shelf Label System
Mechanical Specification
4.1 Dimension
Parameter Specifications Unit
Screen Size 7.5 Inch
Display Resolution 800(H)×480(V) Pixel
Active Area 163.2(H) × 97.92 (V) mm
Pixel Pitch 204(H) × 204(V) um
Pixel Configuration Rectangle
Outline Dimension 170.2 (H) × 111.2(V) ×1.26(D) mm
