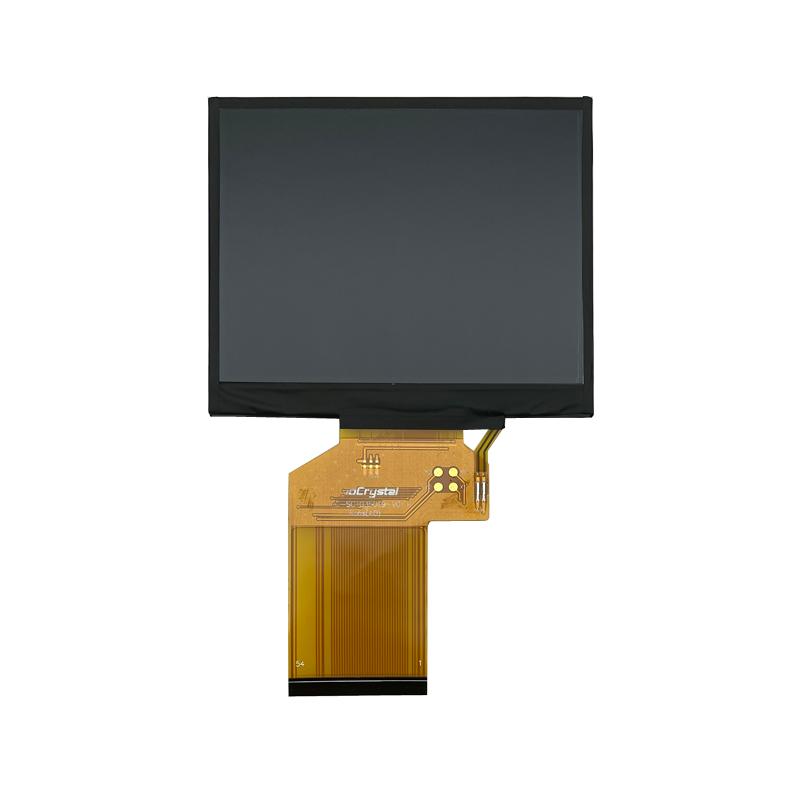

| Model: | SCT035019-V01 |
|---|---|
| Brand: | Sinocrystal |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 3.5 inch lcd , 3.5 inch tft lcd , tft lcd manufacturer |
| Price: |
US $5
/ pc
|
| Min. Order: | 10 pc |
| Last Online:25 Apr, 2025 |
Introduction:
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 320 x RGB x 240 | Dots |
| Module Size ( W×H×T ) | 76.9 x 63.9 x 3.27 | mm. |
| Active Area ( W×H ) | 70.08*52.56 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | Parallel 24-bit RGB | – |
| Driving IC | ST7272A | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | Normal Black | – |
| Backlight Type | LED x 6 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
| 1 | VBL- | P | Backlight Power, cathode. |
| 2 | VBL- | P | Backlight Power, cathode. |
| 3 | VBL+ | P | Backlight Power, anode. |
| 4 | VBL+ | P | Backlight Power, anode. |
| 5 | NC | – | No connection |
| 6 | NC | – | No connection |
| 7 | NC | – | No connection |
| 8 | RESET | I | Hardware reset |
| 9 | CS | I | SPI Interface Chip Select |
| 10 | SCL | I | SPI Interface Data Clock |
| 11 | SDA | IO | SPI Interface Data |
| 12~19 | B0-B7 | I | 8 bit data bus display blue data |
| 20~27 | G0-G7 | I | 8 bit data bus display green data |
| 28~35 | R0-R7 | I | 8 bit data bus display red data |
| 36 | HSYNC | I | Horizontal sync input |
| 37 | VSYNC | I | Vertical sync input |
| 38 | DCLK | I | Pixel clock input |
| 39 | NC | – | No connection |
| 40 | NC | – | No connection |
| 41 | VCC | P | Power supply |
| 42 | VCC | P | Power supply |
| 43 | NC | – | No connection |
| 44 | NC | – | No connection |
| 45 | NC | – | No connection |
| 46 | NC | – | No connection |
| 47 | NC | – | No connection |
| 48 | NC | – | No connection |
