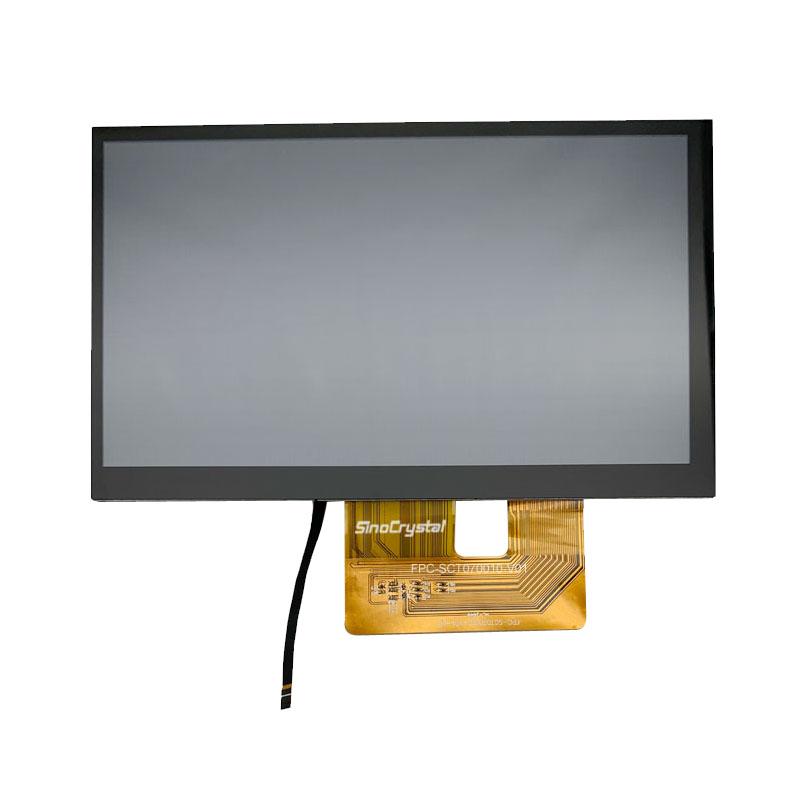

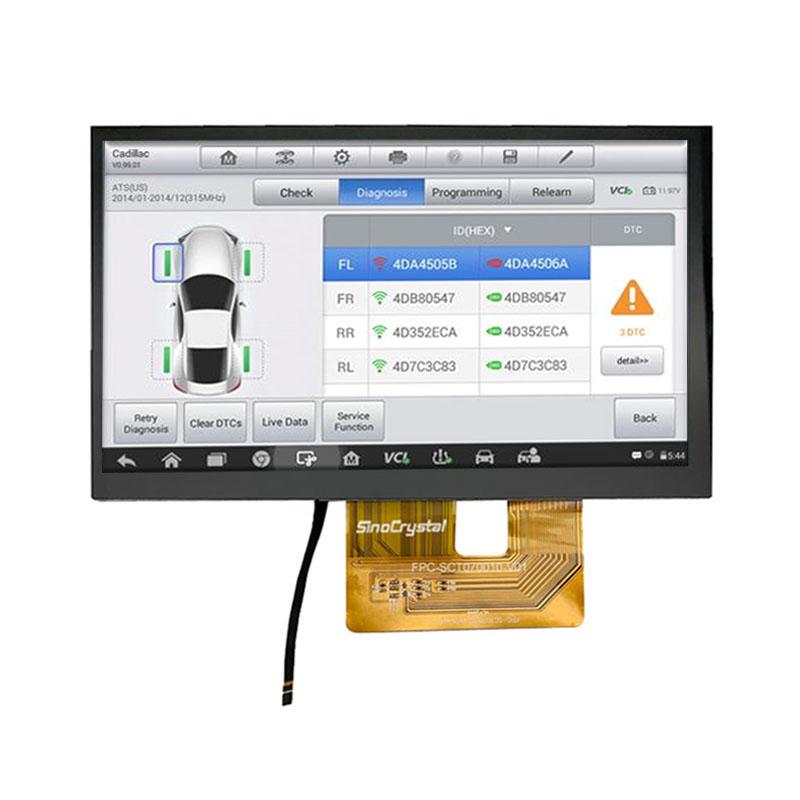

| Model: | SCT070013-V01 |
|---|---|
| Brand: | Sinocrystal |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 7 inch tft lcd , 7 inch HMI Display , 7 inch IPS LCD |
| Price: |
US $8
/ pc
|
| Min. Order: | 1 pc |
| Last Online:25 Apr, 2025 |
Introduction:
Mechanical Specifications
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 1024 x RGB x 600 | Dots |
| Module Size ( W×H×T ) | 163.8 x 97.0 x 2.71 | mm. |
| Active Area ( W×H ) | 154.21 x 85.92 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.1506 x 0.1432 | mm. |
| Color depth | 16.7M（MAX） | colors |
| Interface | MIPI | – |
| Driving IC | EK79007 or Compatible | – |
Display Specifications
| Item | Nominal Dimension | Unit |
|---|---|---|
| Operating temperature | -20 ~70 | ℃ |
| Storage temperature | -30~80 | ℃ |
| LCD Type | a-Si TFT | – |
| LCD Mode | Normal Black | – |
| Backlight Type | LED x 24 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
|---|---|---|---|
| 1 | LEDA | P | Backlight Power, anode. |
| 2 | LEDA | P | Backlight Power, anode. |
| 3 | VGH | P | Power supply for Gate ON Voltage |
| 4 | VGL | P | Power supply for Gate OFF Voltage |
| 5 | UPDN | I | Horizontal direction, up or down. |
| 6 | SHLR | I | Horizontal direction, left or right. |
| 7 | LEDK | P | Backlight Power, cathode. |
| 8 | LEDK | P | Backlight Power, cathode. |
| 9 | AVDD | P | Power supply analog circuit |
| 10 | GND | P | Power ground |
| 11 | D3P | I | MIPI data input |
| 12 | D3N | I | MIPI data input |
| 13 | GND | P | Power ground |
| 14 | D2P | I | MIPI data input |
| 15 | D2N | I | MIPI data input |
| 16 | GND | P | Power ground |
| 17 | CLKP | I | MIPI clock input |
| 18 | CLKN | I | MIPI clock input |
| 19 | GND | P | Power ground |
| 20 | D1P | I | MIPI data input |
| 21 |
