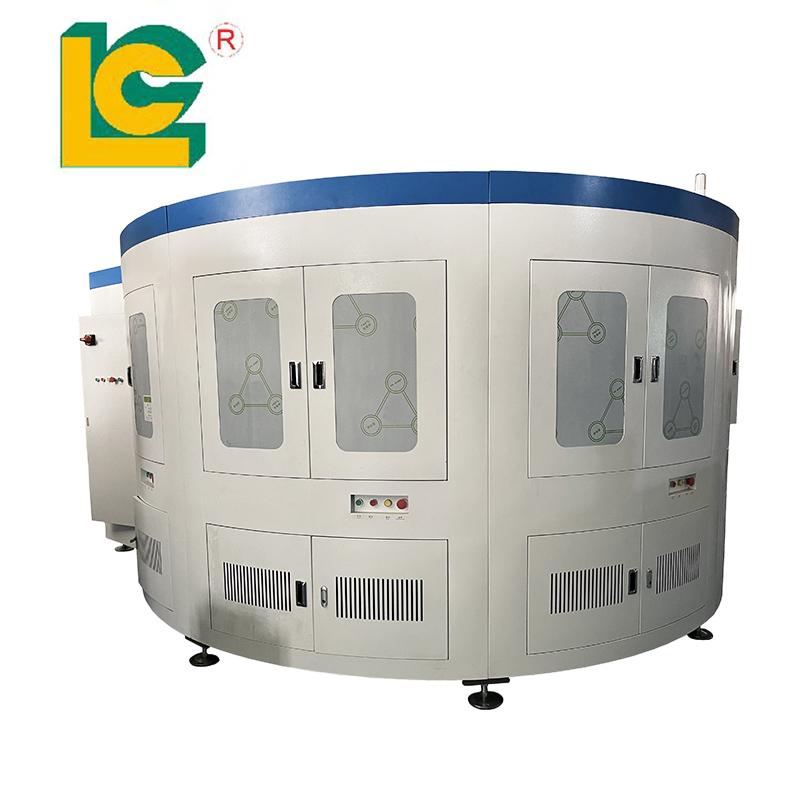

4 Color Full Servo Screen Printing Machine

1.10-inch WEIMVIEW network touch screen (optional iPad installed app as the control screen of the machine)

2. BECKHOFF machine controller from Germany

3. High-precision servo turntable (GOIZPER) drive

4. The three axes of the printing mechanism are servo motors and ball screws, a total of 2 groups

5.12 Axis tube seat is controlled and operated by absolute value servo motor

6. The main drive is controlled by bus-type servo

7. The ball screw and guide rail of this machine are made of Japanese THK brand, which has higher precision and longer life.

8. Optional CCD vision for pattern positioning detection to achieve multi-color overprinting

9. The product loading and unloading mechanism is driven by German Beckhoff + Huichuan servo drive to run more smoothly and accurately

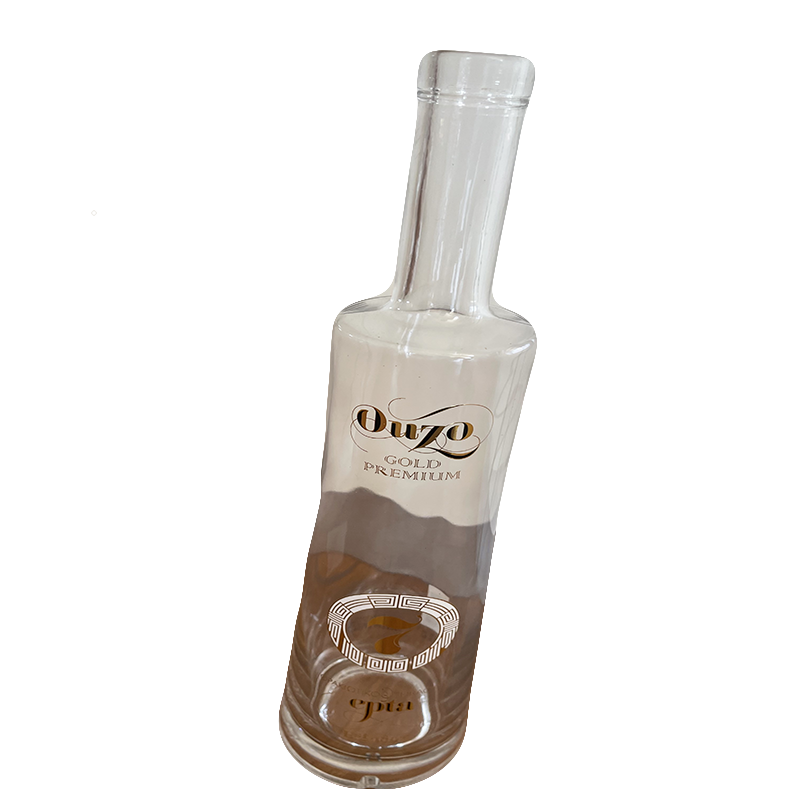

This model is a (4-color) automatic servo screen printing machine, which is suitable for cylindrical, square and special-shaped products. The printing ink can be selected from high temperature ordinary ink, UV ink and LED ink.

Using high-precision servo turntable, full servo control system, printing bottles of different shapes without gears, optional visual positioning system and mechanical positioning structure, fast printing speed, stable and reliable quality, convenient and quick deb ing.

Specifications
