Bottle series flat/convexity screen printer Bottle Silk Screen Printing Machine

Model:LC-PA-400E
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:BOTTLES printer , cosmetic printer , bottle printing
Price: -
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:12 Jul, 2024

Product Description

Our cylinder screen printer is multifunctional screen printing machine. it  suitable to print on flat,

round, oval shaped products.such as metal, plastic, ceramic, glass, wood etc.Printing objects such as

lipstick, cosmetic bottles, scour bottles, drink bottles, oil-filter shell etc.


Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2,

3^colors.


Parameter:

1. Model number: LC-PA-400E

2. Product appearance: Round /oblate /flat

3. (Round)Max. Printing diameter: Φ120mm

4. (Round)Max printing arc length: L: 370mm

5: (oblate)Max printing diameter: 120mm

6:(flat) Max printing area: 320*; 220mm

7:Printing Speed: 1200 PC/H

8: Machine/ Weight: 145kg

9. Air pressure: 0.5Mpa

10. Voltage power: 220V/ 60HZ or 110V/50HZ

Package dimensions: 104*94*147cm

Package weight:  290kg

Model number

LC-PA-300E

LC-PA-400E

LC-600E

LC-700E

LC-1200E

(Round)Max Printing diameter

82 mm

120mm

180mm

220mm

375mm

(Round)Max printing area

300×260mm

300×360 mm

300×570mm

350×670mm

420×1170mm

(oblate)Max printing diameter:

420mm

500mm

/

/

/

(flat) Max printing area

260*220mm

320*; 220mm

/

/

/

Max Workpiece rake

<14°

<14°

<14°

<14°

<14°

Air pressure

6bar

6bar

6bar

6bar

6bar

power

50W

50W

50W

50W

50W

Voltage

AC110V/220V

AC110V/220V

AC110V/220V

AC110V/220V

AC110V/220V

Printing speed

1300P/H

1200P/H

1100P/H

900P/H

800PH

Machine appearance(mm)

850×850×1280

1080×850×1280

1200×1100×1450

1200×1180×1450

1720×1600×1650

Machine weight

120kg

145kg

200kg

210kg

230kg


Advantages

1. Fully automatic control by microcomputer & easy handling

2. Four figures automatic counter

3. Round printing function (taper section)

4. Automaticoil scrabbing, oil return and lifting table

5. Adujustability of routs and speeds

6. Self-poise scraper to balance printing pressure

7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)

8. High precision and easy & quick adjustability

Main Parts FESTO cylinde made by Geramny

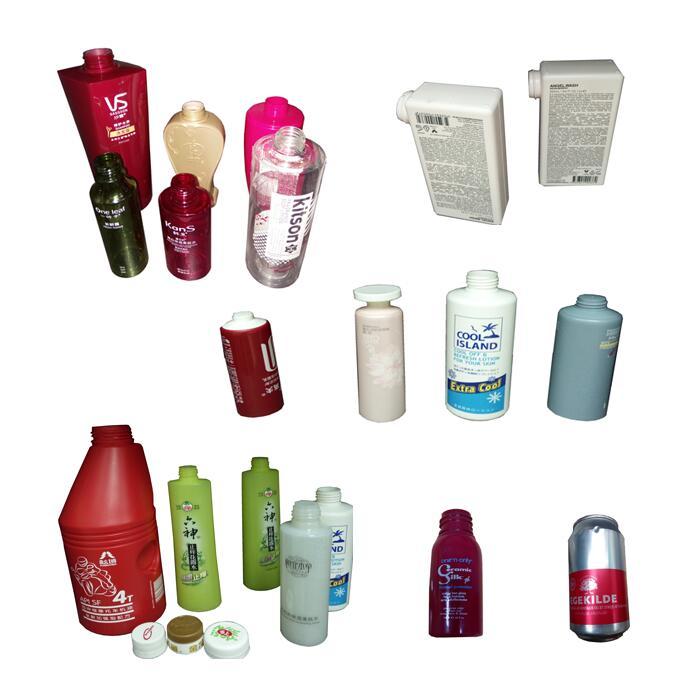

Application area: detergent bottles,Pens,beverage bottles,cups, cans,Cosmetics package box,

lipstick tube


Testing Please provide:

1.110V or 220V power supply.

2. 5-7 bar compress air.

3. Esposal screen plate 1 pcs.

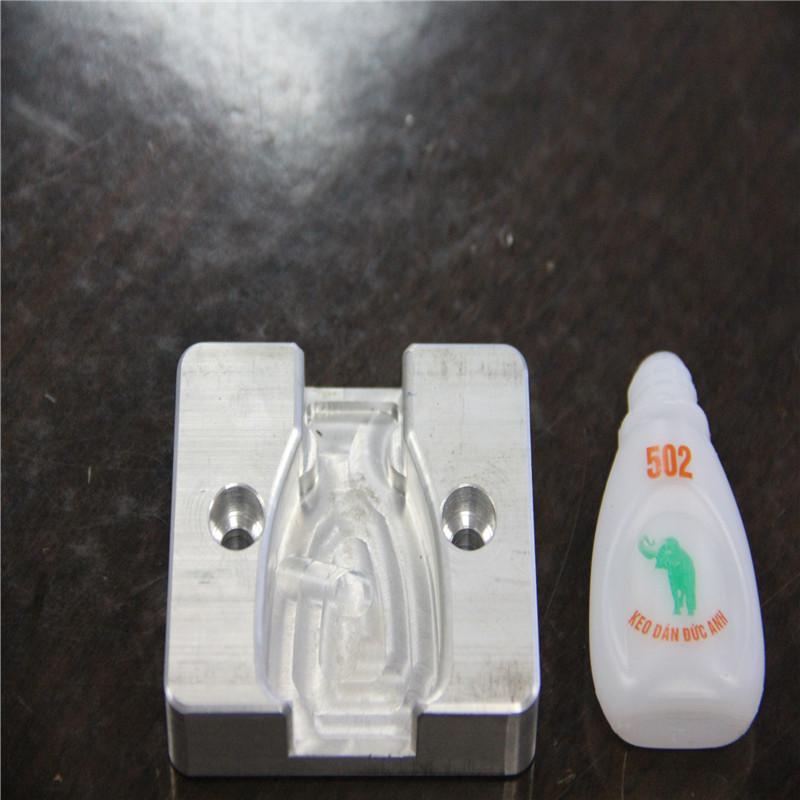

4. A jig 1pcs.

5. 5-10 pcs product samples.

Price Terms ---FOB or CFR

Payment Terms --T/T or L/C

Packing ---Wooden case

Lead Time--- 7 days after confirm Payment.

SKU --18set

Standards Certificate--- CE

Machines Fittings ---Screen Cliche

Gross Weight ----290KG

Main Parts FESTO cylinde made by Geramny

Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick

tube

https://www.youtube.com/watch?v=CizOO0f_wc4
