Round/Plane Surface UV Drying Machinery

Model:LC-UV4000S2
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:uv paint dryer oven , uv spot curing , UV dryer machinery
Price: -
Min. Order:1 unit
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:07 Dec, 2022

Product Description

Description
LC-UV4000S2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it also can be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles. Suitable for bottles made by plastic, Metal, Glass ETC.

1 .UV drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3.  UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

parameter
1. Max UV curing round bottle high: 320mm

2. Max  UV curing Products width: 400mm

3. Container mouth diameter range: 12-24mm

4. curing size of workpiece: Cylinder  products: 320*400mm

5. Conveyor speed:0~10m/min

6. (United Kingdom)UV lamp power: 4KW

7.  UV Drying products  speed:1800~3000PCS/HR

8.Total power:5KW

9. Machine dimension: L:2000mm W:800mm H:1500mm

Package dimensions:  216*101*187cm

Package weight:  411kg



Free Fitting:
1 pcs UV lamp(4KW)
Testing Please provide:
1. 380V power supply.



Product Image

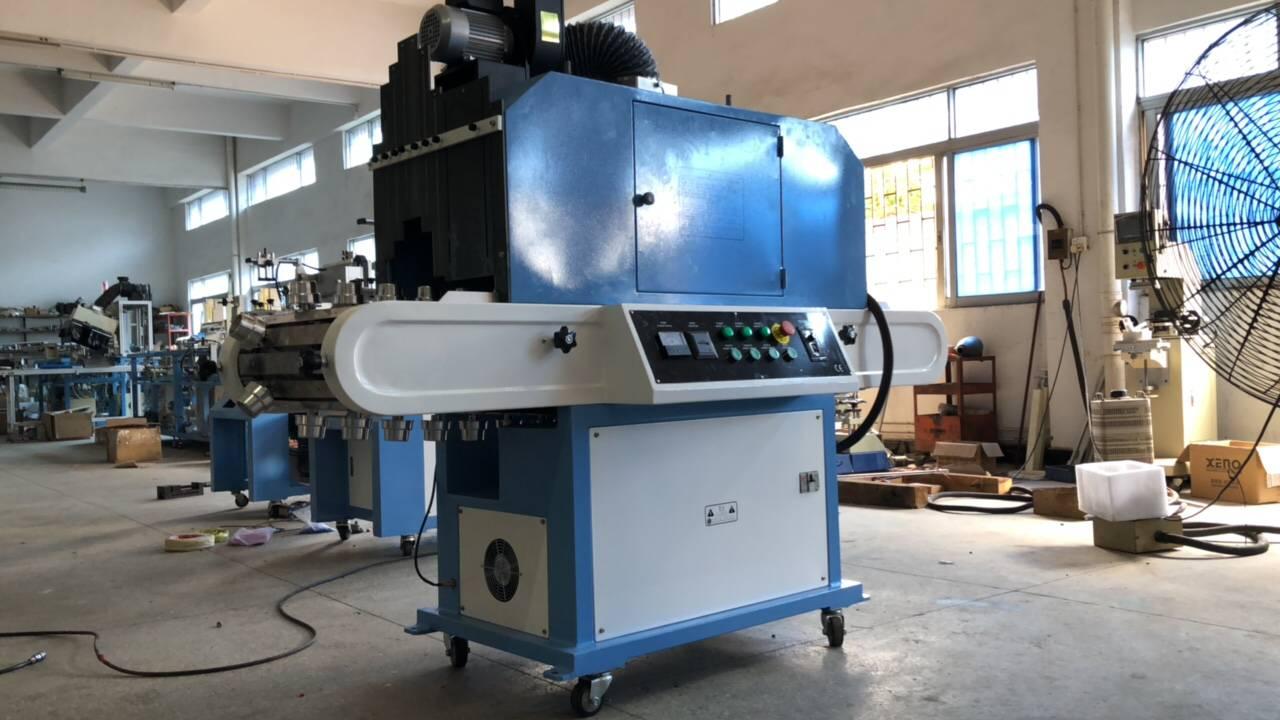

Round/Plane Surface UV Drying Machinery 1
