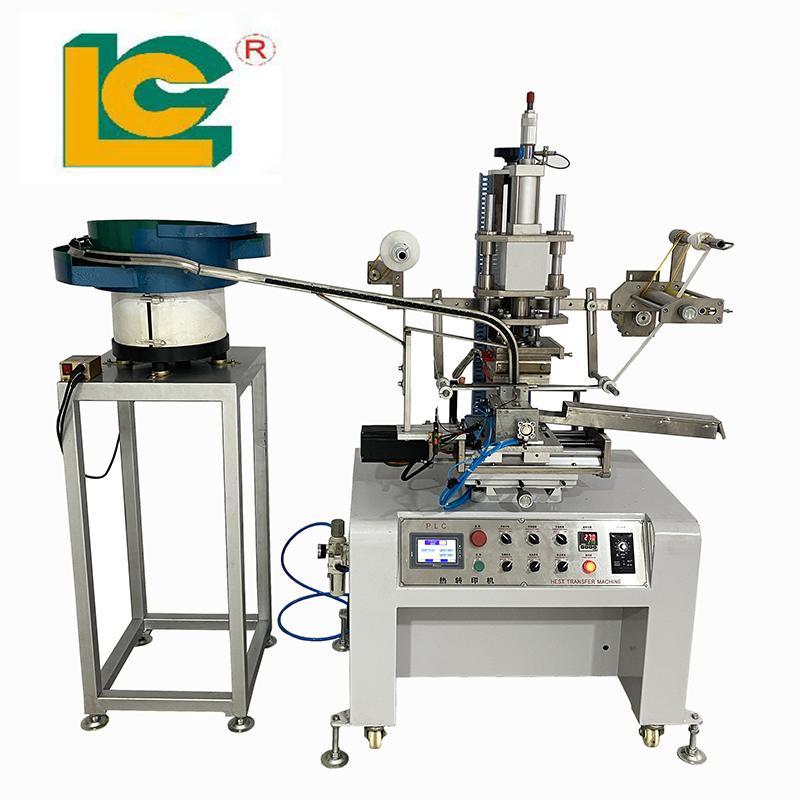

| Model: | LC-PT-ZD |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Automatic hot stampi , Number Wheel Combina , gilding press machin |
| Price: |
US $8499
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:18 Apr, 2024 |
Advantage:
Product features: Adopt imported PLC control system, automatic feeding, automatic material sorting, automatic hot stamping, automatic unloading; photoelectric automatic tracking monitoring, automatic shutdown when fault occurs; it has the advantages of digital control, easy operation and stable performance.
Product Description:
(1) Computer control, man-machine interface is easy to operate
(2) Hot stamping pressure, temperature and speed can be adjusted
(3) Built-in self-counting, automatic positioning
(4) Automatic foil feeding, foil retracting and adjustable, no foil every time the machine stops
(5) The height of the hot stamping head is adjustable and the range is large
(6) The conveyor belt is used for feeding, and the product is automatically output.
Equipment parameters:
1. Mechanical model: LC-PT-ZD
2. Max hot stamping size: Φ20x60（mm）
3. Hot stamping temperature selection range: room temperature 0℃～300℃
4. Hot stamping pressure range: 250KG
5. Maximum hot stamping speed: 60 pcs/min
6. Rated voltage: 220V60/50HZ
7. Heating power: 2000W
8. Air pressure: 5-7bar
9. Machine size: 1250*800*1850mm
10. Machine weight: 500KG
