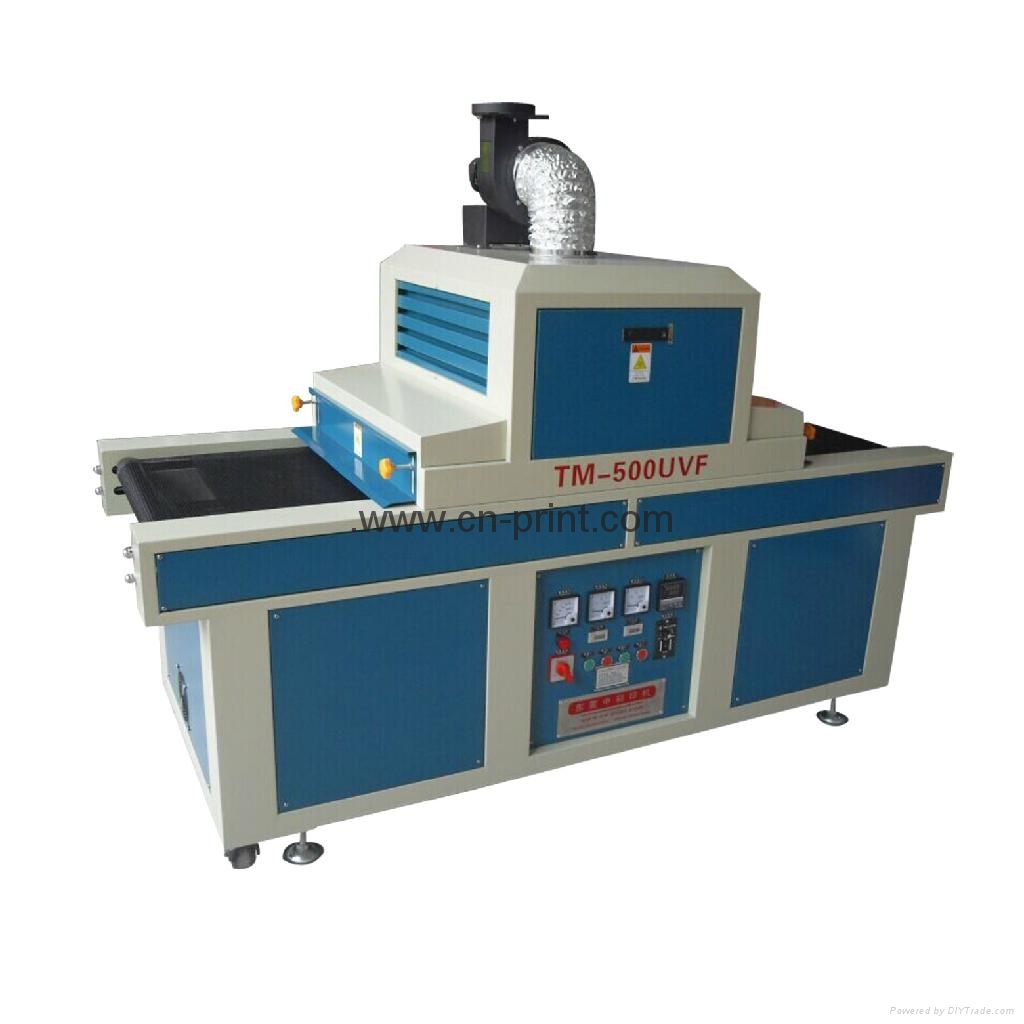

UV Drying Machine TM-500UVF

Model:TM-500UVF
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:UV drying Machine , UV coating machine , UV unit
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Group Limited

Biz MemberGuang Dong - China
Live Chat:
Last Online:15 Oct, 2019

Product Description

Our UV Curing Machine TM-500UVF   be fit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1. Model  NO. TM-500UVF
2. UV Drying  products:500*100*2000mm
3. Conveyor belt size:L2000* W500MM
4.UV Lamp power:2PCS*3KW /380V
5.Total wattage:7.5KW
6.Wind fan wattage: 500W/380V
7.motor wattage:1000W/1P/380V
8.Conveyor speed:0~10m/min
9.Speed change ways:Continue
10.UV Machine  Dimension:L*W*H2020*700*1350
11.Weight:250kg


Model number

TM-500UVF

TM-600UVF

TM-700UVF

TM-800UVF

TM-900UVF

TM-1200UVF

max product width

500mm

600mm

700mm

800mm

900mm

1200mm

max product length

2000mm

2000mm

2000mm

3000mm

3000mm

3000mm

 UV Process shine area

500*2000mm

600×2000mm

700×2000mm

800*3000mm

900*3000mm

1200*3000mm

  conveyer speed:

0-10m/min

0-10m/min

0-10m/min

0-10m/min

0-10m/min

0-10m/min

UV Lamp power

3KW ×2PCS/

3KW ×2 PCS/

3KW ×2 PCS/

5KW*2pcs

5.6KW*2PCS

5.6KW*2 PCS

UV Machine  Dimension:

2020×550×1200mm

2020*650*1200mm

2020*750*1200mm

3020*850*1200mm

3020*950*1200mm

3020*1250*1200mm




 Free Fitting :
TWO pcs UV lamp(3KW)

Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 1.3
Gross Weight ---250KG
Main Parts--  2 PCS UV lamps 3KW per pcs
Application area--UV PRINTER ,UV GLUE, UV DRYING ,UV CURING
