Flat precision screen printing machine with vacuum table

Model:LC-6090PVP
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Flat screen printer , Silk screen printer , Vacuum table printer
Price: US $6599 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:17 Jan, 2023

Product Description

Structure:

Working table   Vacuum working table Size:      700*1000mm
Actions   Up-down of screen plate
To be printed    Plain objects
Squeegee stroke    Adjust the Limited switch
Squeegee and screen plate control  High precision linear guideway

 Usage and characters:

Guide

· Fit printing soft and thin products such as paper, plastics film etc;

· With vacuum working table ensure adsorbing object when printing;

· Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;

· Also widely used in Glass plate, Machine panel screen printing; With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;

· Suitable for printing sheet-fed adhesiving sticker;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

· High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

· Widely used in Glass printing field;

· With UV curing machine, Can finish many UV special printing process for UV package industry.

· Suitable for printing Mobile windows ;

· Suitable for printing water transfer label and heat transfer label through diffrent process;

· The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

Function

· High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;

· Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;

· Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

· Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

· Screen forme Clamping device free to adjust to fit different sizes of screen;

· Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

· Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

· Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

· Microcomputer program control operations;

· 4-Digit auto counter; to facilitate the measurement of production efficiency.

Parameters:



LC-6090PVP

LC-70100PVP

· Printing high:50mm;

· Air :45Liter/Min;

· Working table dimension:700*1000mm;

· Max Frame dimension: 950*1200mm;

· Max printing area:600*900mm;

· Max printing speed:800PCS/h ;

· Max Stroke of up-and-down frame:200mm;

· Max stroke of Squeegee:800mm;

· Squeegee motor wattage: 200W;

· Table Precision: +-0.03mm.

· Printing high:50mm;

· Air :45Liter/Min;

· Working table dimension:800*1100mm;

· Max Frame dimension: 950*1350mm;

· Max printing area:700*1000mm;

· Max printing speed:700PCS/hr ;

· Max Stroke of up-and-down frame:200mm;

· Max stroke of Squeegee:1000mm;

· Squeegee motor wattage: 200W;

· Table Precision: +-0.03mm.

· 110V-220V Power supply;

· 5-7Barcompress air;

· Package dimension: 1510*1260*1830mm

· Gross weight: 661kg;

· CBM: 3.8512


Product Image

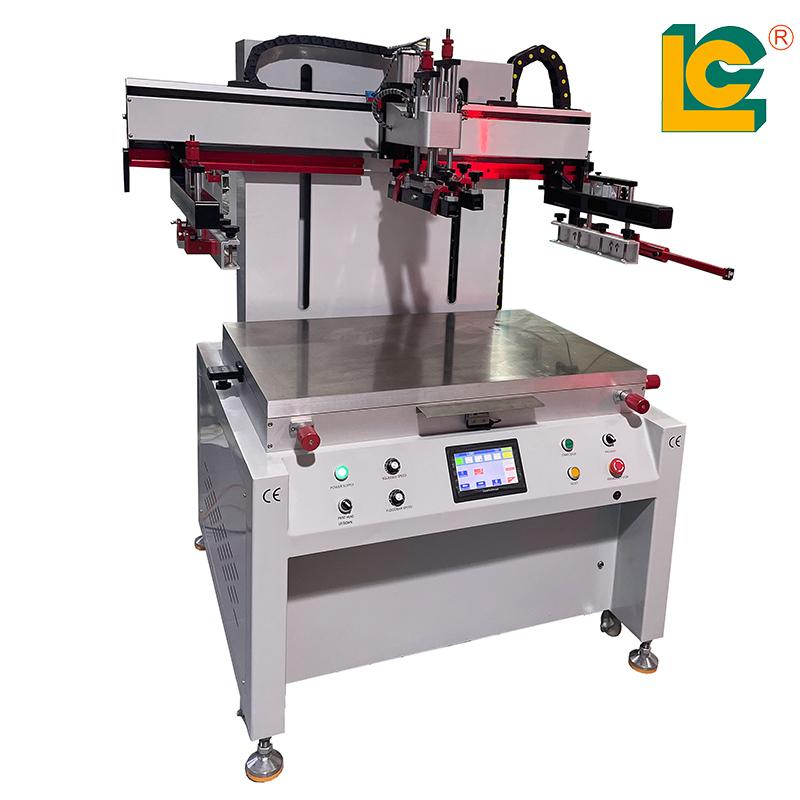

Flat precision screen printing machine with vacuum table 1
Img 1
Flat precision screen printing machine with vacuum table 2
Img 2
Flat precision screen printing machine with vacuum table 3
Img 3
Flat precision screen printing machine with vacuum table 4
Img 4
Flat precision screen printing machine with vacuum table 5
Img 5
