Model: | S500-DT |
---|---|
Brand: | GRAIGAR |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Thermometers |
Label: | Huato S500-DT , Temperature , Monitor Recorder |
Price: |
US $145
/ pc
|
Min. Order: | 1 pc |

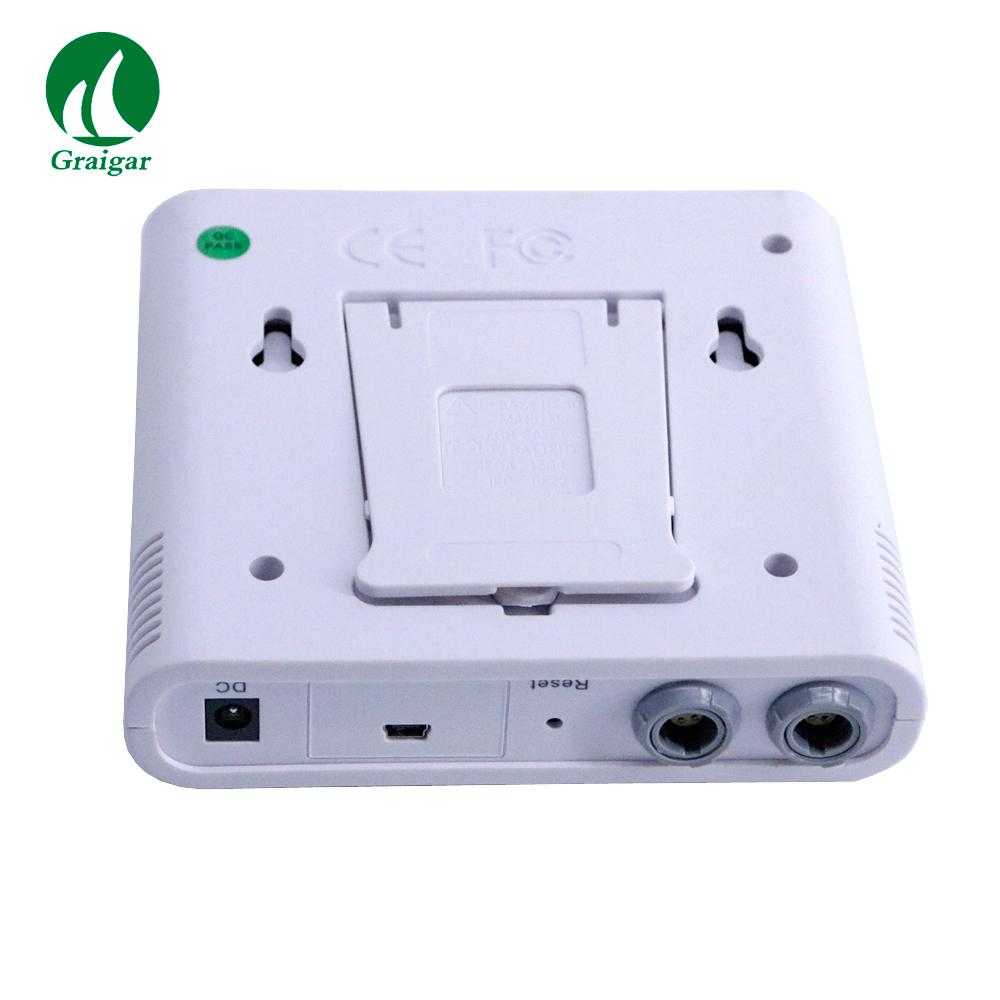

Huato S500-DT Alarm Temperature Data Logger
Introduction
S500 alarm temperature data logger developed by HUATO company . This series logger featured with large LCD display, elegant appearance and hight precision, all the sensors are produced in America, which assures duality and stability.
Features:
Large LCD display temperature , number of data stored as well as time simultaneously.
USB interface, download data to PC via USB cable.
Original sensor imported from America
Automatic Record function, mass storage function: 4,3000
Built-in sound & light alarm, when the data exceed the limit that user set up, device will alarm.
Easy to operate, can be placed on dexk or mounted on wall.
MAX/MIN function key to show the maximum/minimum value
Dimensions: 135mm * 124mm * 35mm(5.31"*4.88"*1.37inch)
LCD size: 97mm * 78mm(3.81"*1.37")
Deviation can calibrate the instrument.
Applications
Widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.
Temperature Data Logger Model list | ||||||||
Model | S500-ET | S500-DT | S500-EPT | S500-DPT | S520-ET | S520-DT | S520-EPT | S520-EPT |
Temperature Accuracy | plusmn0.5℃ | plusmn0.3℃ | ||||||
Temperature Measurement Range | -40~+85℃ | -100~+100℃ | -40~+85℃ | -100~+100℃ | ||||
Sensor type | External | External PT100 | External | External PT100 | ||||
Sensor quantity | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
Channel | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
Resolution | 0.1degC | |||||||
Automatic Recording Capacity | 43,000 | |||||||
Battery | 9V Block Battery *1(NOT INCLUDED) | |||||||
Weight | 380g | |||||||
Standard Accessories | user manual,USB cable, software, screw | |||||||
Optional Accessories | AC-DC adapter, printer,external sound & light alarm |
