| Model: | TM-188 |
|---|---|
| Brand: | Tenmars |
| Origin: | Made In Taiwan, China |
| Category: | Electronics & Electricity / Electronic Instrument / Thermometers |
| Label: | Tenmars TM-188 , WBGT Meter , Dew Point Tester |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
Product Information:

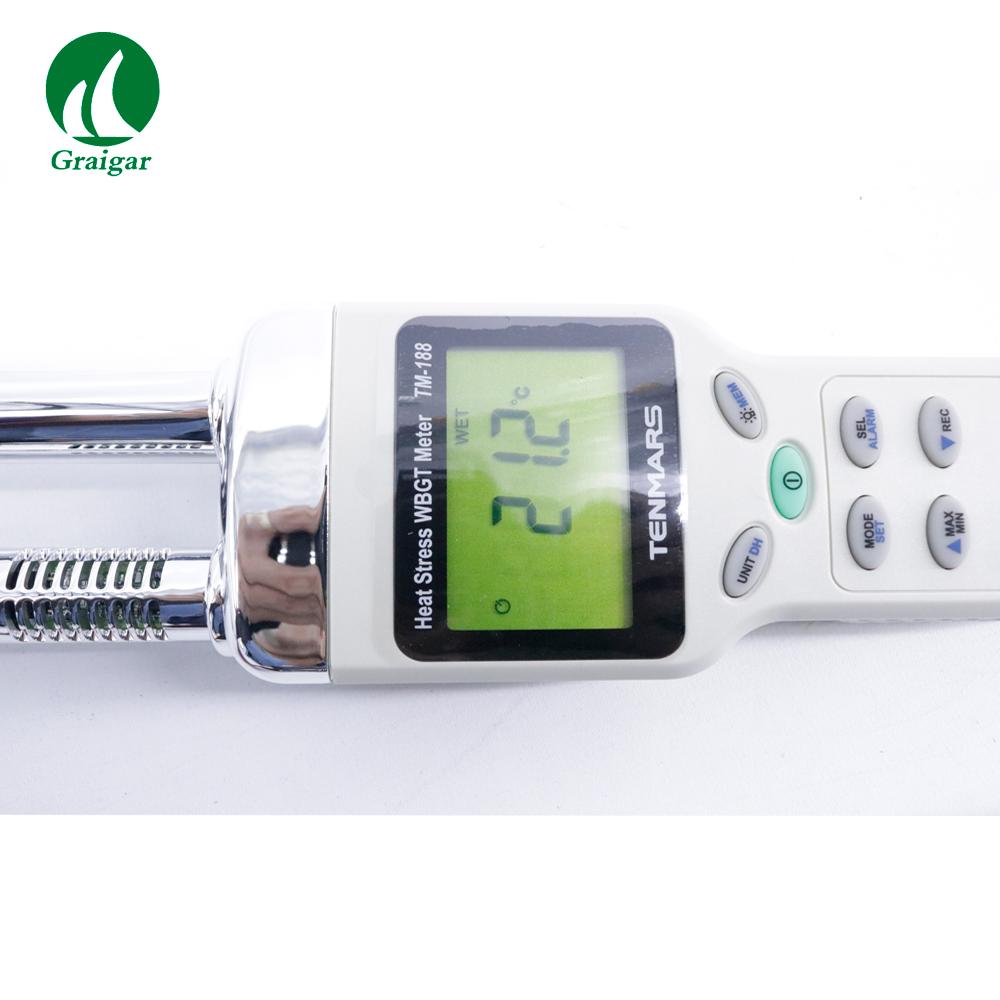

1- Quick-response capacitance sensor, accurate measurement for wet bulb globe temperature(WBGT), black globe temperature(TG), humidity(%RH), air temperature(TA), wet bulb(WET) and dew point(DEW).
2- Max/Min and data hold.
3- Low battery indication.
4- LCD display with LED backlight.
5- Viewing data records.
6- Switch the temperature unit to °C or °F.
7- Brass black ball in 50mm diameter.
8- WBGT alarm setting.
9- Auto power off with disable function.
Application:
1.The HEAT STRESS WBGT METER is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight.
2.This instrument is ideal for the athletic trainers, military, occupational (Industrial) hygienists, outdoor worker and the sports medicine specialists; and it's designed according to the regulations mentioned below.
In order to measure the WBGT index, you should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the heat stress on working man.
ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
OSHA : Occupational Safety and Health Administration.
JISHA : Japan Industrial Safety and Health Association.
Air temperature (TA):
|
Unit |
Range |
Resolution |
Accuracy @15~40°C |
|
°C |
0~50.0 |
0.1 |
±0.8 |
|
°F |
32.0~122.0 |
0.1 |
±1.5 |
Black globe temperature (TG):
|
Unit |
Range |
Resolution |
Accuracy @15~40°C |
|
°C |
0~80.0 |
0.1 |
±0.6 |
|
°F |
32.0~176.0 |
0.1 |
±1.1 |
Relative Humidity (%RH):
|
Measurement Range |
1%~99% |
|
Accuracy |
±3.0%RH(20~80%) ±5.0%RH(80%) |
|
Resolution |
0.1% |
Dew point temperature (DEW):
|
Unit |
Range |
Resolution |
|
°C |
-35.3~48.9 |
0.1 |
|
°F |
-31.5~120.1 |
0.1 |
|
The value is calculated from the RH and Air temperature. |
||
Wet bulb temperature (WET):
|
Unit |
Range |
Resolution |
|
°C |
-21.6~50.0 |
0.1 |
|
°F |
-6.9~122.0 |
0.1 |
|
The value is calculated from the RH and air temperature. |
||
1- Dimension : 300 X 70 X 50mm (L X W X H)
2- Weight : 220g. (Without batteries).

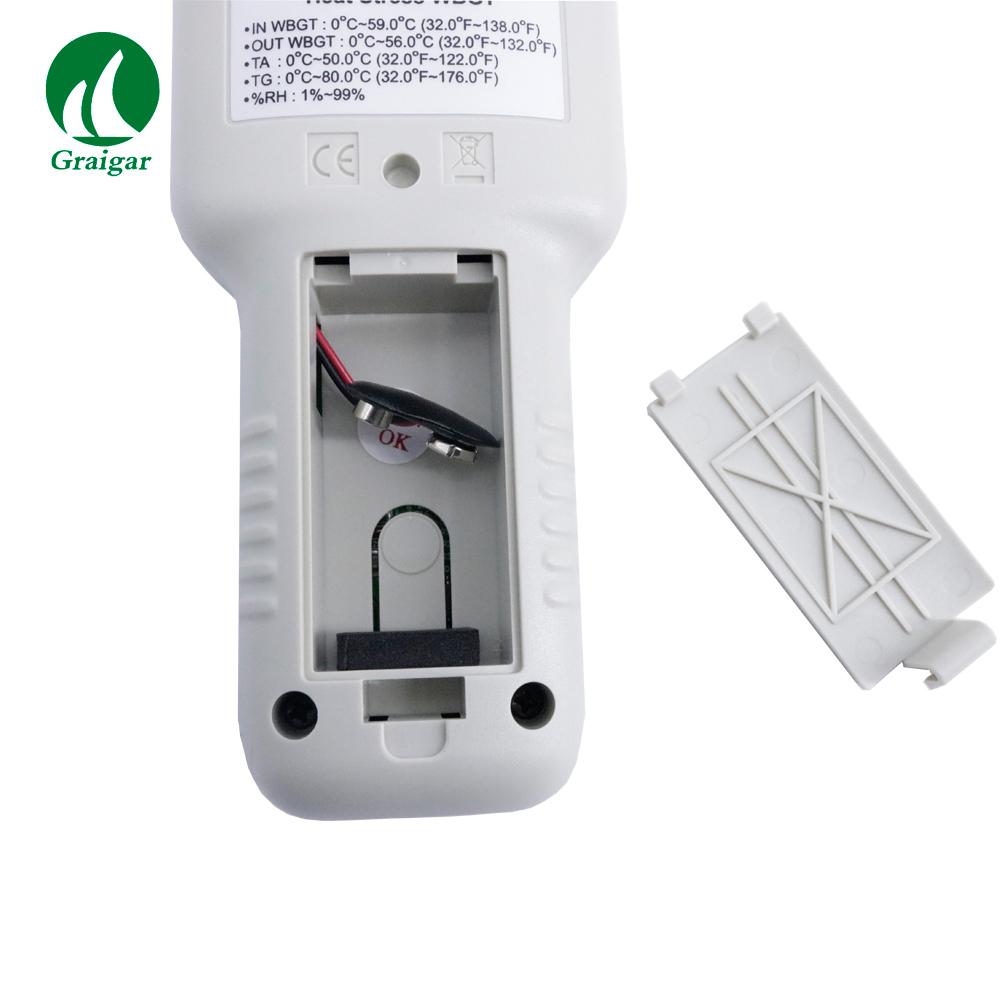

3- Power supply : 006P 9V(Not include) ,or AC100~240V DC 9V/ 0.5A(9mm).
4- Battery life : 200 hours.
5- Operating Temperature & Humidity :0°C to +50°C.
6- Storage temperature & humidity : -10°C to +50°C .
7- LCD: 52mm(W)X36mm(L) monochrome LCD and backlight.

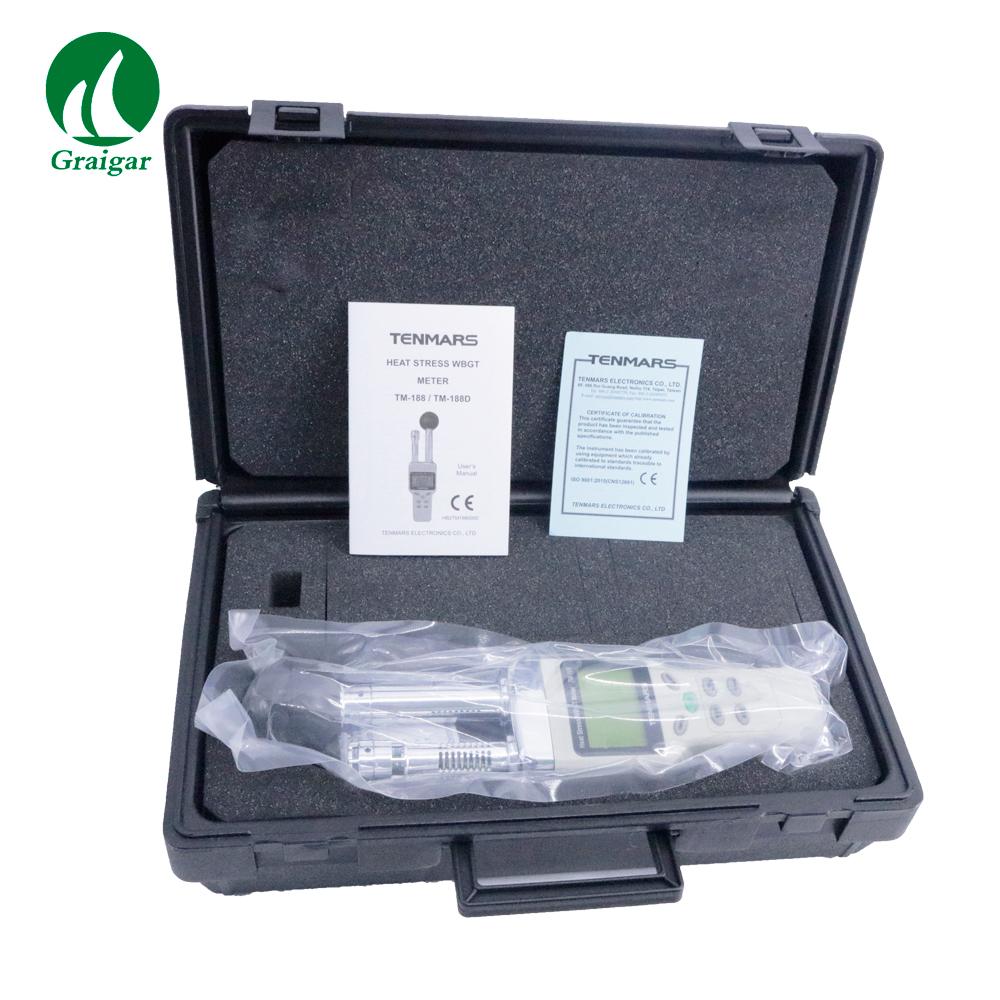

The package has no battery.
