AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder AT4524

Model:AT4524
Brand:GRAIGAR
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Thermometers
Label:24 Channels , Temperature Recorder , AT4524
Price: US $750 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:19 Sep, 2022

Product Description

AT4524 24 Channels Thermocouple Temperature Recorder with TFT True Color LCD Display



Introduction:

The AT4524 is easy to set up and reconfigure from the front panel. AT4308 has bi-directional communication via RS-232C, which enables control from a host computer.
The AT4524 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget.
AT4524 is tested to stringent shock and vibration standards. AT4508 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital





Feature:
-Scan speed: Fast/Med/Slow
-Cold Junction Compensation
-TFT True Color LCD Display.
-Interface: RS232C and USB Slaver Interface
-USB-Disk Interface





Application:
-Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.



Specification:
Graduation thermocouple type: J/K/T/E/S/N/B
Accuracy 0.2%+1ºC
Range -200ºC~1300ºC(Varying depend on graduation)
Resolution 0.1ºC
Channels 24 channels; 128 channels are available
Speed Fast: 100ms/channel Medium: 500ms/channel Low: 1s/channel
Correction Error correct for each channel
Comparator High/low beep Individual setting high/low value for each channel
Interface RS232C interface U-disc interface USB communication interface
  ATS45 data acquisition software
Cold Junction Accuracy: 0.5ºC
Other TFT-LCD True-color LCD display.broken thermocouple check function
Power Supply Voltage:85VAC-260VAC Frequency:50Hz/60Hz Power:10VA
Dimension & Weight 216mm(Width)x88mm(Height)x300mm(Depth) 3kg
Accessories K thermocouple 24 teams(2m/team) ATS45 data acquistion software

Product Image

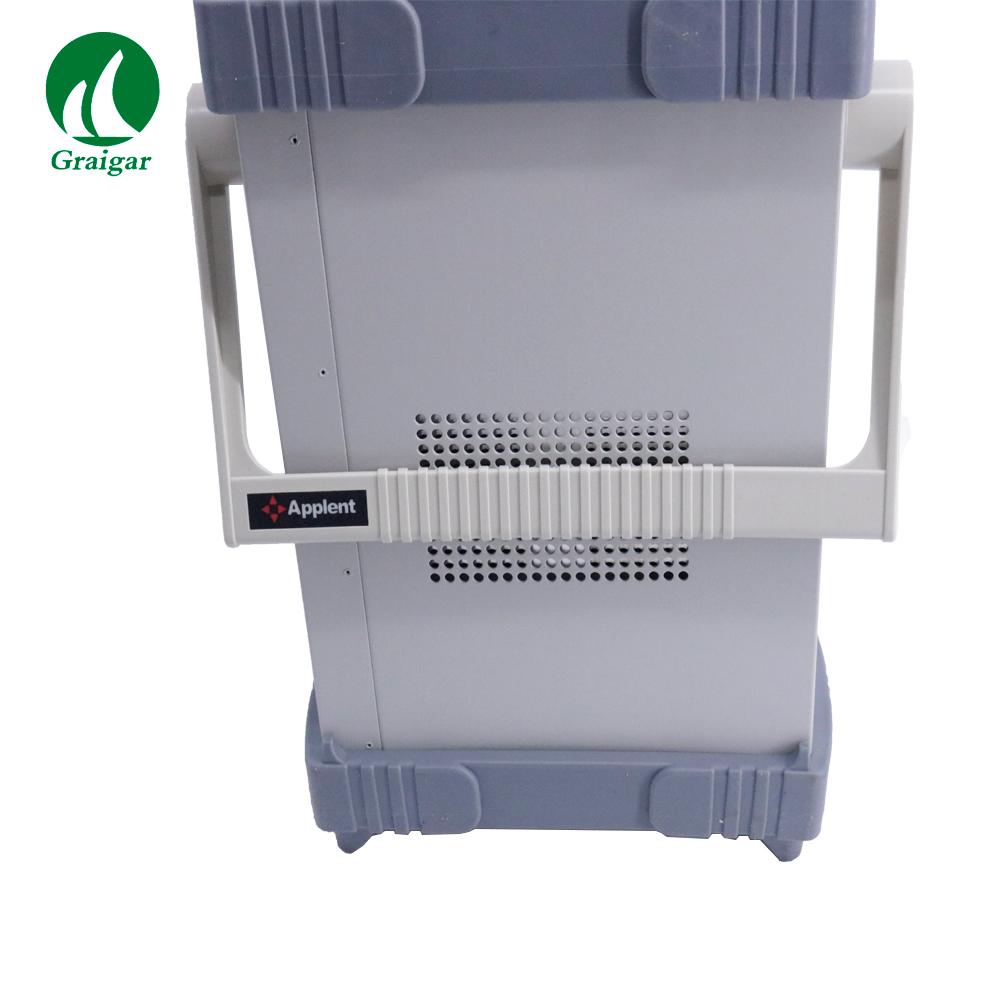

 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  1
Img 1
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  2
Img 2
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  3
Img 3
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  4
Img 4
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  5
Img 5
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  6
Img 6
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  7
Img 7
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  8
Img 8
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  9
Img 9
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  10
Img 10
 AT-4524 24 Channels Thermocouple Temperature Data Logger Recorder  AT4524  11
Img 11
