AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232

Model:AT4532
Brand:GRAIGAR
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Thermometers
Label:AT4532 , Industrial Thermocou , Temperature Meter
Price: US $716 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:19 Sep, 2022

Product Description

AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Temperature Data Recorder USB-Disk Interface



Introduction



AT4532 is easy to set up and reconfigure from the front panel. AT4532 has bi-directional communication via RS-232C, which enables control from a host computer.

The AT4532 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget.
AT4532 is tested to stringent shock and vibration standards. AT4532 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital circuitry.




Feature:

-Scan speed: Fast/Med/Slow

-Cold Junction Compensation
-TFT True Color LCD Display.
-Interface: RS232C and USB Slaver Interface
-USB-Disk Interface



Application:
-Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.





Specification:

Graduation

thermocouple: J/K/T/E/S/N/B

Accuracy

0.2%+1ordmC

Range

-200ordmC~1300ordmC(Varying depend on graduation)

Resolution

0.1ordmC

Channels

32 channels; 128 channels are available

Speed

Fast:100ms/channel Medium:500ms/channel Low:s/channel

Correction

Error correct for each channel

Comparator

High/low beep Individual setting high/low value for each channel

Interface

RS232C interface U-disc interface USB communication interface

Soft

ATS45 data acquisition software

Cold junction compensation

Accuracy:0.5ordmC

Other

TFT-LCD True-color LCD display,broken thermocouple checking function

Power Supply

Voltage:85VAC-260VAC Frequency:50Hz/60Hz Power:10VA

Dimension & Weight

216mm(Width)x88mm(Height)x300mm(Depth) 3kg

Accessories

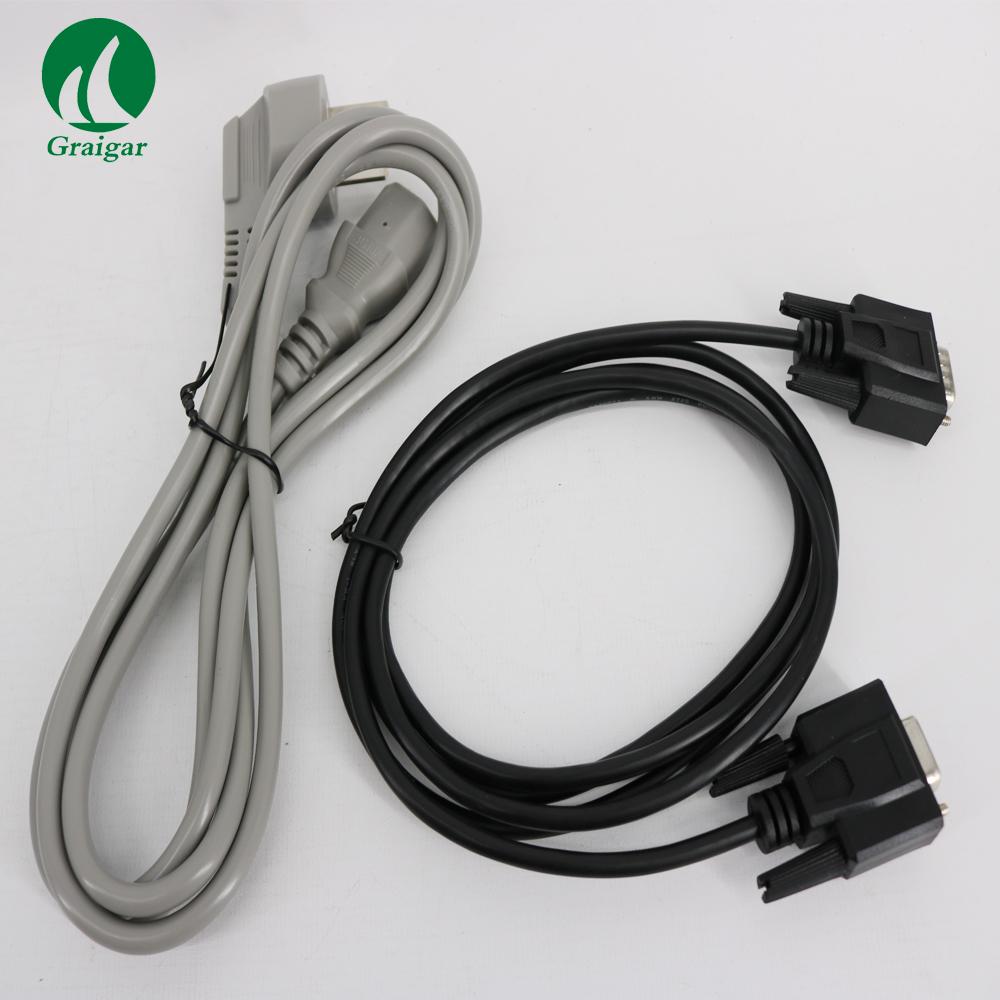

AT4532: K thermocouple 32 teams(2m/team) ATS45 data acquistion software


Product Image

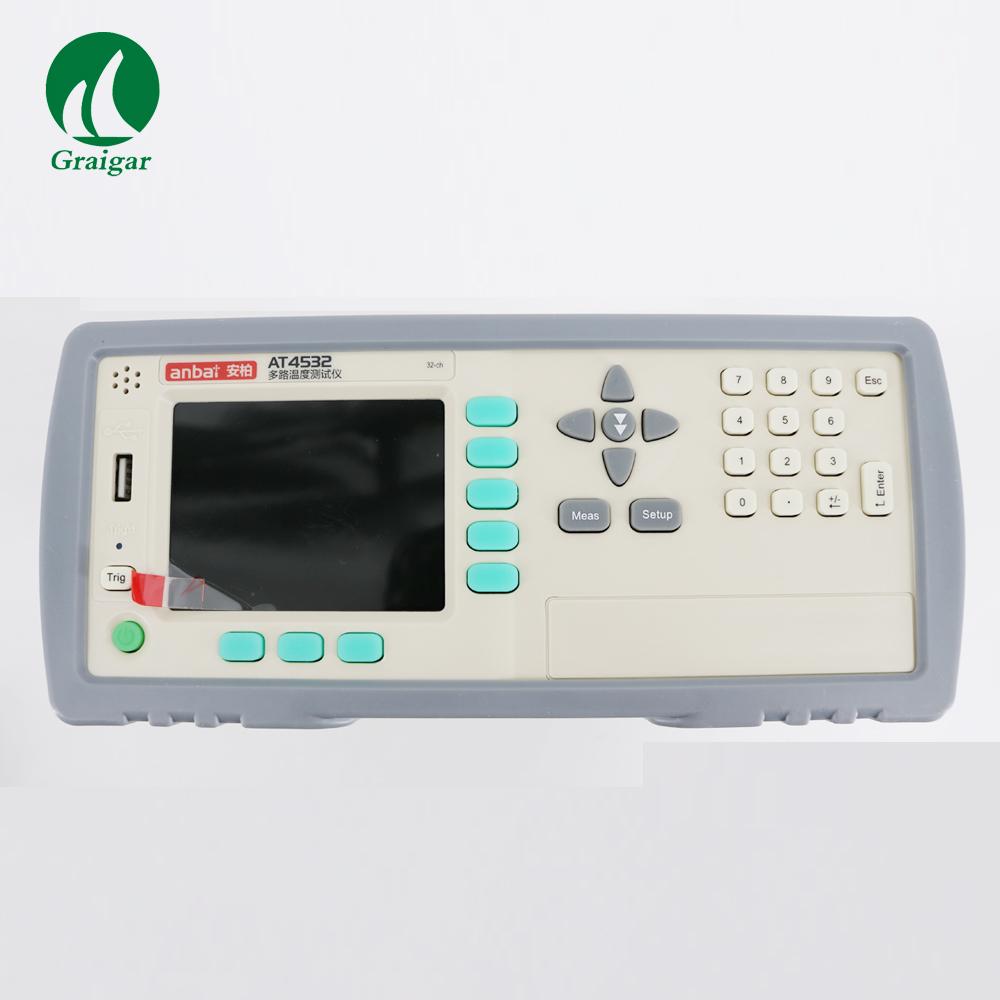

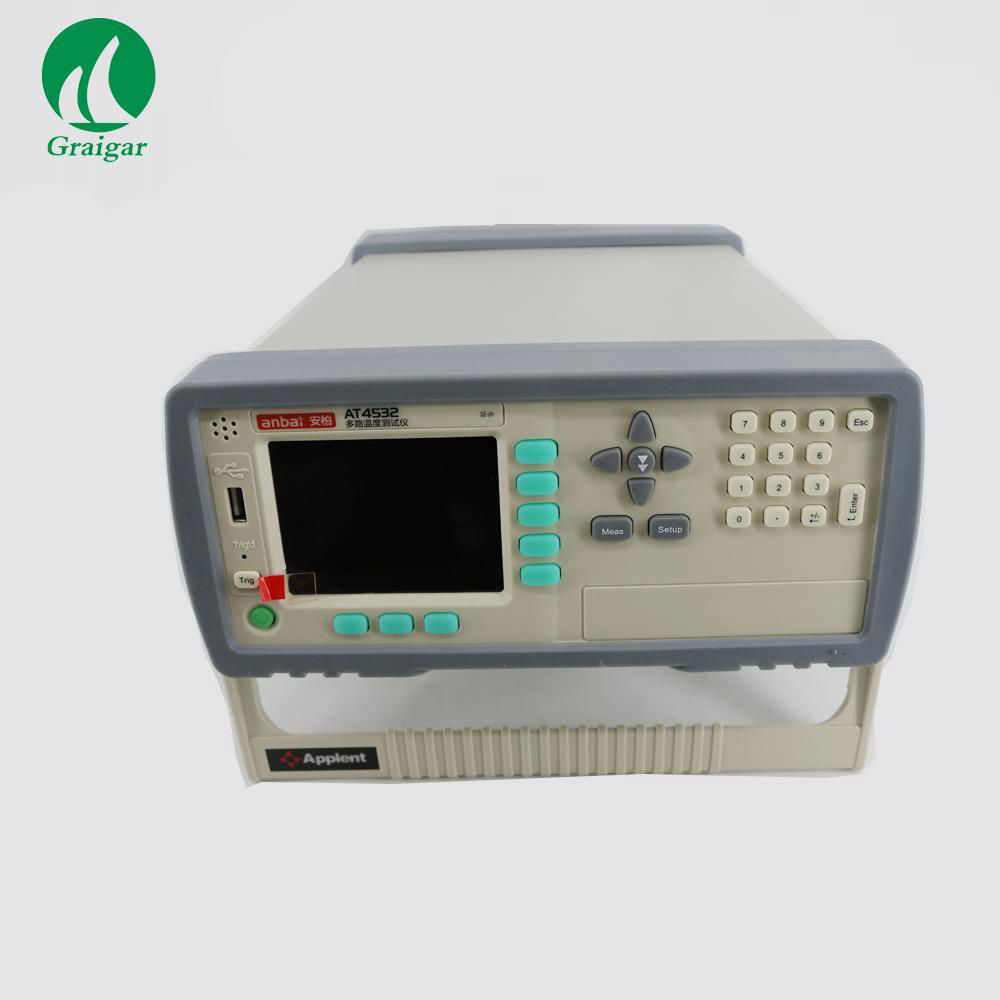

AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 1
Img 1
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 2
Img 2
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 3
Img 3
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 4
Img 4
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 5
Img 5
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 6
Img 6
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 7
Img 7
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 8
Img 8
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 9
Img 9
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 10
Img 10
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 11
Img 11
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 12
Img 12
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 13
Img 13
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 14
Img 14
AT4532 New 32 Channels Industrial Thermocouple Temperature Meter Contain RS232 15
Img 15
