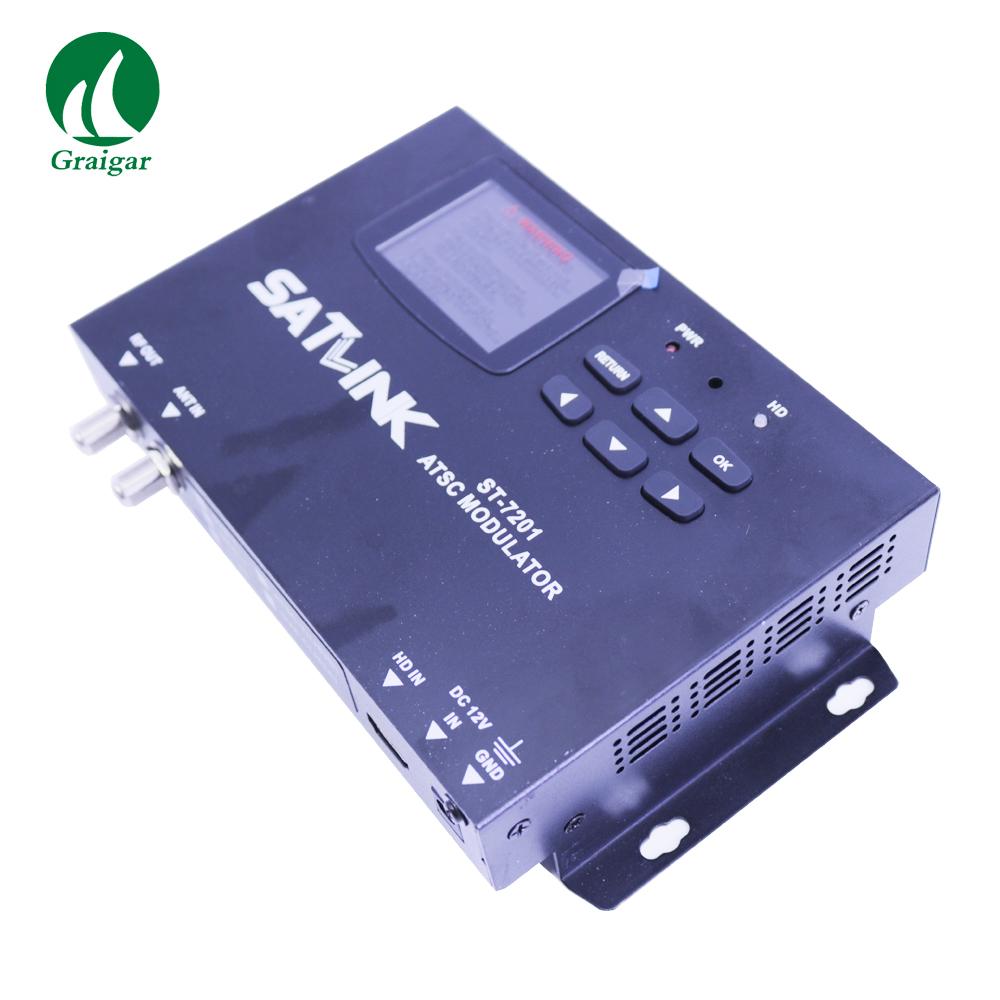

Satlink ST-7201 ATSC-T/ATSC-C HD Modulator Frequency Range: 50~860MHz ATSC Modulator Television modulator

FEATURES

•High level of integration, high-performance, Full-featured,

integrated design

•Single input modulator that converts HD source to a

ATSC-T/ATSC-C channel

•Standard COFDM modulation and MPEG-2 encoding

•Multiple video format compatibility including 576i(PAL) /

480i(NTSC) / 720P / 1080P

•Frequency range: 50~860MHz

•Continuously adjustable RF signal output level range from

69dBuV to 100dBuV, step 1dBuV

•Support modifying parameters via LAN port

•2.4-inch color LCD display

•Small size and light weight

•User friendly setup and control

•Compact and wall mountable

TECHNICAL SPECIFICATION

Modulator

Standard :ATSC-T/ATSC-C

Constellation :8-VSB (ATSC-T mode)

                      QAM-64/QAM-256 (ATSC-C mode)

MER :35 dB

Frequency Range :50 ~ 860 MHz

Output Level :69 ~ 100 dBuV

Output Impedance :75Ω

HD Input

Compression :MPEG-2 - bitrate 5-15 Mb/s

Video Resolution :1920*1080_60P, 1920*1080_50P;

                             1920*1080_60i, 1920*1080_50i;

                             1280*720_60p, 1280*720_50P

Connector :HD

Video Output

Video Resolution :1920*1080_30P, 1920*1080_25P;

                             1920*1080_30i, 1920*1080_25i;

                             1280*720_30p, 1280*720_25P

General

Power Source :DC 12V / 1.5A

OperatingTemperature :0 ~ +45°C

Dimensions :155mm(L) × 114mm(W) × 33mm(H)

Weight :0.34Kg
