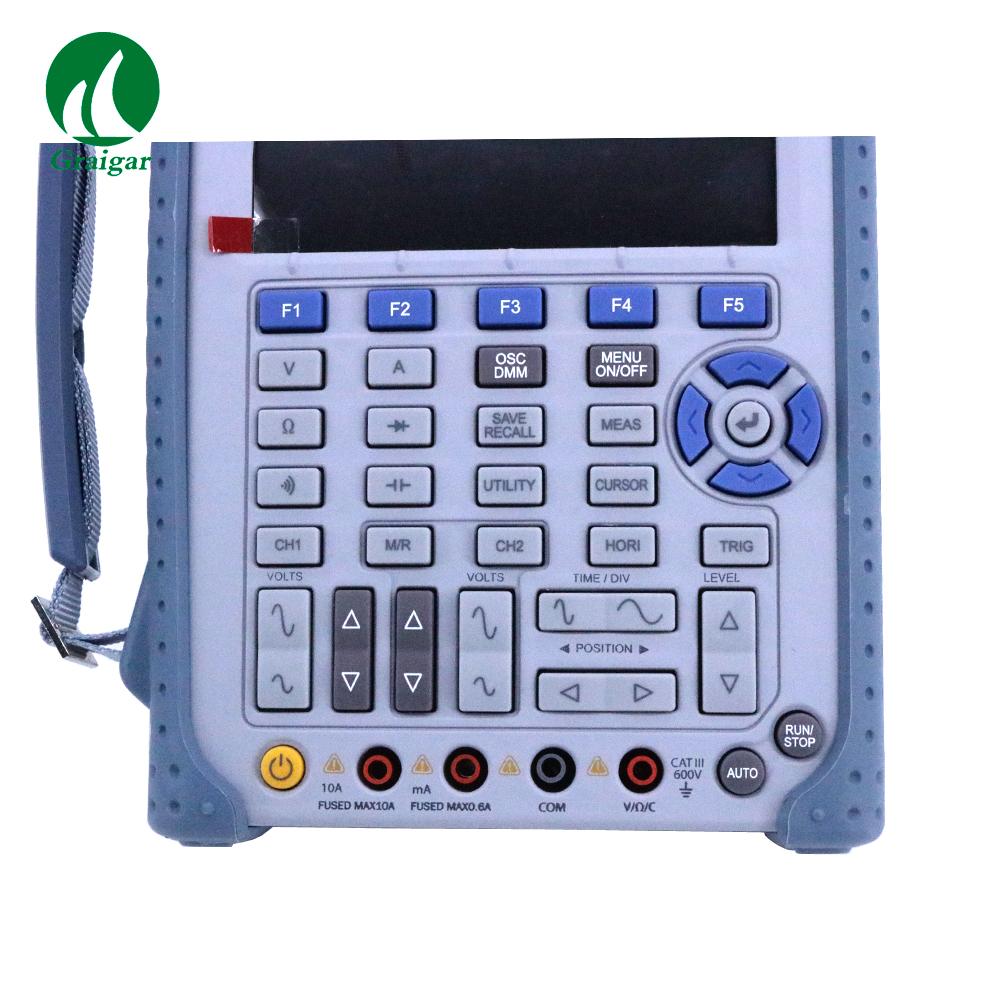

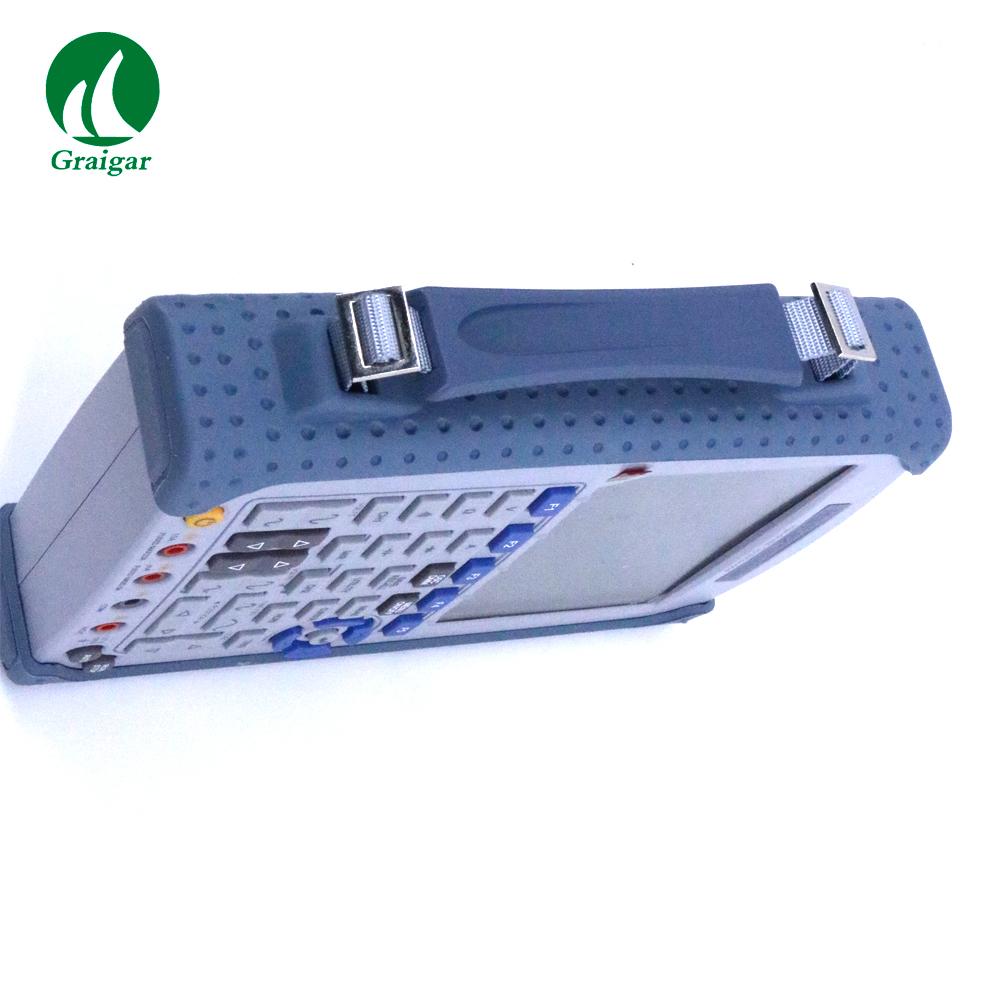

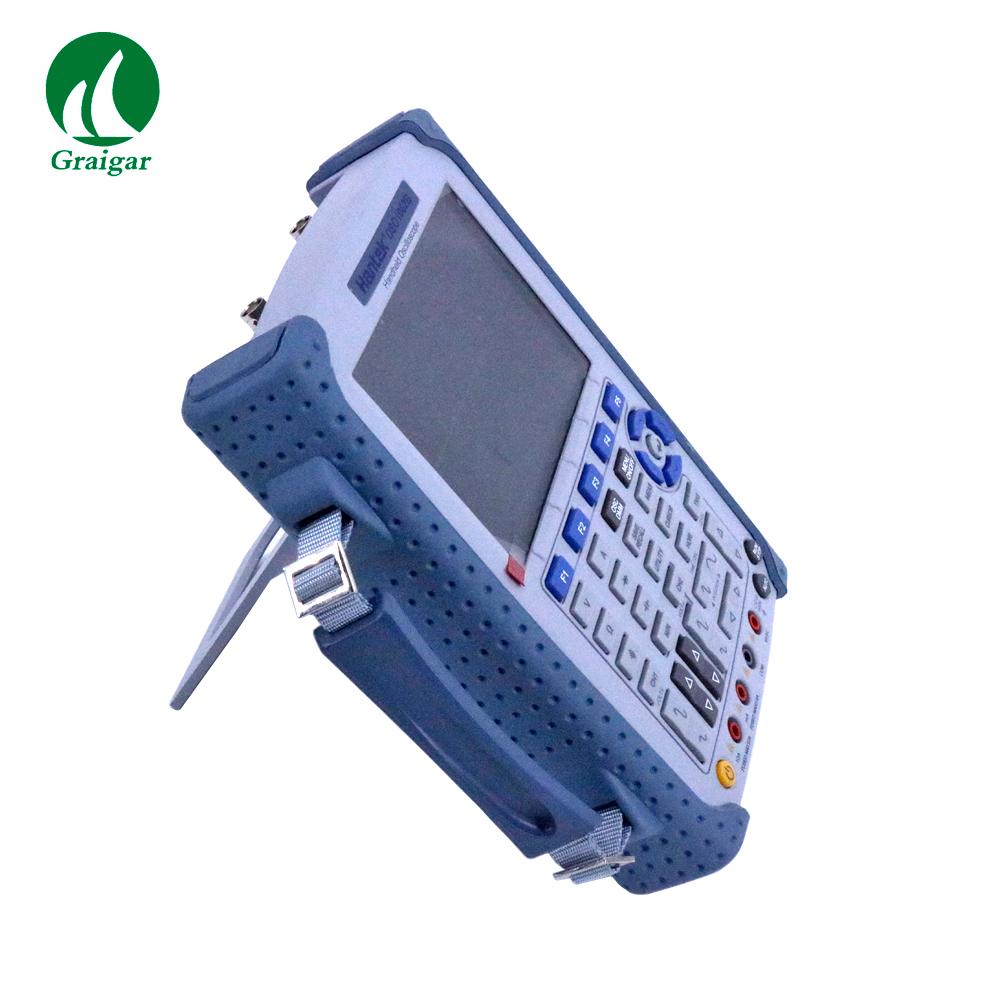

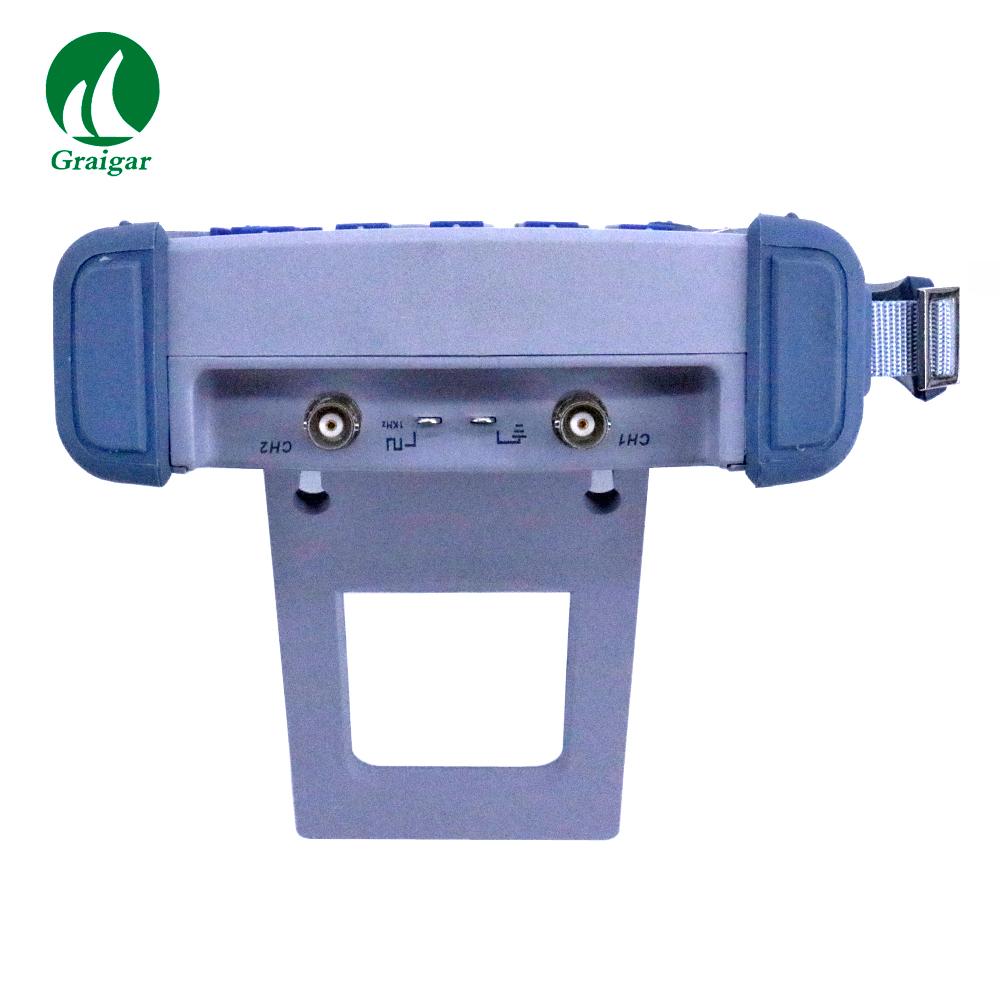

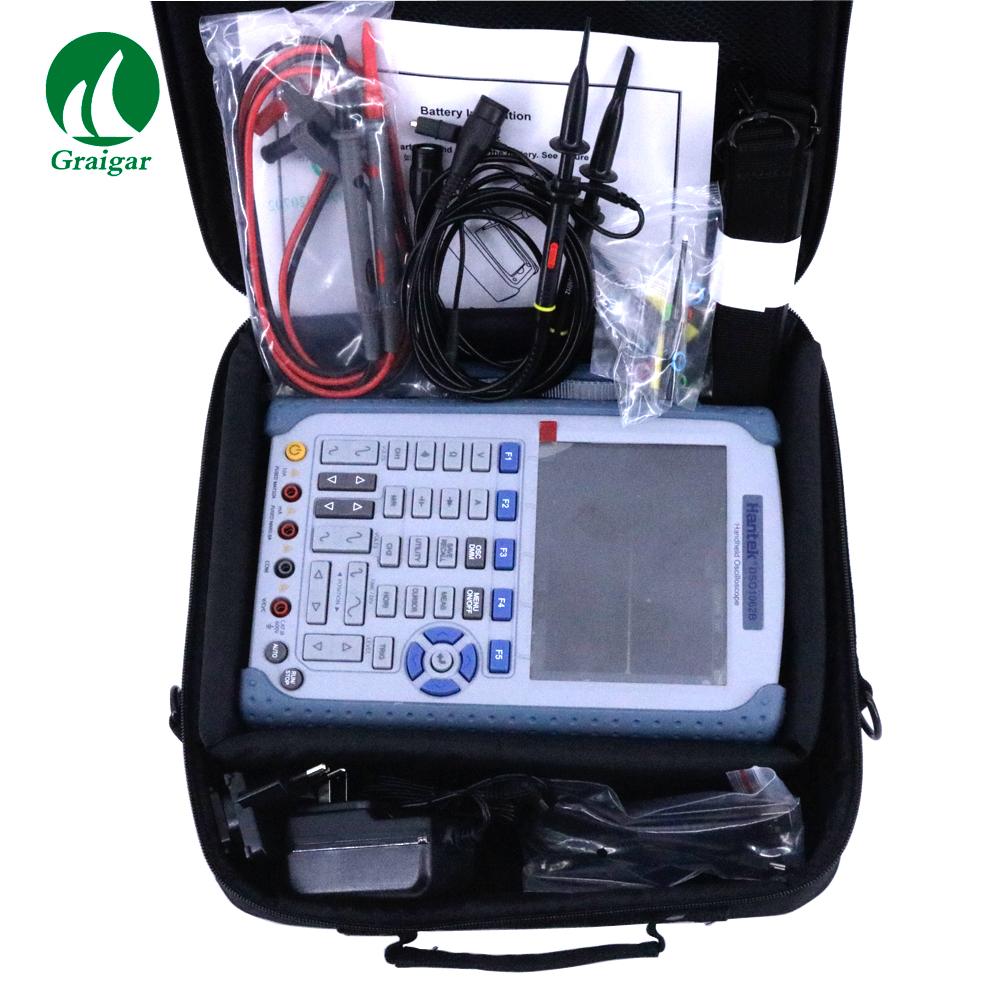

| Model: | DSO-1062B |
|---|---|
| Brand: | GRAIGAR |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | scopemeter , Oscilloscope , Multimeter DSO1062B |
| Price: |
US $300
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
Feature:
60MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
Automatic cursor tracking measurements.
XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass/Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.
Dimensions (mm): 240(L)x165(W)x50(H), be carried easily
Specificatons:
