Principle

F Magnetic Induction & NF Type Eddy Current

Range

0~2000µm/0~80mil

Resolution

0.1µm/1µm

Accuracy

±1~3%n or ±2.5µm

Min.Radius Workpiece

F Type:convex 1.5mm/concave 25mm

NF Type:convex 3mm/concave 50mm

Min.Measuring Area

6mm

Min.Sample Thickness

0.3mm

Metric/Imperial

√

Functions

Battery Indicator & Automatic Power Off

Data Memory

---------

Operating Conditions

Temperature:0~40ºC

Humidity:10~90%RH

Power Supply

4x1.5V AAA (UM-4)Battery

Dimensions

140x72x34mm

Weight

215g(Not Including Batteries)

The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

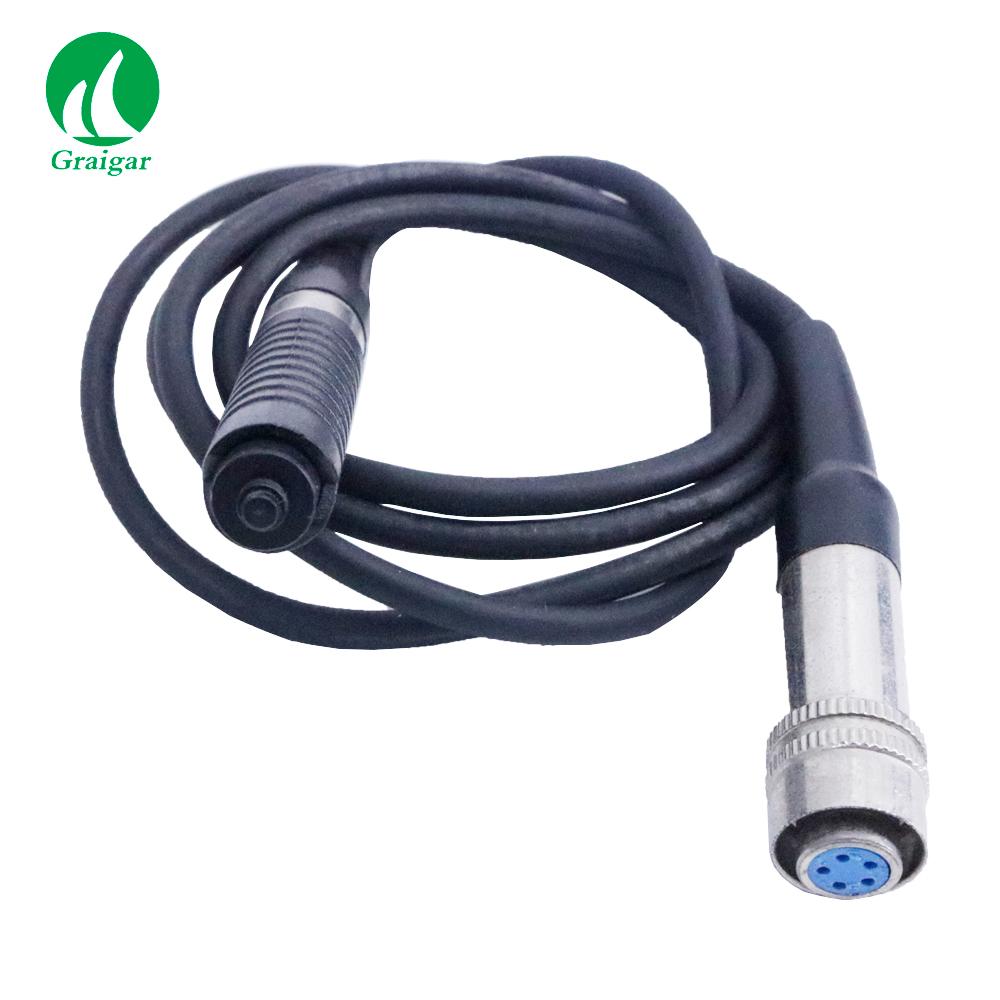

* Separate Type can provide several type probe, measure can be more flexibility.
