| Model: | VM6380-3 |
|---|---|
| Brand: | GRAIGAR |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Vibration Meter , 3 Transducers , VM6380-3 |
| Price: |
US $450
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
|
Sensor |
3 Piezoelectric Transducers |
|
|
Measuring Range |
Acceleration |
0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak |
|
Velocity |
0.01~400mm/s0.004~16.0inch/sTrue RMS |
|
|
Displacement |
0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak |
|
|
Frequency Range |
Acceleration |
10Hz~10kHz |
|
Velocity |
10Hz~1kHz |
|
|
Displacement |
10Hz~1kHz |
|
|
Accuracy |
5% of Reading+2 digits |
|
|
Operating Conditions |
Temperature |
0~50ºC |
|
Humidity |
<90%RH |
|
|
Power Supply |
4x1.5V AAA(UM-4)Battery |
|
|
Dimensions |
140x73x35mm |
|
|
Weight |
415g(Not Including Batteries) |
|
|

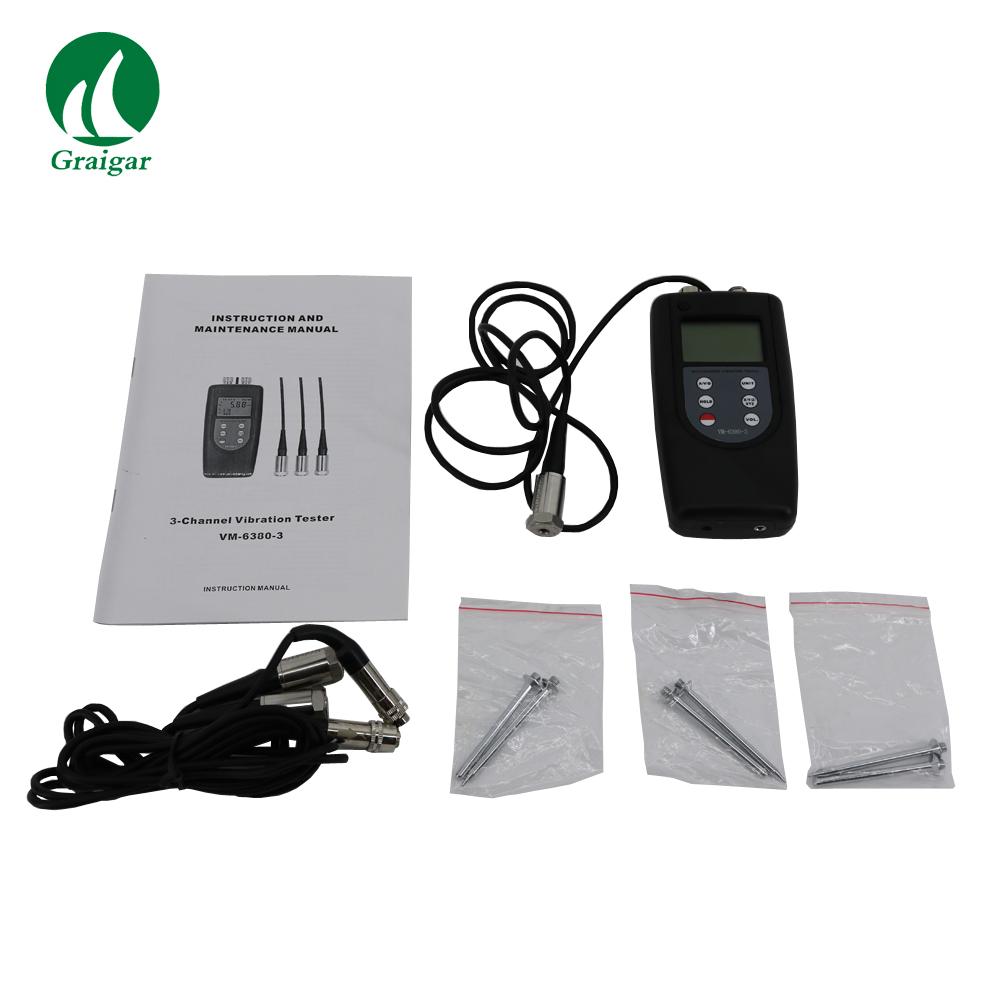

Standard Accessories |
Main Unit |
|
|
Piezoelectric Transducers |
||
|
Powerful Rare Earth Magnet |
||
|
Probe(Cone)&Probe(Spherical) |
||
|

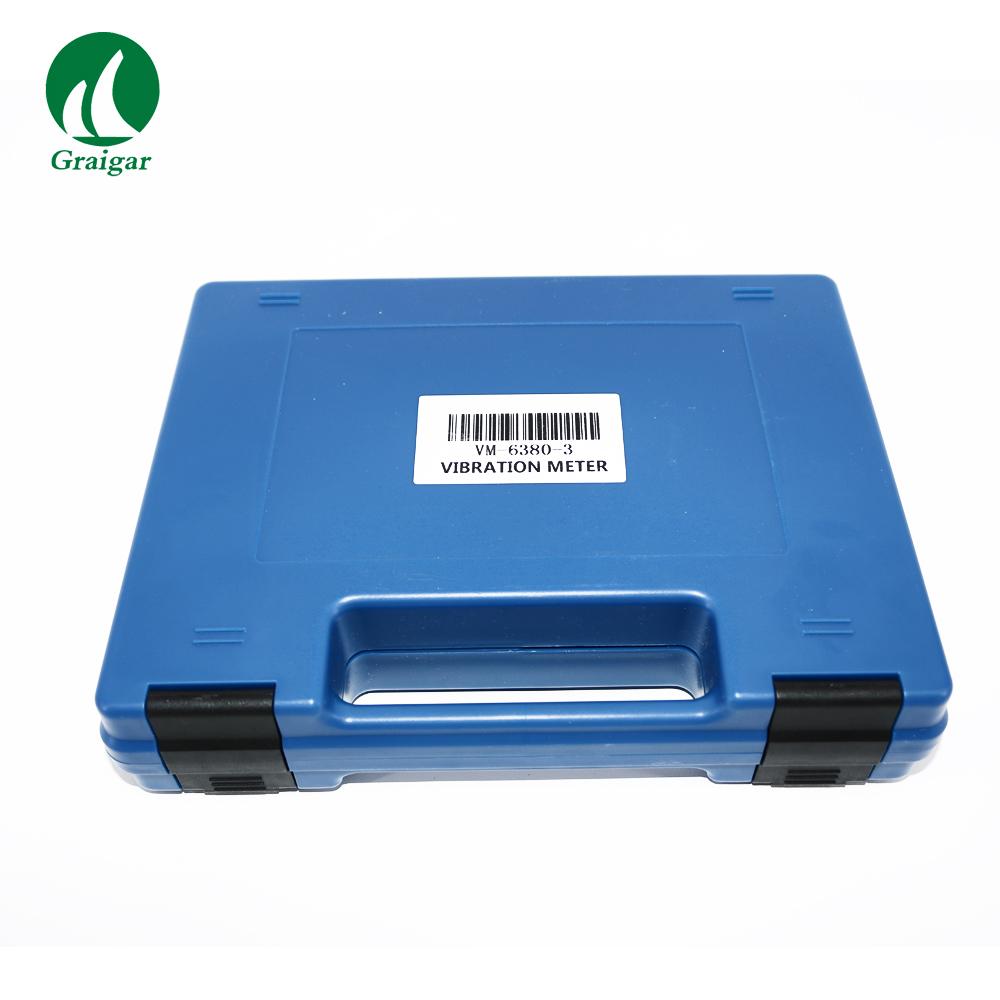

Carrying Case(B04) |
||
|
Manual Book |
||
|
Optional Accessories |
Headset |
|
|
RS-232C Data Cable with Software |
||
|
Bluetooth Data Adapter with Software |
||
Specifications
|
ISO/IS2373 Motor Quality Standard According As Vibration Velocity |
||||
|
Quality Rank |
Rev(rpm) |
H:high of shaft(mm)
|
||
|
80<H<132 |
132<H<225 |
225<H<400 |
||
|
Normal |
600~3600 |
1.8 |
2.8 |
4.5 |
|
Good(R) |
600~1800 |
0.71 |
1.12 |
1.8 |
|
1800~3600 |
1.12 |
1.8 |
2.8 |
|
|
Excellent(S) |
600~1800 |
0.45 |
0.71 |
1.12 |
|
1800~3600 |
0.71 |
1.12 |
1.8 |
|
Vibration Standard
* 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.(Optional)
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.(Optional)
* Provide Bluetooth data output choice.(Optional)
Features
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
VM-6380-3 Vibration Meter with 3 Piezoelectric Transducers
