MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement

Model:MHC-3000H+M1
Brand:GRAIGAR
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter
Label:Ultrasonic Flowmeter , Water Flow Meter , Portable Flowmeter
Price: US $300 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:19 Sep, 2022

Product Description

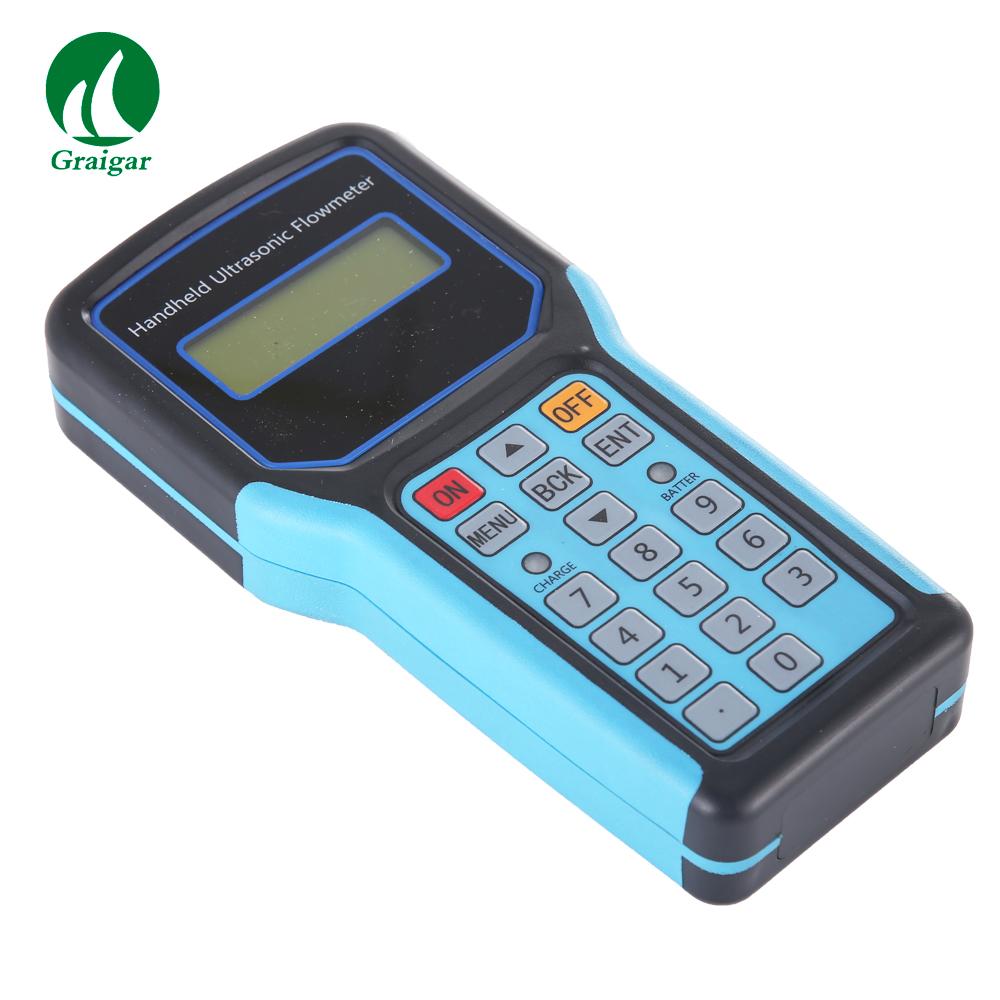

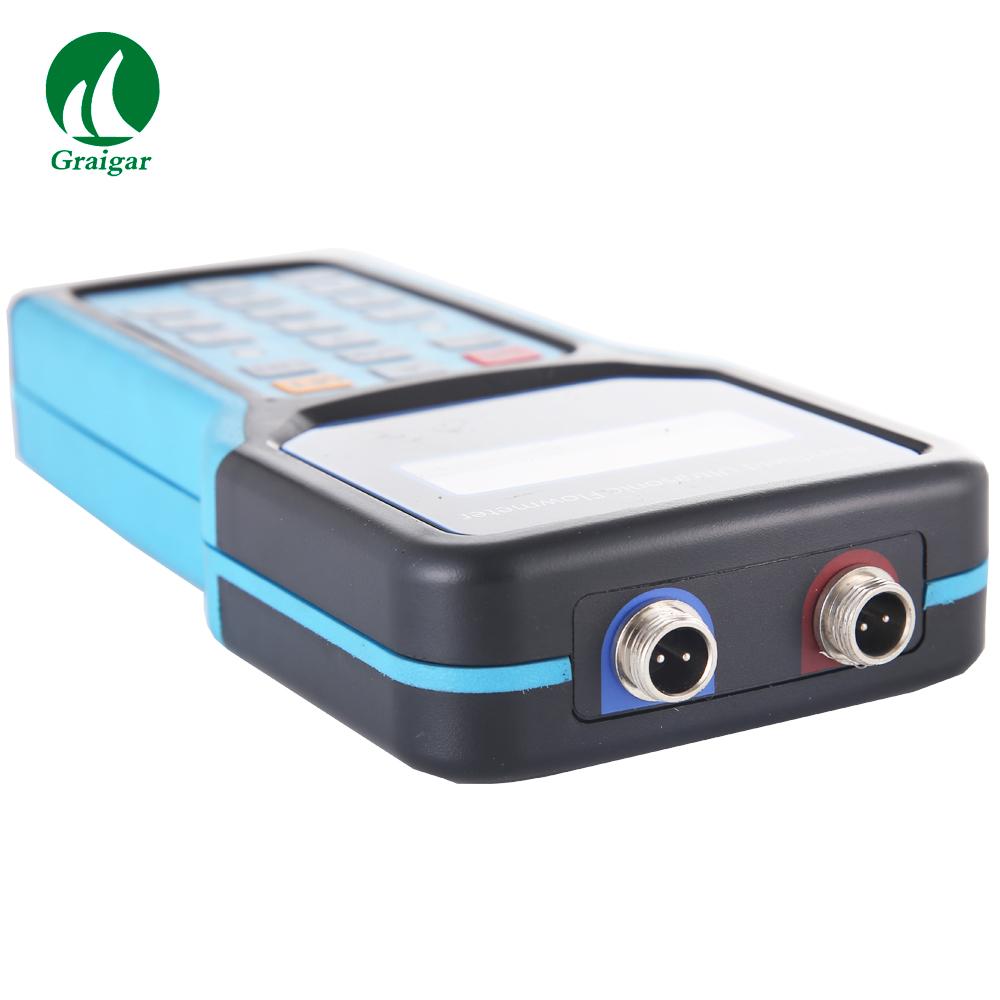

Hand-held ultrasonic flowmeter is designed to improve the convenience of flow measurement, small size, light weight, simply install the sensor in the pipe wall to complete the flow measurement, plus data storage SD card, to facilitate future upload data , Statistics, analysis and so on




Features:
Small size, light weight: the volume is only 231 * 118 * 95mm
Support multi-language menu: support, English, Italian and other languages

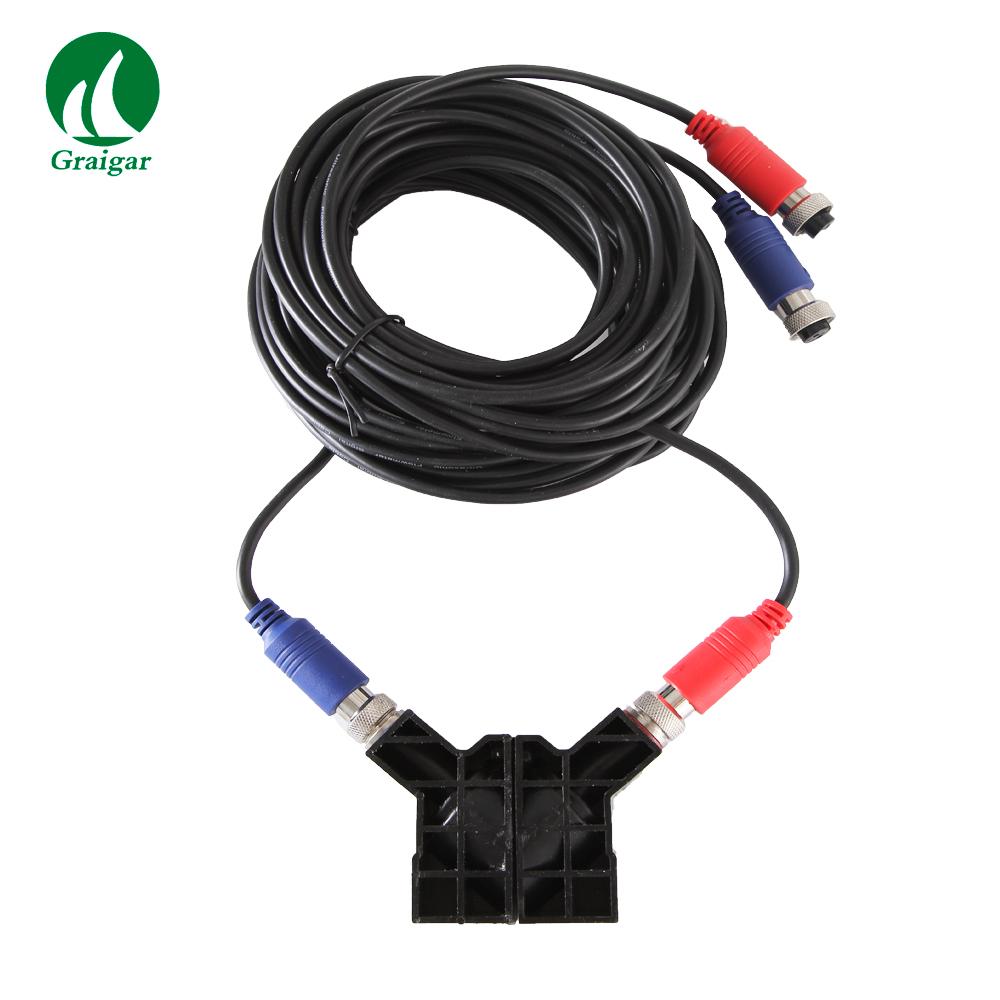

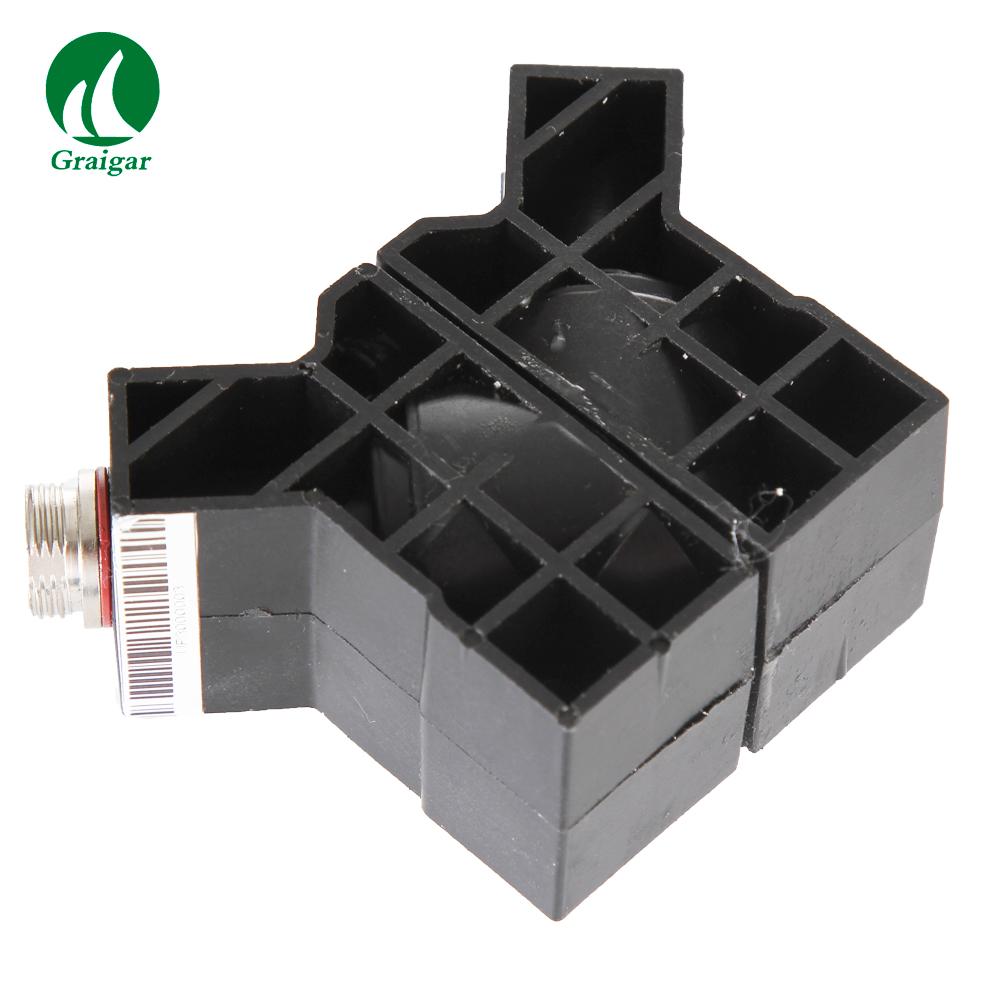

Non-contact measurement: with a magnetic ultrasonic flowmeter sensor adsorption in the pipe wall, you can complete the flow measurement
Wide range of measurement: the use of different types of sensors, can achieve caliber DN50 ~ DN700mm pipe flow measurement
Data recorded: external SD card data memory, can be set in advance of up to 20 more than the measurement results stored in the SD card
Powerful: can be upgraded to ultrasonic energy meter, to achieve heat / cold detection

Category

performance parameters

Host

Principle

Ultrasonic time difference principle, 4 bytes IEEE754 floating point operation

Accuracy

better than ± 1%

Display

Can be connected to 2 × 10 backlit characters or 2 × 20 character LCD display, support in the English, Italian three in that language

Data storage

external SD card data memory, mass storage, upload data and analysis, mapping, etc.

Pipe

Pipe material

Steel, stainless steel, cast iron, cement pipes, copper, PVC, aluminum, glass and other all-dense pipe, allowing a lining

Pipe diameter

50 ~ 700mm

Measuring medium

Type

Water, sea water, industrial sewage, acid and alkali, alcohol, beer, all kinds of oil can carry a single uniform ultrasonic liquid

Temperature

(-30--180) ℃ ultra-high temperature to be customized

Turbidity

10000ppm and the bubble content is small

Flow rate

0 ~ ± 10m / s

Working environment

Temperature

Host: -20 ~ 60 ℃; Flow sensor: -30 ~ 180 ℃

Humidity

Host: 85% RH; Flow sensor: can be flooded work, water depth ≤ 2m (Note: after the sensor filling)

Power supply

Built-in capacity of 2000mA charge Ni-MH battery, each time the full charge for more than 15 hours, the use of power adapter, can achieve uninterrupted measurement

Ying


Product Image

MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 1
Img 1
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 2
Img 2
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 3
Img 3
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 4
Img 4
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 5
Img 5
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 6
Img 6
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 7
Img 7
MHC-3000H Handheld Ultrasonic Flowmeter DN50 ~ DN700mm Pipe Flow Measurement 8
Img 8
